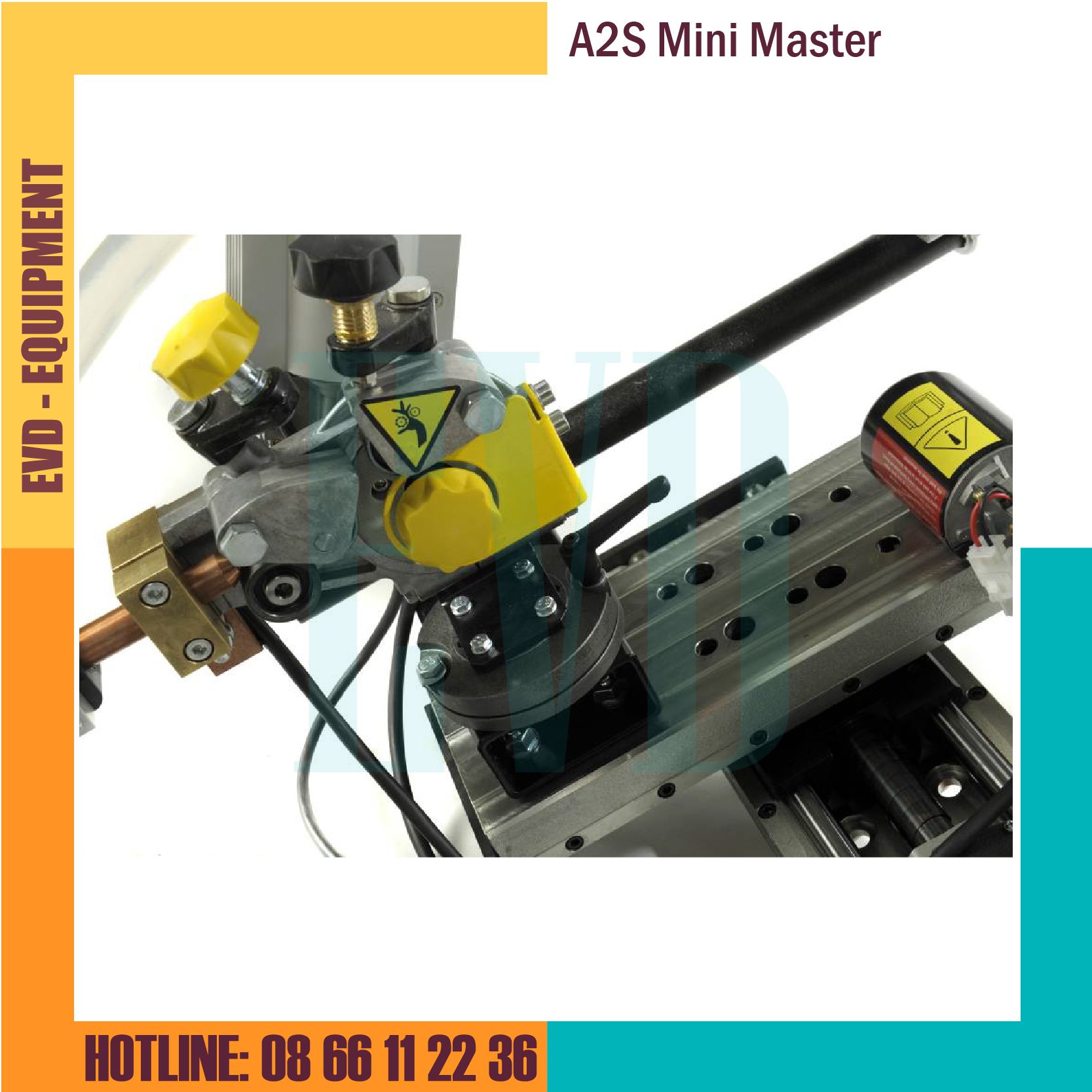

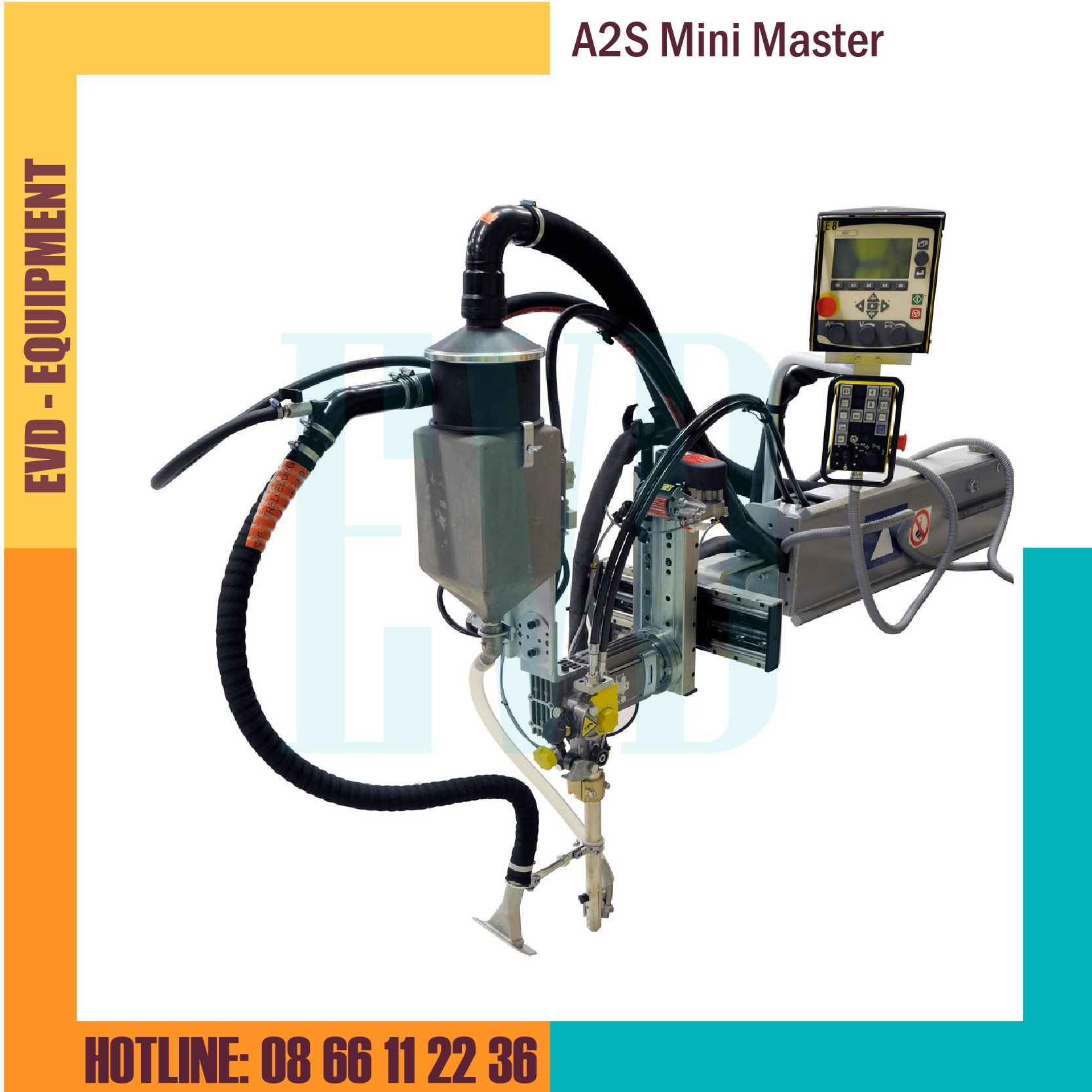

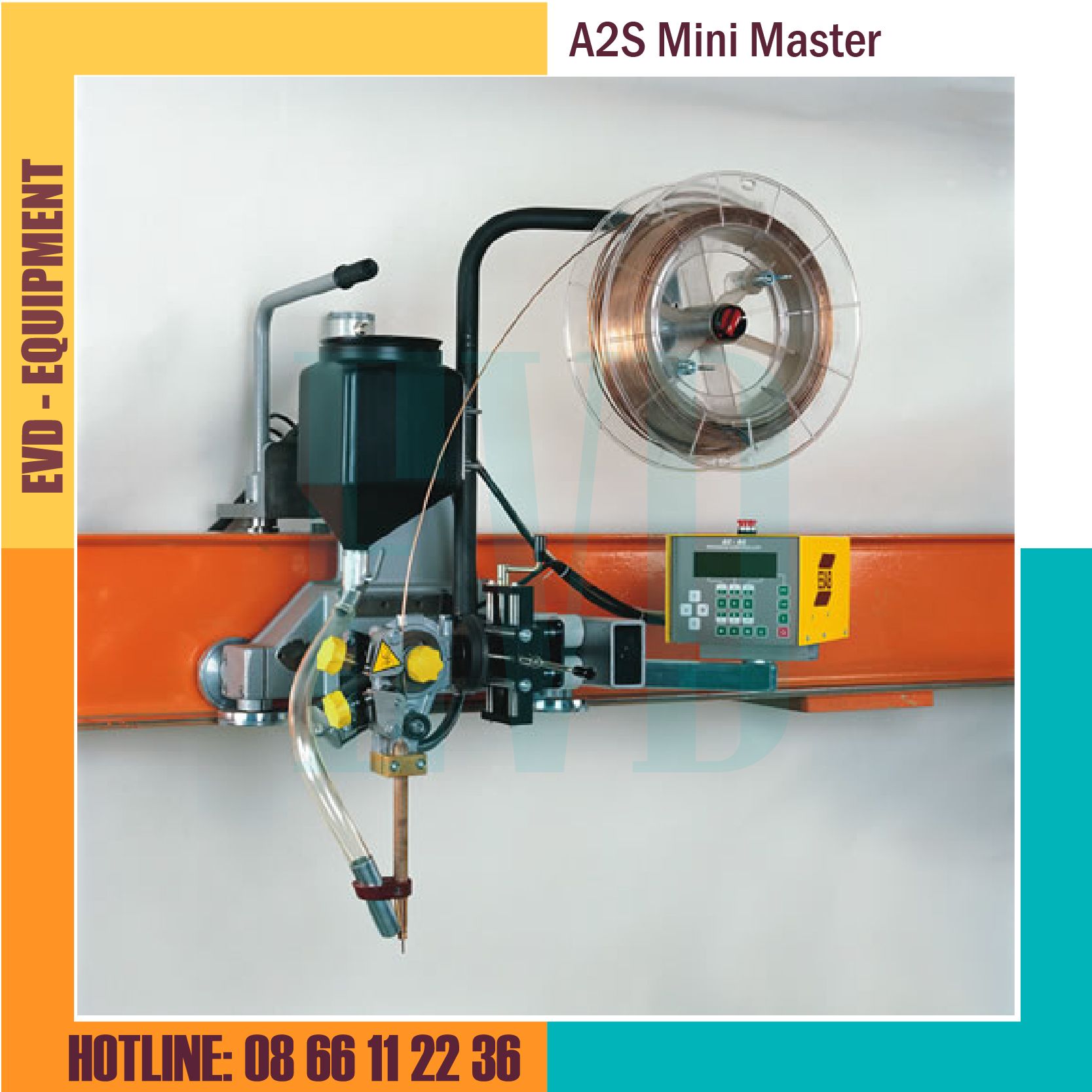

Đầu hàn ESAB - A2S Mini Master

Giá gốc 0₫

The A2S Mini Master is a versatile welding system for single wire SAW, twin wire SAW or GMAW. The light-weight, compact design allows for greater flexibility.

Features

  • Modular design allows user to expand, integrate or modify the system quickly and easily
  • Uses A2-A6 PEK or A2 PEI process controller
  • Accurate, easy joint-tracking with manual or motorized slide system and manual PAV or automatic GMH joint tracking
  • The system attaches to any beam travelling carriage or Column & Boom system

Số lượng

Capacities

Flux Hopper Capacity (Single Wire SAW)1.4 gal (6 l)
Flux Hopper Capacity (Twin Wire SAW)1.4 gal (6 l)
Linerar Slide Stroke Length3.5 in. (90 mm)
Rotary Slide Setting Range (deg)360 °

Power Requirements

Control Voltage42 VAC

Wire/Strip Specifications

ModelWire Diameter, SingleWire Feed SpeedWire Type
GMAW.030-1/16 in.
0.8-1.6 mm
630 in./min
16 m/min
Steel
GMAW.030-1/16 in.
0.8-1.6 mm
630 in./min
16 m/min
Stainless Steel
GMAW.045-3/32 in.
1.2-2.4 mm
630 in./min
16 m/min
Cored Wire
GMAW.045-1/16 in.
1.2-1.6 mm
630 in./min
16 m/min
Aluminium
GMAW MTW 600w.040-1/16 in.
1.0-1.6 mm
984 in./min
25 m/min
Steel
GMAW MTW 600w.040-1/16 in.
1.0-1.6 mm
984 in./min
25 m/min
Stainless Steel
GMAW MTW 600w.040-3/32 in.
1.0-2.4 mm
984 in./min
25 m/min
Cored Wire
GMAW MTW 600w.040-5/64 in.
1.0-2.0 mm
984 in./min
25 m/min
Aluminium
Single Wire SAW1/16-5/32 in.
1.6-4.0 mm
354 in./min
9 m/min
Steel
Single Wire SAW1/16-5/32 in.
1.6-4.0 mm
354 in./min
9 m/min
Stainless Steel
Single Wire SAW1/16-5/32 in.
1.6-4.0 mm
354 in./min
9 m/min
Cored Wire
Twin Wire SAW2x.045-3/32 in.
2x1.2-2.5 mm
354 in./min
9 m/min
Steel


A2S Mini Master GMAW MTW (4WD) System With motorized slides 180x180 mm and GMH0449181902
A2S Mini Master GMAW MTW (4WD) System With manual slides 90x90 mm0449181900
A2S Mini Master GMAW MTW System With manual slides 90x90 mm0449380880
A2S Mini Master GMAW MTW System With motorized slides 180x180 mm and GMH0449380882
A2S Mini Master SAW System With motorized slides 180x180 mm and GMH0449370882
A2S Mini Master SAW System With motorized slides 180x180 mm and PAV0449170901
A2S Mini Master SAW System With motorized slides 180x180 mm and PAV0449370881
A2S Mini Master GMAW MTW System With motorized slides 180x180 mm and PAV0449380881
A2S Mini Master SAW System With manual slides 90x90 mm0449170900
A2S Mini Master GMAW MTW (4WD) System With motorized slides 180x180 mm and PAV0449181901
A2S Mini Master SAW System With manual slides 90x90 mm0449370880
A2S Mini Master SAW System With motorized slides 180x180 mm and GMH0449170902
