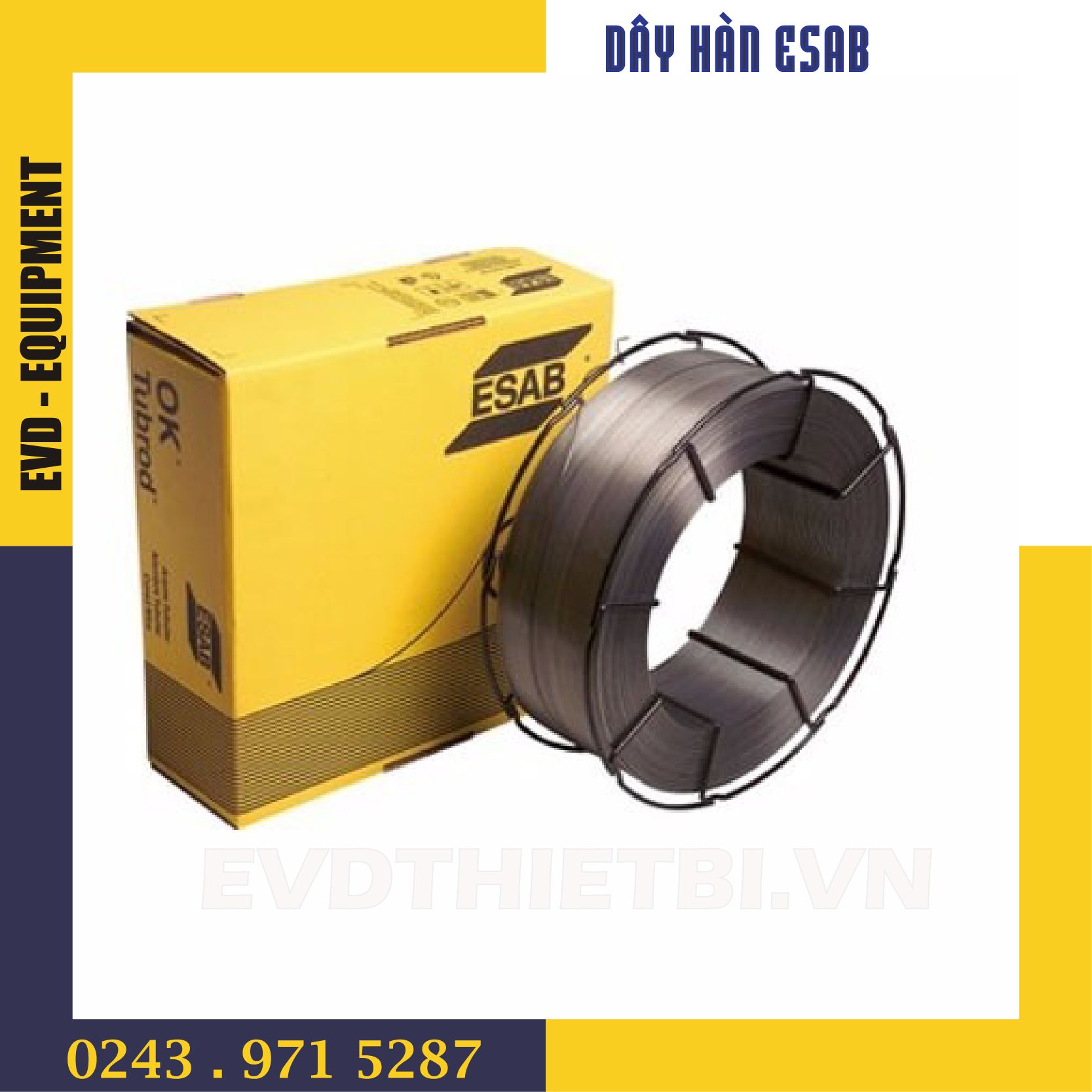

DÂY HÀN ESAB - OK ARISTOROD 12.50

Mã sản phẩm: ER70S-6-1

Giá gốc 0₫

OK Aristorod 12.50 is a bare Mn-Si-alloyed G3Si1/ER70S-6 solid wire for the GMAW of non-alloyed steels, as used in general construction, automotive components, pressure vessel fabrication and shipbuilding. OK Aristorod 12.50 is treated with ESAB’s unique Advanced Surface Characteristics (ASC) technology, taking MAG welding operations to new levels of performance and all-round efficiency, especially in robotic and mechanised welding. Characteristic features include excellent start properties; trouble-free feeding at high wire speeds and lengthy feed distances; a very stable arc at high welding currents; extremely low levels of spatter; low fume emission; reduced contact tip wear and improved protection against corrosion of the wire.

PHI

Số lượng

Typical Tensile Properties

AWS CO2 (C1) As welded
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
30 %530 MPa430 MPa--
EN 80Ar/20CO2 (M21) As welded
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
26 %560 MPa470 MPa--
EN 80Ar/20CO2 (M21) Stress relieved
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
28 %495 MPa370 MPa620 °C15 hr
EN CO2 (C1) As welded
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
25 %540 MPa440 MPa--

Charpy V-Notch Properties

AWS CO2 (C1) As welded
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
75 J-30 °C--
EN 80Ar/20CO2 (M21) As welded
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
130 J20 °C--
120 J-20 °C--
100 J-30 °C--
90 J-40 °C--
EN 80Ar/20CO2 (M21) Stress relieved
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
120 J20 °C620 °C15 hr
90 J-20 °C620 °C15 hr
EN CO2 (C1) As welded
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
110 J20 °C--
75 J-30 °C--

Weld Metal Analysis

CO2 (C1)
MnCSiTi+Zr
---<0,01 %
80Ar/20CO2 (M21)
MnCSiTi+Zr
---<0,01 %
1.46 %0.08 %0.85 %-

Deposition Data

DiameterCurrentDeposition RateVoltageWire Feed Speed
1.0 mm80-300 A1.0-5.5 kg/h18-32 V2.7-15 m/min
1.32 mm130-400 A1.5-8.5 kg/h19-35 V2.4-15 m/min
1.4 mm150-420 A1.6-8.7 kg/h22-36 V2.3-12 m/min
1.2 mm120-380 A1.3-8.0 kg/h18-35 V2.5-15 m/min
1.6 mm225-550 A2.1-9.4 kg/h28-38 V2.3-10 m/min
1.14 mm100-350 A1.2-7.0 kg/h18-34 V2.6-15 m/min
0.8 mm60-200 A0.8-2.3 kg/h18-24 V3.2-10 m/min
2.0 mm300-650 A4.4-10.2 kg/h32-44 V3.0-7 m/min
0.9 mm70-250 A0.9-3.5 kg/h18-26 V3.0-12 m/min

Approvals:ABS, 3Y SA, BV, SA3YM, CE, EN 13479, DB, 42.039.29, DNV-GL, III YMS, LR, 3YS H15, PRS, 3YS, RS, 3Y40MS, VdTÜV, 10052, CWB, B-G 49A 3 C1 S6 (B-G 49A 3 C G6), PV,ZG, JIS, YGW12 (C1), ZG, NAKS/HAKC, 1.0-1.6 mm, PV, NAKS/HAKC, 1.2-1.6 mm, ZG, RINA, 3Y S, ZG, RINA, 3Y S, PV
Classifications:EN ISO 14341-A, G 38 3 C1 3Si1, Weld Metal, EN ISO 14341-A, G 42 4 M20 3Si1, Weld Metal, EN ISO 14341-A, G 42 4 M21 3Si1, Weld Metal, EN ISO 14341-A, G 3Si1, Wire Electrode, SFA/AWS A5.18, ER70S-6, Wire Electrode, CAN/CSA-ISO 14341, B-G 49A 3 C1 S6, Wire Electrode, JIS Z 3312, YGW 12 (C1), Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Carbon-manganese steel (Mn/Si-alloyed)
