ESAB CUTMASTER 40

Mã sản phẩm: Cutmaster40

Giá gốc 0₫

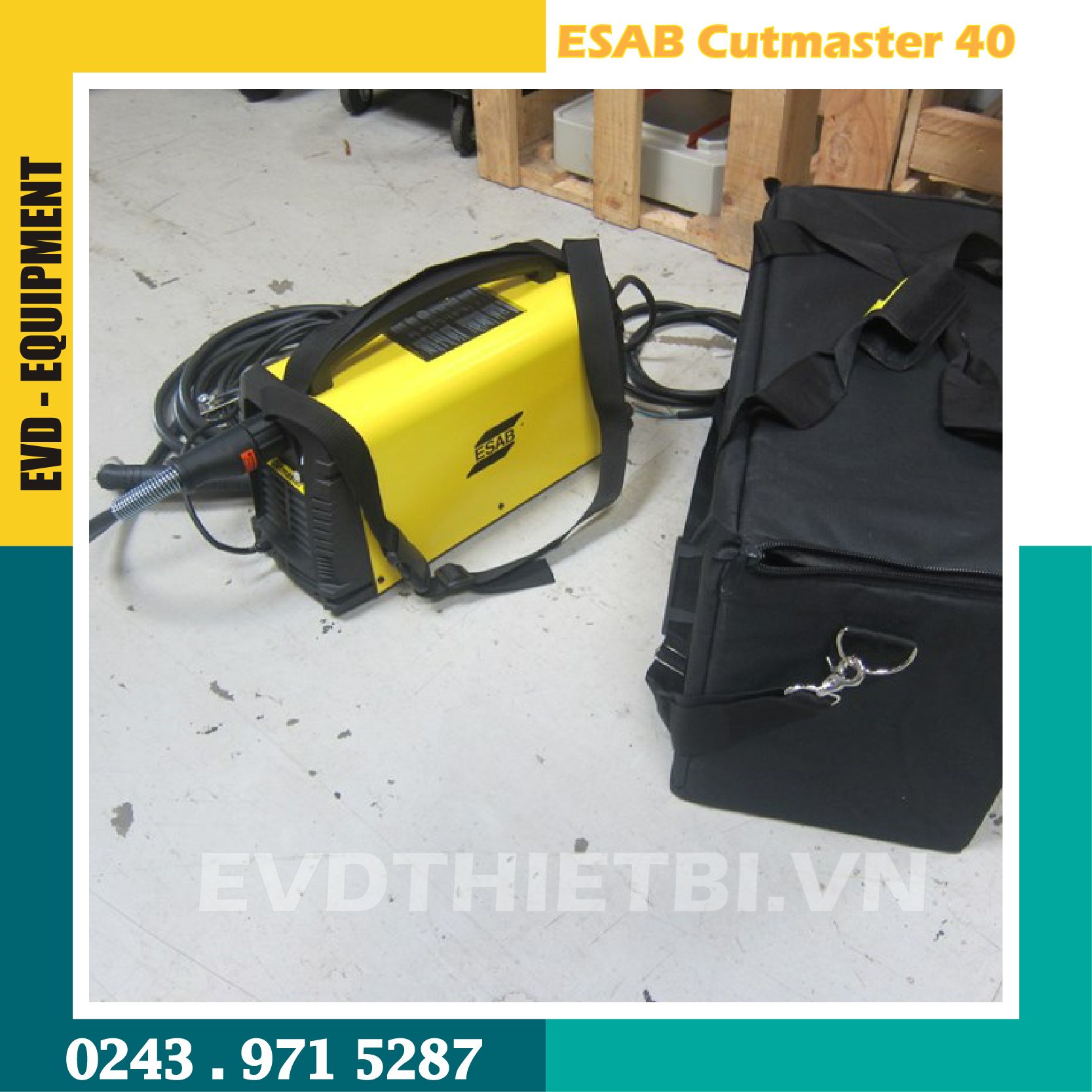

ESAB Cutmaster 40 is one of the most affordable, highest quality 110V/230V 12mm(1/2”) plasma systems on the market. As part of the TRUE Series, you can rely on the Cutmaster 40 to cut all day at its recommended cutting capacity and to pack more punch when you need it. Comes complete with carry bag, power supply with work lead and ground clamp, 6.1m SL60 torch, operating manual and DVD

Số lượng

Features

  • True CutTM – 12mm (1/2”)
  • Max Cut - 22mm (7/8“)
  • Automatic Input Voltage selection 110v/230v
  • TD Surelok Technology for better quality cuts and longer parts life
  • Lightweight design for maximum portability

Industries

  • Automotive
  • Civil Construction
  • Hobbyist
  • Repair and Maintenance

Cutting Specifications

@110V

Cuts Manual6.3 mm
Pierces6.3 mm
Severs Manual15 mm

@230V

Cuts Manual12 mm
Pierces8 mm
Severs Manual22.2 mm

Dimensions

Height470 mm
Length117 mm
Width228 mm

Input Ratings

Frequency Hz50/60 Hz
Phase1
Volts110/230 V

Output Ratings

Amp High40 A
Duty Cycle40 %
VAC Out230 VAC
Amp High30 A
Duty Cycle30 %
VAC Out110 VAC

110V

Amp High27 A

230V

Amp High40 A

Plasma Air Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Plasma Gas Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Weight

Weight11.8 kg


Tải tài liệu ==>  ESAB CUTMASTER 40
