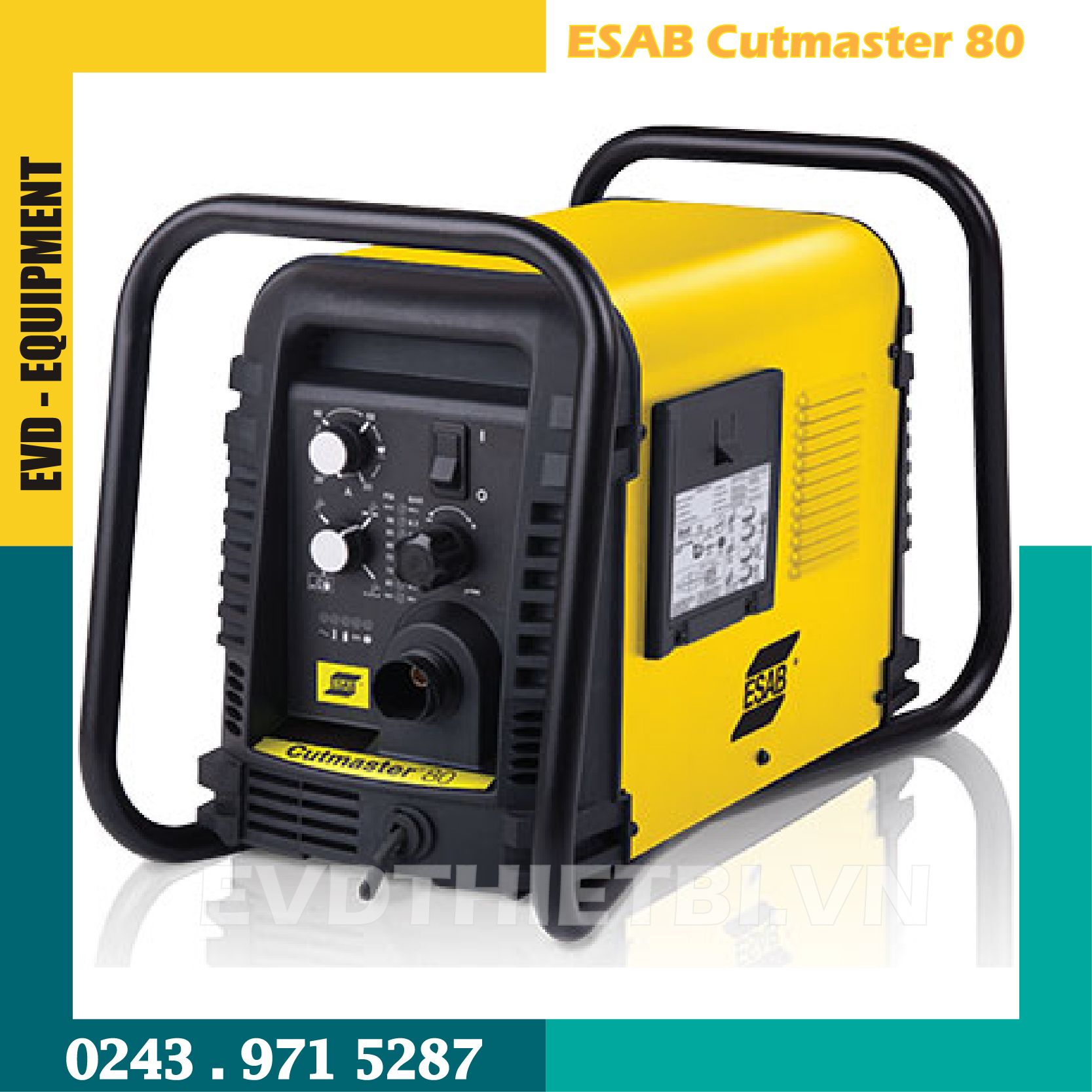

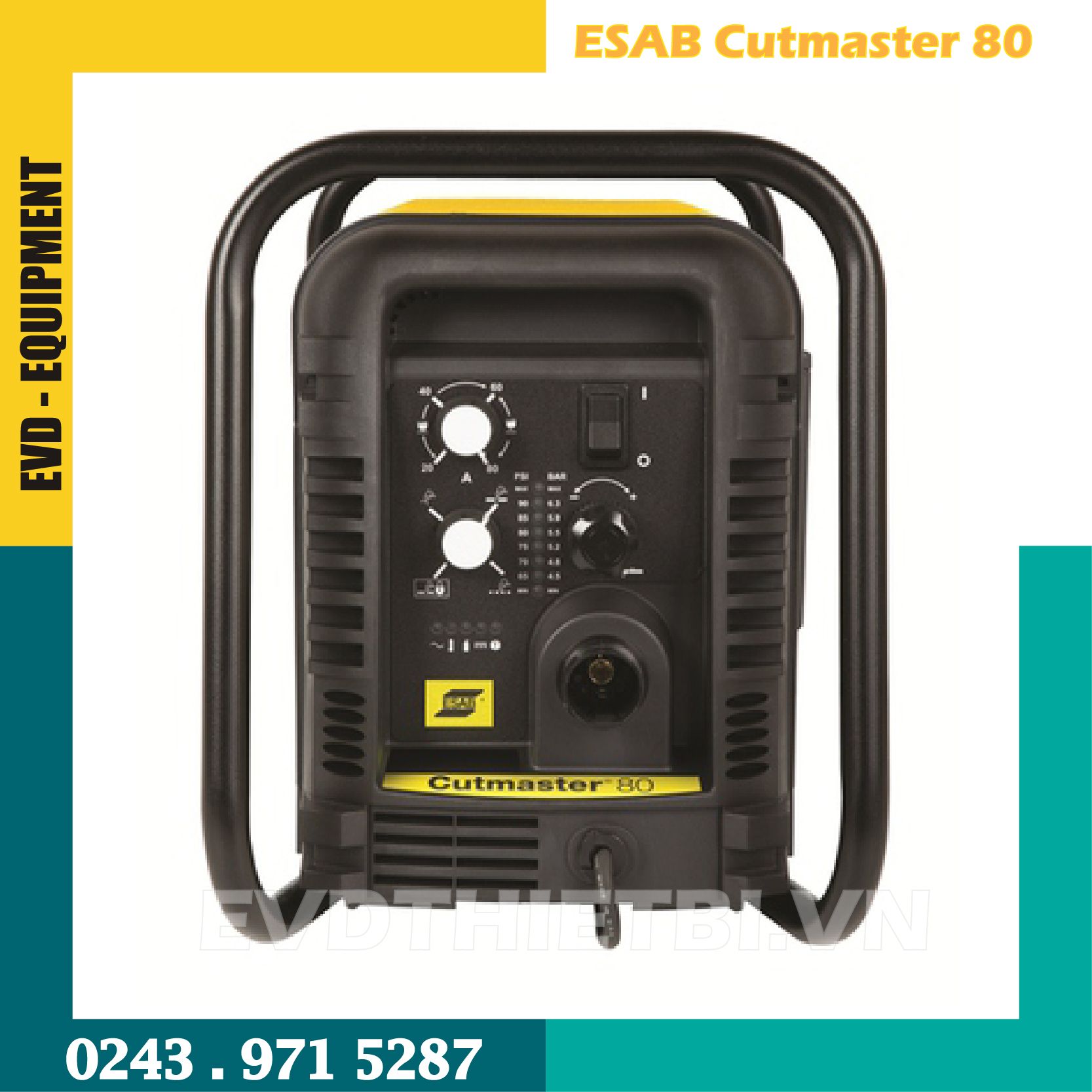

ESAB CUTMASTER 80

Mã sản phẩm: Cutmaster80

Giá gốc 0₫

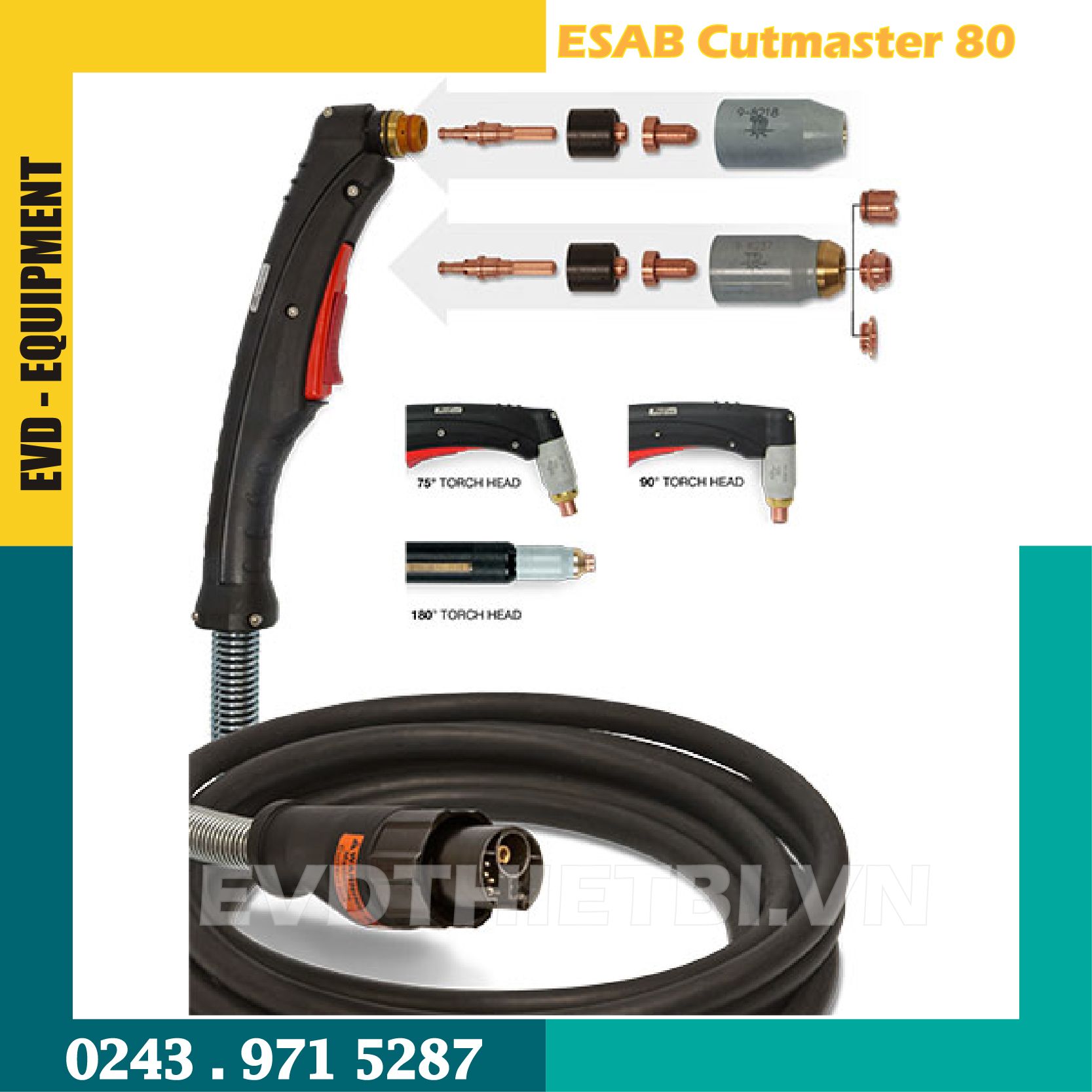

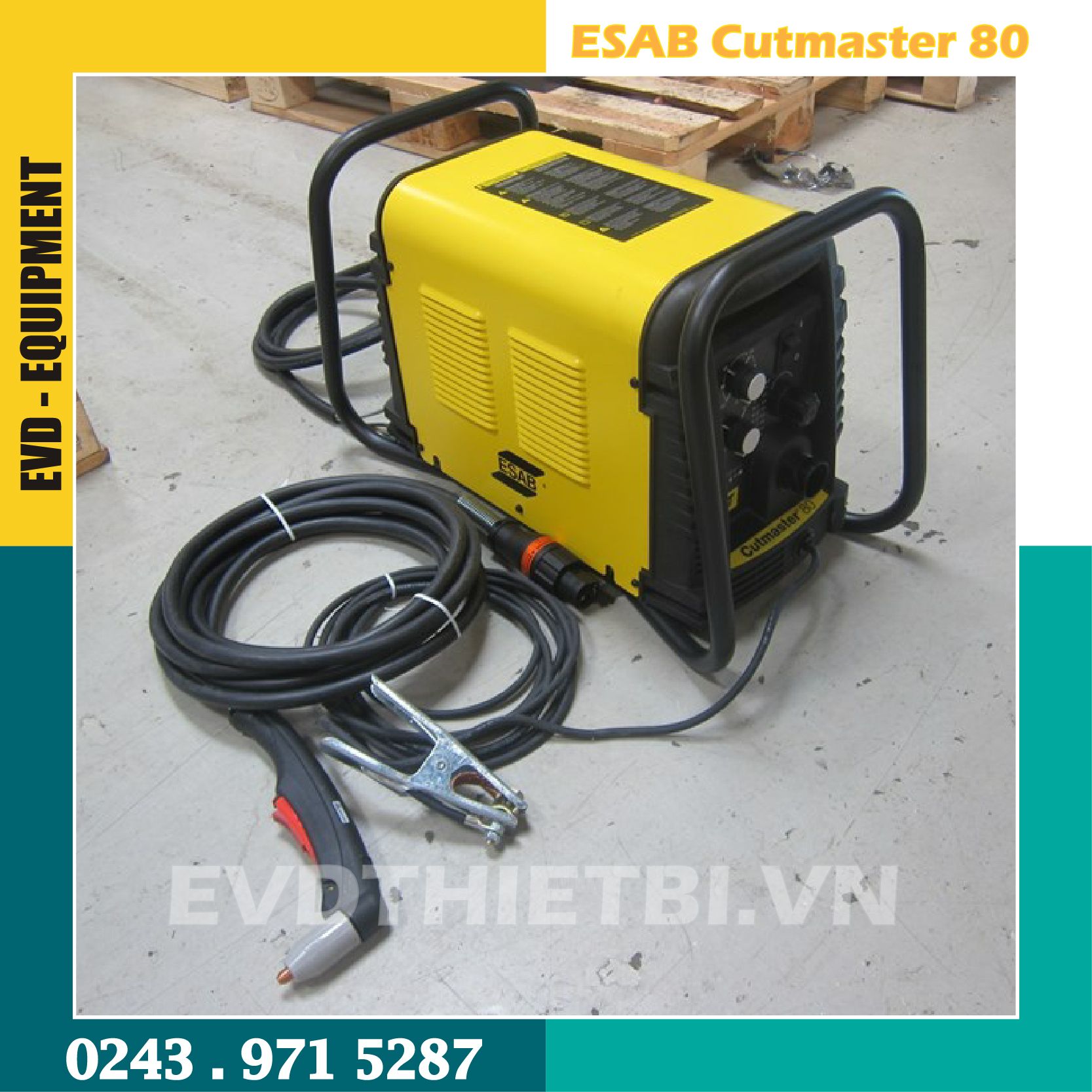

The ESAB Cutmaster 80 weighs in at a mere 19.5 kg while still offering superior cutting power. Don’t let the size of this unit fool you, it’s more than capable of cutting 25mm (1”) with a maximum capability of 38mm (1-1/2"). This unit, like all other TRUE™ ESAB Cutmasters, is equipped with the 1Torch®.  Packages include power source, SL60 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

Số lượng

Features

  • True CutTM – 25mm (1”)
  • Quick Disconnect Torch for easy maintenance or machine torch conversion
  • Auto-Restrike on mesh or expanded metal for maximum productivity
  • True-GuardTM roll bar for ultimate protection
  • TD Surelok® technology for better quality cuts and longer parts life

Industries

  • Agricultural Equipment
  • Civil Construction
  • General Manufacturing
  • Heavy Fabrication
  • Mining
  • Pipeline

Cutting Specifications

Cuts Manual25 mm
Pierces15 mm
Severs Manual38 mm

Dimensions

Height381 mm
Length610 mm
Width305 mm

Input Ratings

Frequency Hz50/60 Hz
Phase3
Volts400 V

Amperage Draw

Amps20 A
Phase3
Volts400 V

Output Ratings

Amp High80 A
Amp High80 A
Duty Cycle40 %

Plasma Air Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Plasma Gas Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Weight

Weight19.5 kg


TẢI TÀI LIỆU ==>> ESAB CUTMASTER 80
