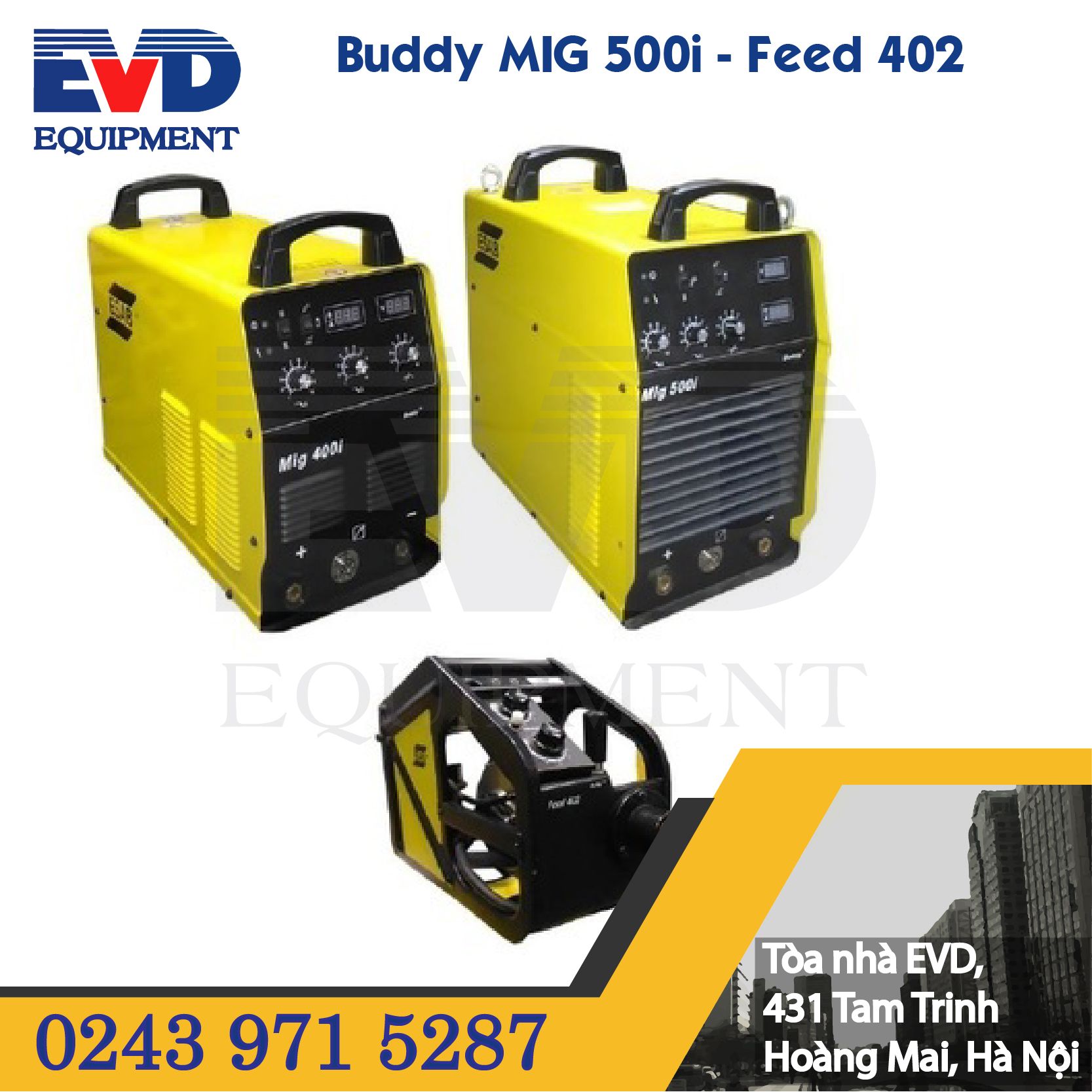

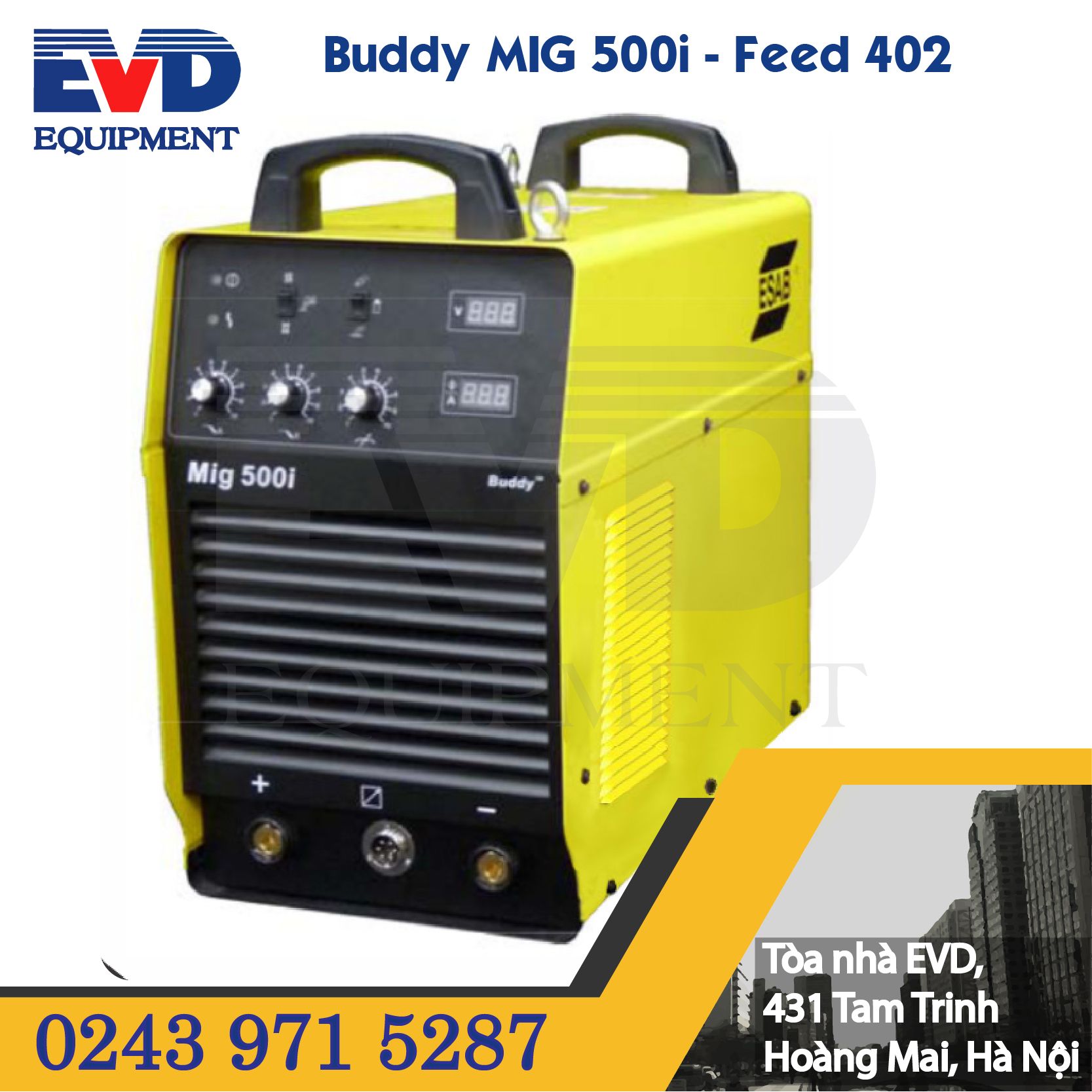

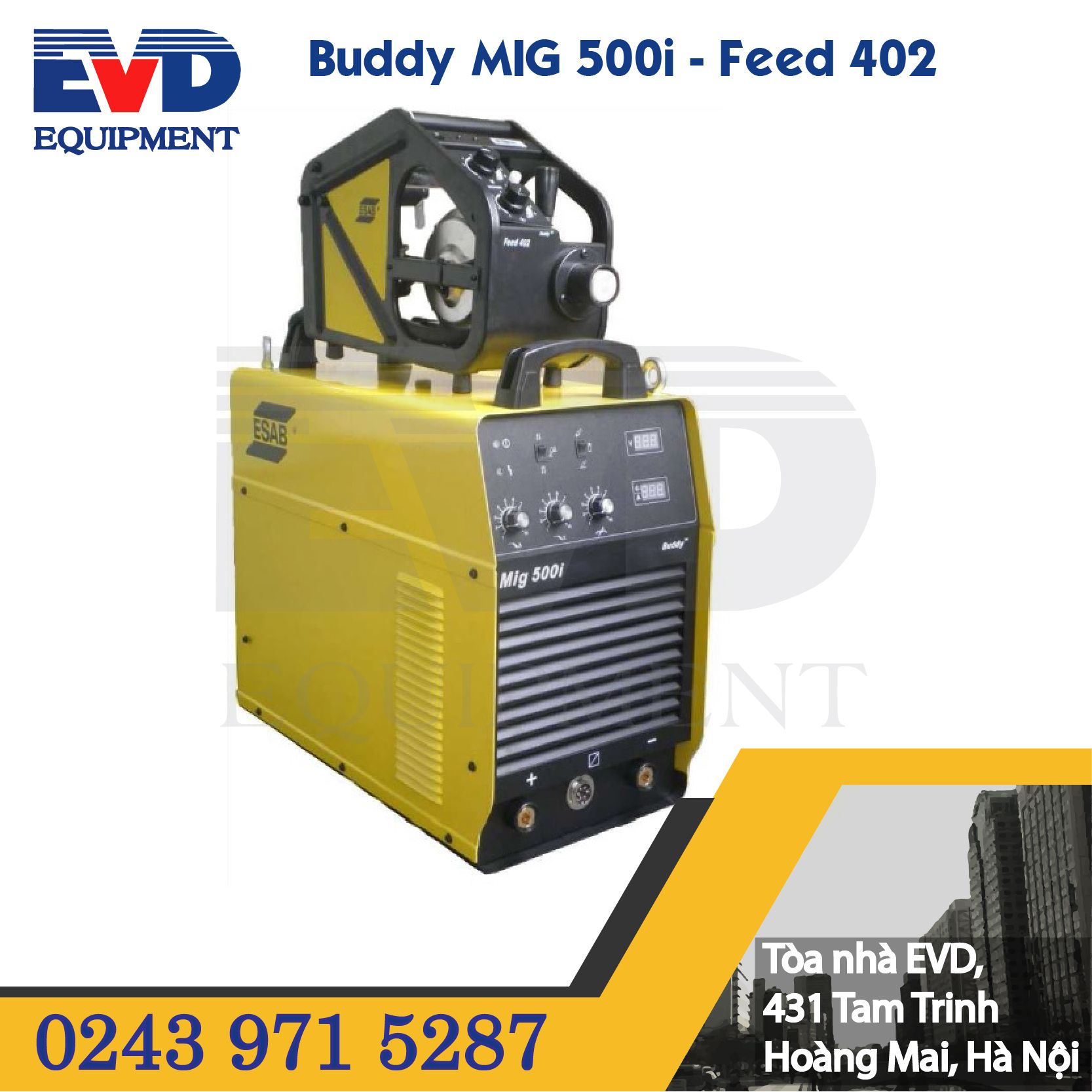

MÁY HÀN ESAB BUDDY MIG 500i & Buddy Feed 402

Mã sản phẩm: BuddyMIG500

Giá gốc 0₫

Buddy™ Mig 500i is an inverter controlled power source for MIG/MAG welding. With well proven technology, the inverter controlled power source will reduce the overall input power required thus reducing energy cost. Buddy™ Mig 500i handles most MIG/MAG welding applications. Current range of 50-500A enables to give equally good output on thin sheets as well as on thick plates. Stepless inductance control gives stable arc with minimum spatter. Wire feed speed, voltage control and wire inching are set on the wire feeder Buddy™ Feed 402, which is equipped with large feed rolls and powered by a heavy duty drive system for smooth wire feeding. Buddy Feed 402 handles 0.8-1.6 mm MS and 1.2-1.6 mm FC/Al wires. The compact and lightweight wire feeder allows access of the feeder unit into tight spaces, thus improving mobility.

Số lượng

Arc Power Specifications

ModelBuddy Feed 402Buddy Mig 500i
Conditional StatementInput Voltage
Input Frequency50 Hz
Input VAC400 VAC
Open Circuit VAC70 VAC
Power Factor at Maximum Current0.93
Protection ClassIP21

Dimensions

Buddy Feed 402

Height280 mm
Length460 mm
Width200 mm

Buddy Mig 500i

Height640 mm
Length610 mm
Width335 mm

Efficiency Rating

Efficiency Max Current85 %

Input Voltage

ModelBuddy Mig 500i
Frequency50 Hz
Voltage400 V

Power Specifications

Buddy Mig 500i

Enclosure ClassIP21
Open Circuit VAC High70 VAC
Power Factor Maximum Current93 %

Power Specifications

ModelBuddy Mig 500i
Open Circuit Voltage70 VAC
Power Factor at Maximum Current0.93
Protection ClassIP21

Specifications

MCableX4 x 6

Weight

Buddy Feed 402

Weight9 kg

Buddy Mig 500i

Weight56 kg

Welding Output

Model
Buddy Feed 402
Buddy Mig 500i
