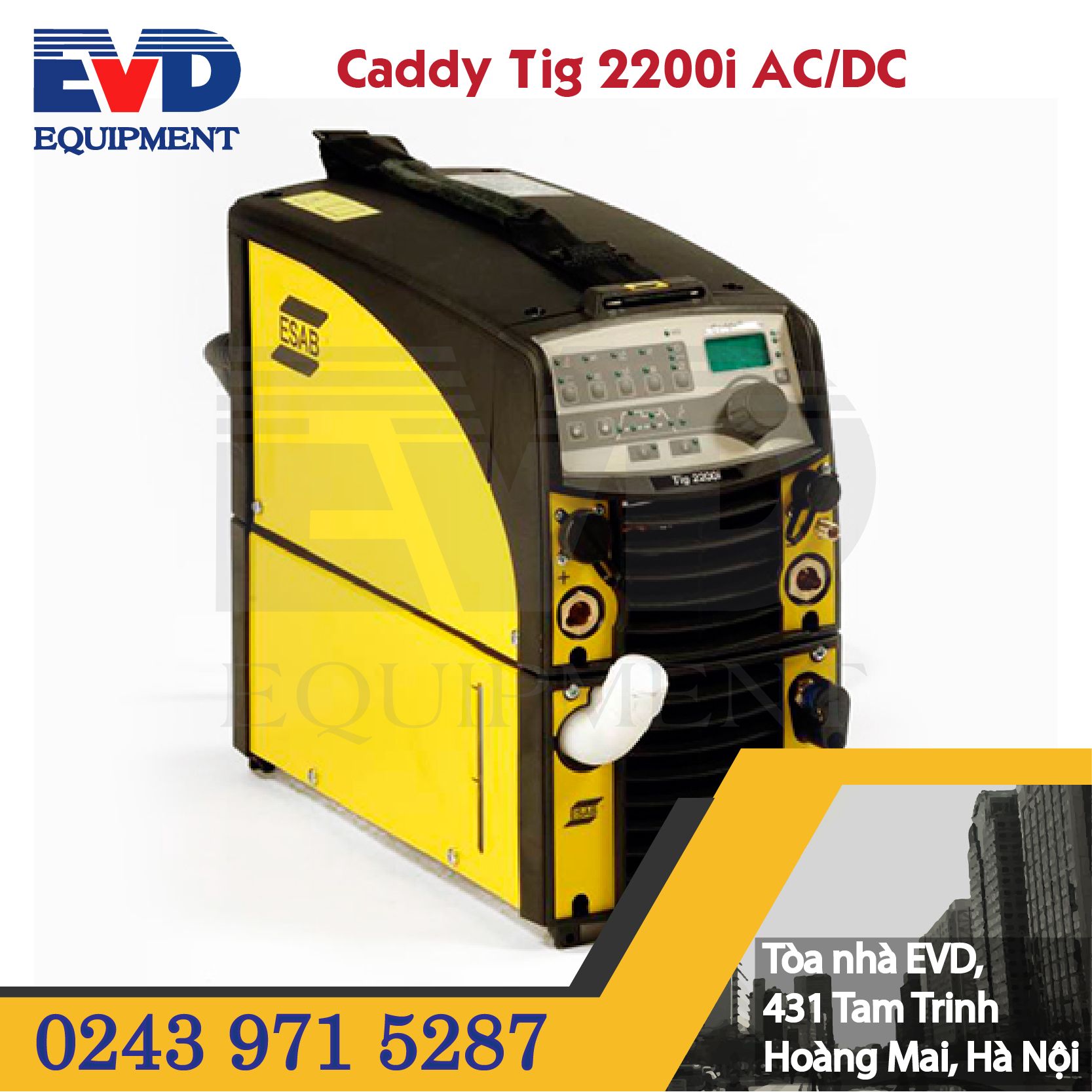

MÁY HÀN ESAB CADDY TIG 2200i AC/DC

Mã sản phẩm: CaddyTIG2200iAC/DC-TA33

Giá gốc 0₫

Compact and portable inverter for AC/DC TIG welding, with HF or LiftArc start, and MMA.

Features

  • Durable and impact resistant design with OKC 50 cable connectors
  • Easy to operate
  • Digital display for settings
  • Plate thickness setting for TIG (TA33 AC/DC). Set the plate thickness and the machine will control the welding parameters.
  • Adjustable slope down and gas post-flow (TA33 AC/DC).

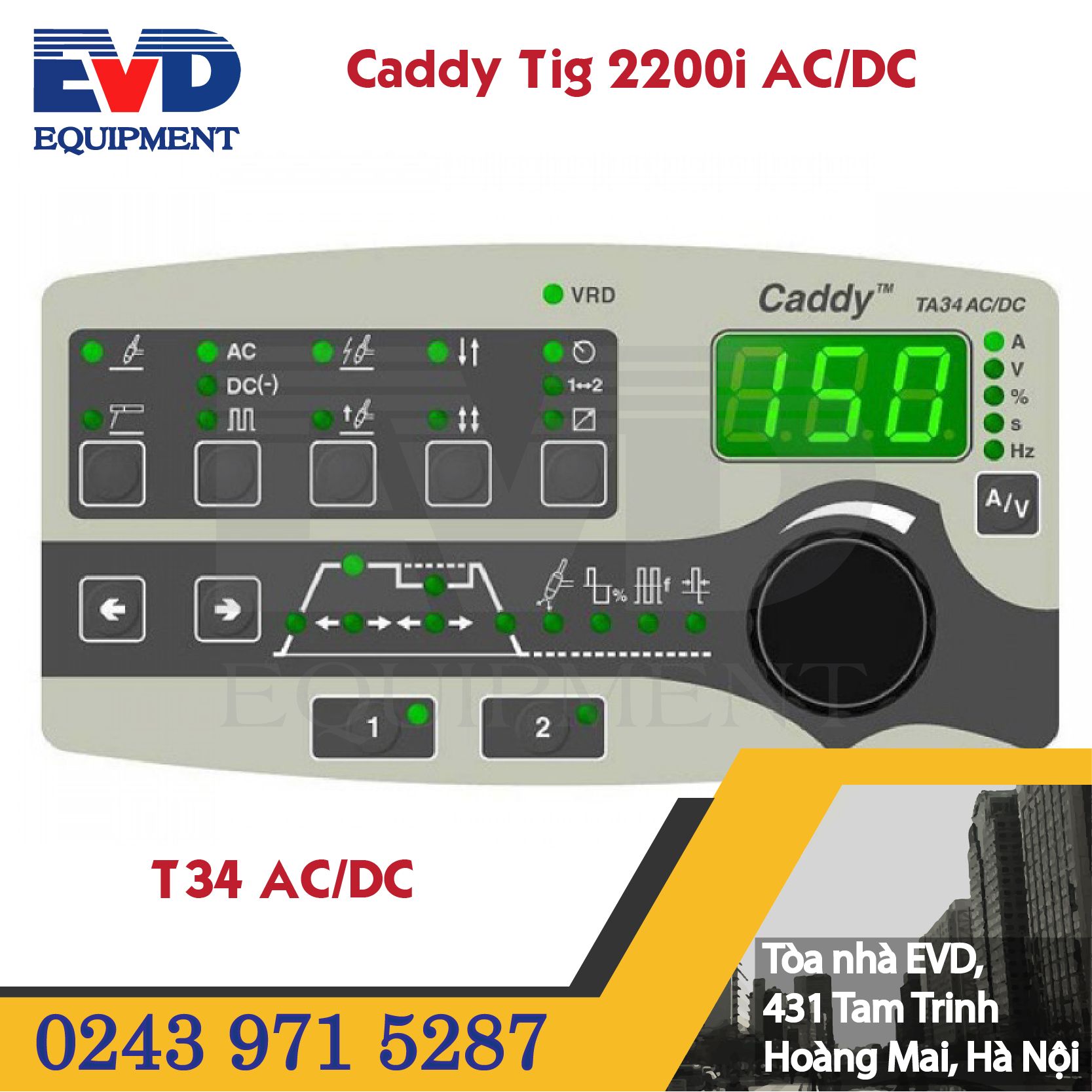

  • DC Pulsed TIG (TA34 AC/DC) giving increased control of heat input and weld pool
  • Two memories (TA34 AC/DC) for storing of settings
  • Micro Pulse (TA34 AC/DC) minimising heat affected zone especially on thin material
  • Adjustable slope up/down and gas post-flow (TA34 AC/DC)
  • Remote control possibility
  • ArcPlus II regulator for better MMA welding characteristics. Higher weld quality with less after treatment
  • Alll types of material, including aluminium, and thickness up to 5 mm
  • Can operate with extra mains cables, over 100 m, thanks to the built-in PFC circuit
  • IP 23 - designed for outdoor use making it safe on all work sites.

Model

Số lượng

Arc Power Specifications

ModelTA33 AC/DCTA34 AC/DC
AC Balance50-98 %
70 %
50-98 %
70 %
Conditional StatementInput Voltage
TA33 AC/DC
TA34 AC/DC
Welding Output
Welding Output
Welding Output
Input Voltage
TA33 AC/DC
TA34 AC/DC
Welding Output
Welding Output
Welding Output
Duty Cycle100 %
20 %
60 %
100 %
20 %
60 %
Input Frequency50/60 Hz50/60 Hz
Input VDC230 VDC230 VDC
Open Circuit VDC46-60/<35 V
46-60/<35 V
46-60/<35 V
46-60/<35 V
Output Current140 A
150 A
220 A
140 A
150 A
220 A
Phase1ph1ph
Power Factor at Maximum Current0.99
0.99
0.99
0.99
Protection ClassIP 23
IP 23
IP 23
IP 23
Setting Range MMA/DC (A)4-160 A
4-160 A
4-160 A
4-160 A
Setting Range TIG/DC (A)3-220 A
3-220 A
3-220 A
3-220 A
VDC Out15.6 VDC
16.0 VDC
18.8 VDC
15.6 VDC
16.0 VDC
18.8 VDC

Dimensions

Caddy Tig 2200i AC/DC, TA34 AC/DC

Height345 mm
Length418 mm
Width188 mm

Caddy Tig 2200i AC/DC, TA33 AC/DC

Height345 mm
Length418 mm
Width188 mm

Efficiency Rating

Efficiency Max Current66 %

Input Voltage

ModelTA33 AC/DCTA34 AC/DC
Frequency50/60 Hz50/60 Hz
Phase11
Voltage230 V230 V

Power Specifications

Caddy Tig 2200i AC/DC, TA34 AC/DC - TA34 AC/DC

AC Balance50-98 % (50-98 %)
Enclosure ClassIP 23
Open Circuit VDC High60/<35 V
Open Circuit VDC Low46 V
Power Factor Maximum Current99 %
Setting Range MMA/DC (A)4-160 A
Setting Range TIG/DC (A)3-220 A
Open Circuit Voltage46-60/<35 V
Power Factor at Maximum Current0.99
Protection ClassIP 23

Caddy Tig 2200i AC/DC, TA33 AC/DC - TA33 AC/DC

AC Balance70 % (70 %)
Enclosure ClassIP 23
Open Circuit VDC High60/<35 V
Open Circuit VDC Low46 V
Power Factor Maximum Current99 %
Setting Range MMA/DC (A)4-160 A
Setting Range TIG/DC (A)3-220 A
Open Circuit Voltage46-60/<35 V
Power Factor at Maximum Current0.99
Protection ClassIP 23

Specifications

Gas post flow0 - 25 sec
Gas pre flow0 - 5 sec
MCableX3 x 2.5
Slope Down0 - 10 sec
Slope Up0 - 10 sec
Gas post flow0 - 25 sec
Gas pre flow0 - 5 sec
MCableX3 x 2.5
Slope Down0 - 10 sec
Slope Up0 - 9.9 sec

Weight

Caddy Tig 2200i AC/DC, TA34 AC/DC

Weight15 kg

Welding Output

ModelTA33 AC/DCTA34 AC/DC
Duty Cycle100 %
20 %
60 %
100 %
20 %
60 %
Output Current140 A
150 A
220 A
140 A
150 A
220 A
Output Voltage15.6 VDC
16.0 VDC
18.8 VDC
15.6 VDC
16.0 VDC
18.8 VDC
