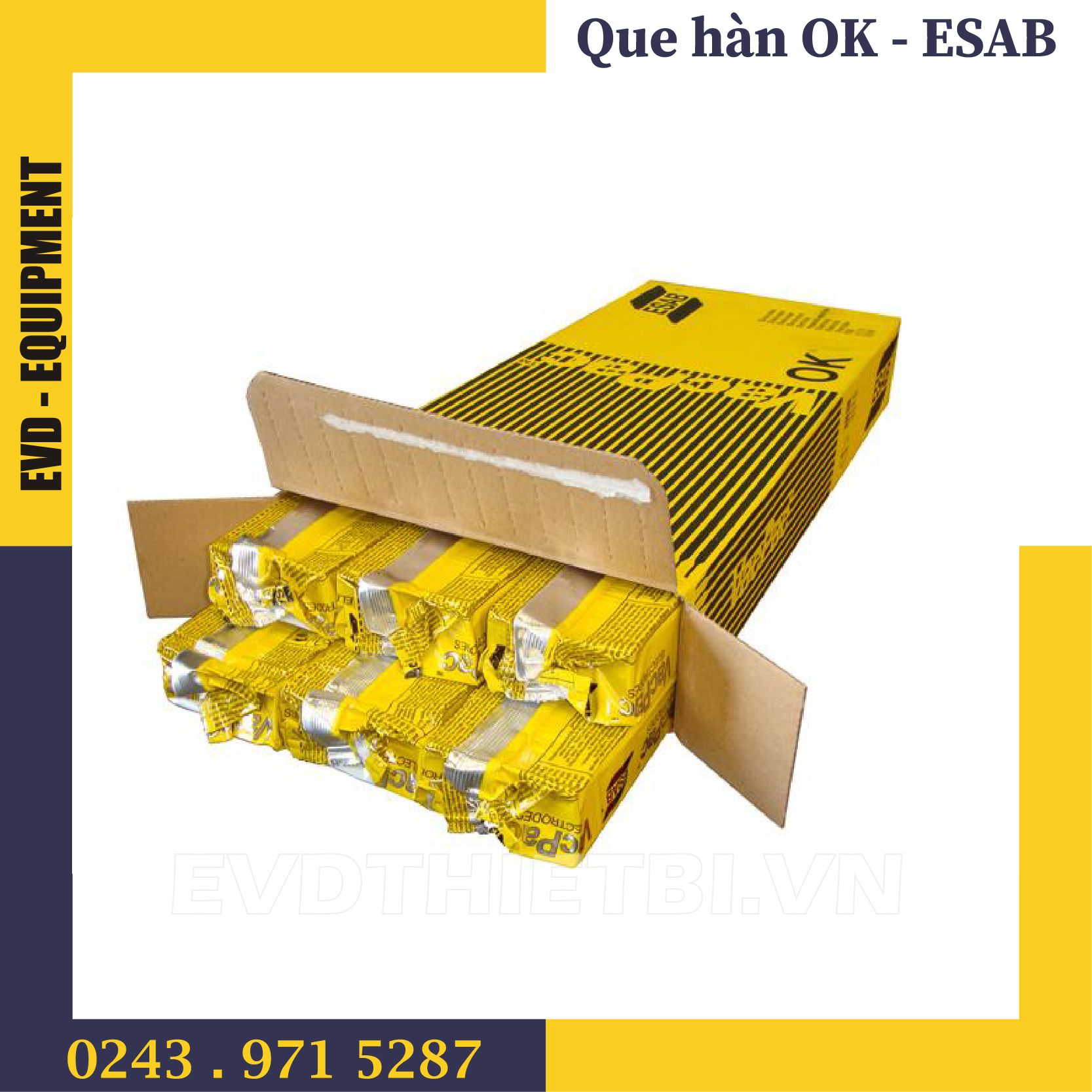

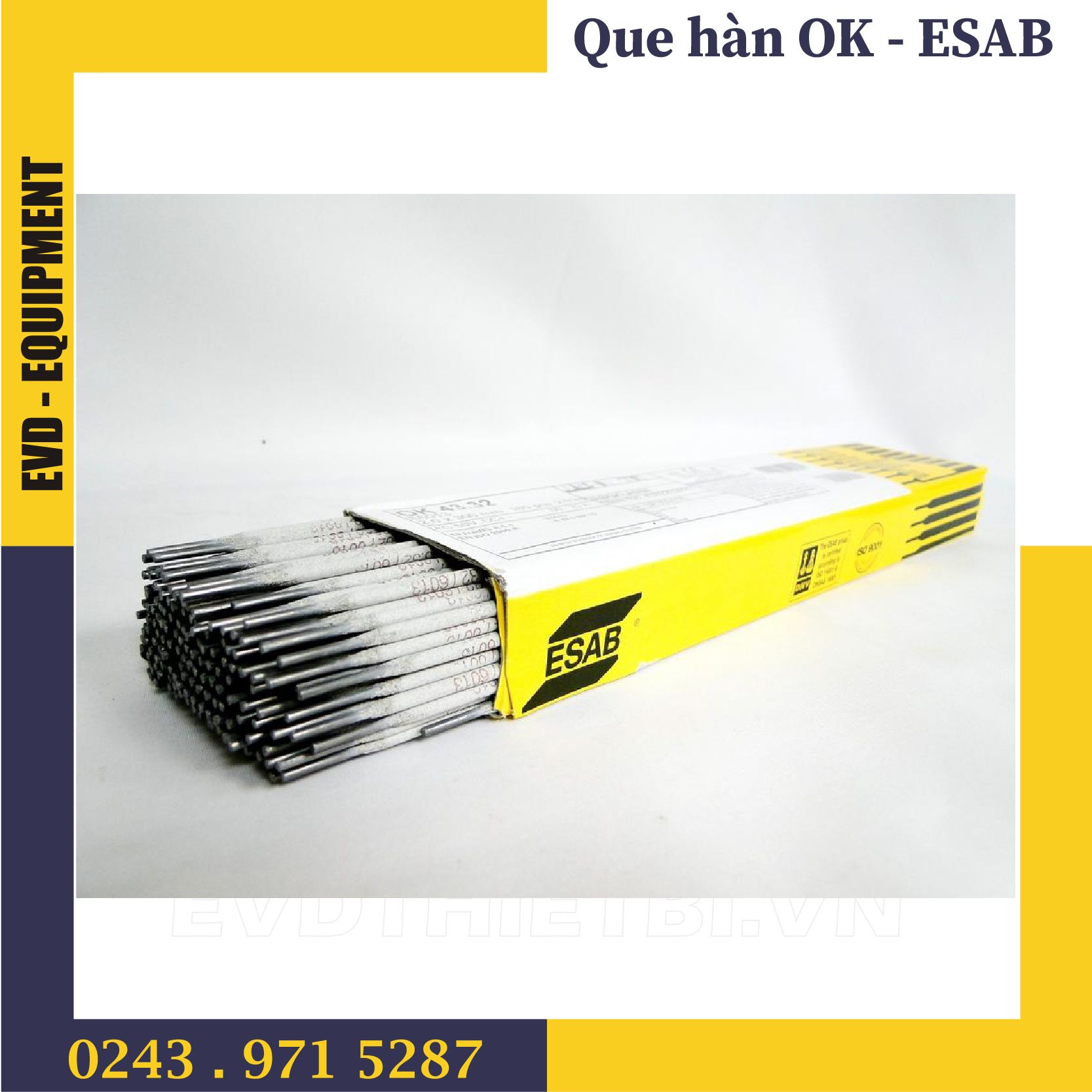

QUE HÀN ESAB OK 308L

Mã sản phẩm: E308L-16-2.5

Giá gốc 0₫

Extra low carbon stainless steel electrode for welding steels of the 19Cr10Ni-type. Also suitable for welding stabilized stainless steels of the similar composition, except when the full creep resistance of the base material is to be met.

PHI

Số lượng

Typical Tensile Properties

AWS As welded
ElongationTensile StrengthYield Strength
45 %570 MPa420 MPa

Typical Charpy V-Notch Properties

AWS As welded
Impact ValueTesting Temperature
50 J-60 °C

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
2.5 x 300 mm50-90 A1.1 kg/h36 sec0.55 kg9931 V
4.0 x 350 mm90-180 A2.0 kg/h60 sec0.60 kg3332 V
3.2 x 350 mm70-130 A1.4 kg/h54 sec0.60 kg4931 V
5.0 x 350 mm140-250 A3.0 kg/h60 sec0.60 kg2033 V

Classifications:SFA/AWS A5.4, E308L-16, JIS Z 3221, D308L-16


Alloy Type:Austenitic CrNi
Coating Type:Acid Rutile
Ferrite Content:FN 3-10
Welding Current:AC, DC+
