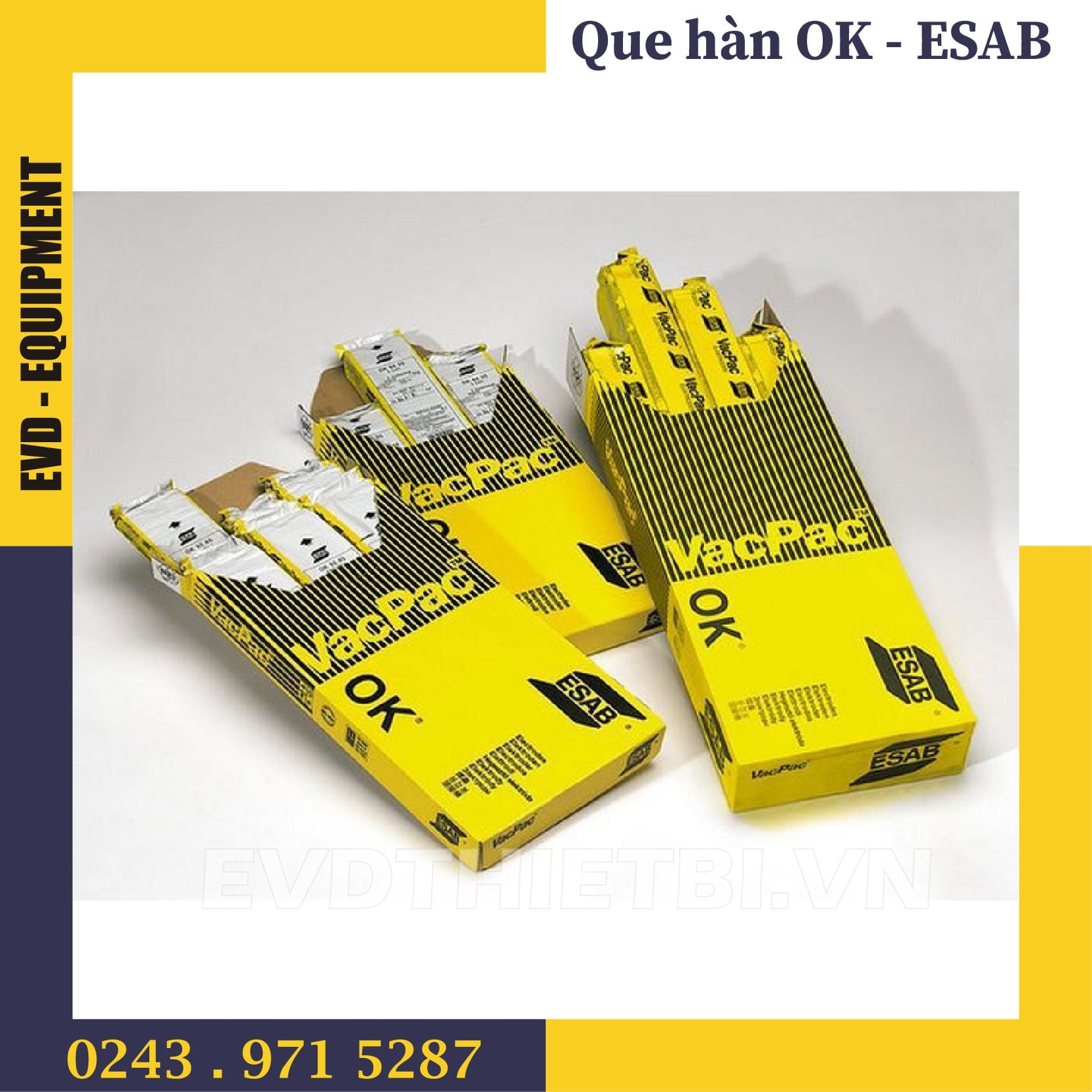

QUE HÀN ESAB OK NiCrFe-3

Mã sản phẩm: ENiCrFe-3-2.5

Giá gốc 0₫

Nickel based electrode for welding Inconel 600 and similar Inconel alloys, cryogenic steels, martensitic to austenitic steels, dissimilar steels, heat resisting steel castings of limited weldability.
PHI

Số lượng

Typical Tensile Properties

AWS As welded
ElongationTensile StrengthYield Strength
40 %640 MPa410 MPa

Typical Charpy V-Notch Properties

AWS As welded
Impact ValueTesting Temperature
100 J20 °C
80 J-196 °C

Typical Weld Metal Analysis %

MnCNbSiNiCrFe
6.7 %0.04 %1.7 %0.8 %71 %15.6 %6.3 %

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
2.5 x 300 mm50-70 A0.9 kg/h50 sec0.63 kg8822 V
4.0 x 350 mm75-150 A2.0 kg/h60 sec0.64 kg3124 V
3.2 x 350 mm65-105 A1.2 kg/h60 sec0.62 kg5723 V
5.0 x 350 mm120-170 A2.7 kg/h68 sec0.64 kg2025 V

Approvals:ABS, ENiCrFe-3, NAKS/HAKC, 4.0 mm
Classifications:SFA/AWS A5.11, ENiCrFe-3, EN ISO 14172, E Ni 6182 (NiCr15Fe6Mn)

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Ni-based Cr-alloy
Coating Type:Basic
Ferrite Content:FN 0
Welding Current:DC+
