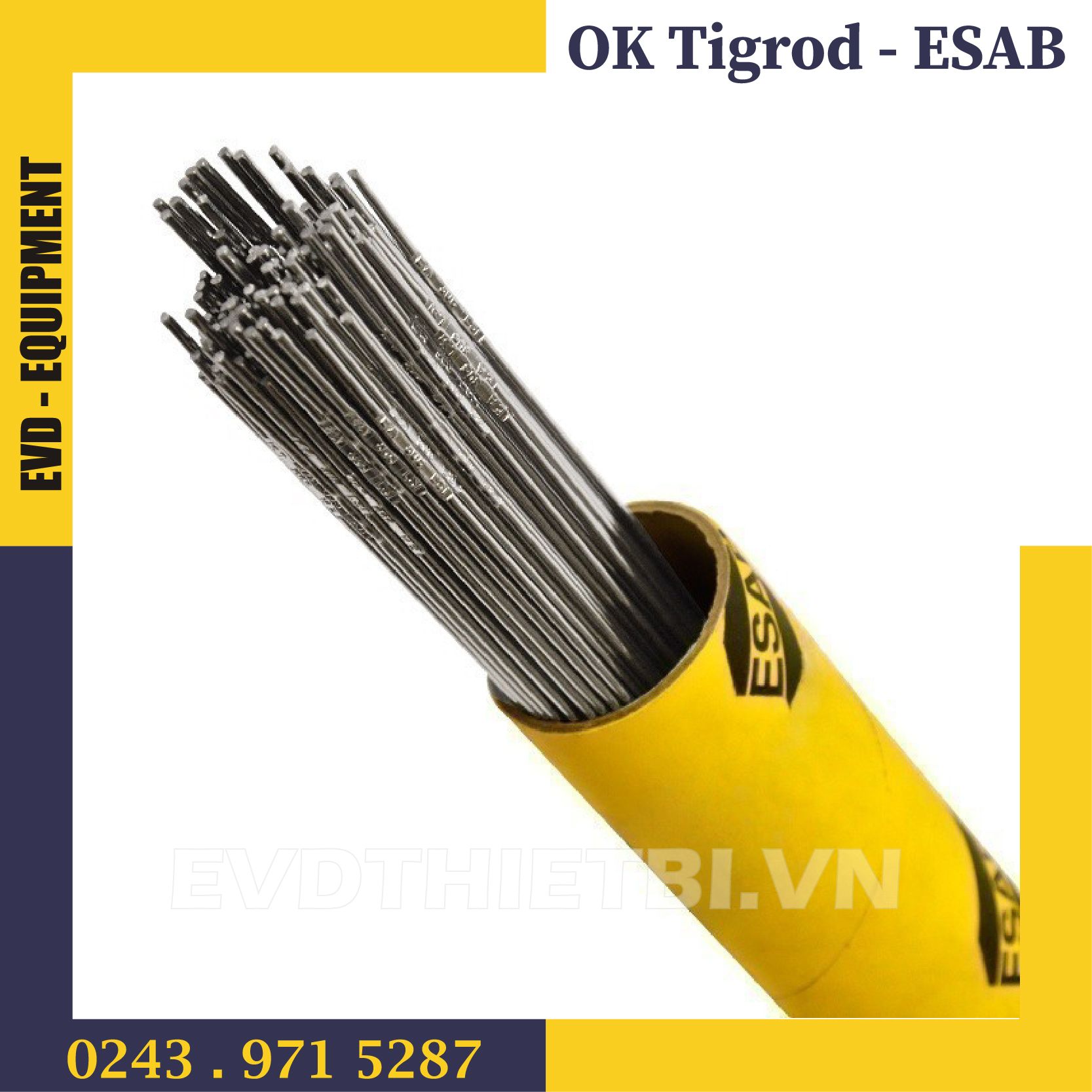

QUE HÀN ESAB OK TIGROD 13.09

Mã sản phẩm: ER70S-A1 (ER80S-G)

Giá gốc 0₫

OK Tigrod 13.09 is a 0.5Mo-alloyed, copper-coated rod for the GTAW of creep-resistant steels of the same type, such as pipes in pressure vessels and boilers with a working temperature of up to about 500°C.

Số lượng

Typical Tensile Properties

AWS Ar (I1) PWHT 620°C 1h
ElongationTensile StrengthYield Strength
28 %610 MPa510 MPa
AWS Ar (I1) As welded
ElongationTensile StrengthYield Strength
27 %620 MPa520 MPa
EN Ar (I1) PWHT 620°C 1h
ElongationTensile StrengthYield Strength
31 %550 MPa450 MPa
EN Ar (I1) As welded
ElongationTensile StrengthYield Strength
30 %600 MPa490 MPa

Typical Charpy V-Notch Properties

AWS Ar (I1) PWHT 620°C 1h
Impact ValueTesting Temperature
220 J-20 °C
AWS Ar (I1) As welded
Impact ValueTesting Temperature
150 J-29 °C
130 J-46 °C
EN Ar (I1) PWHT 620°C 1h
Impact ValueTesting Temperature
190 J20 °C
170 J-20 °C
EN Ar (I1) As welded
Impact ValueTesting Temperature
180 J20 °C
160 J-20 °C
90 J-40 °C
25 J-60 °C

Typical Weld Metal Analysis %

MnMoCSiNiCr
1.09 %0.45 %0.094 %0.61 %0.05 %0.05 %

Approvals:CE, EN 13479, DB, 42.039.08, DNV-GL, III YMS (I1), NAKS/HAKC, 2.0MM-3.2MM, VdTÜV, 04950
Classifications:EN ISO 636-A, W 46 2 W2Mo, Weld Metal, EN ISO 636-A, W2Mo, Wire Electrode, EN ISO 21952-A, W MoSi, Wire Electrode, EN ISO 21952-B, W 52 1M3, Wire Electrode, SFA/AWS A5.28, ER70S-A1 (ER80S-G), Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Low alloyed steel (0.5 % Mo)
