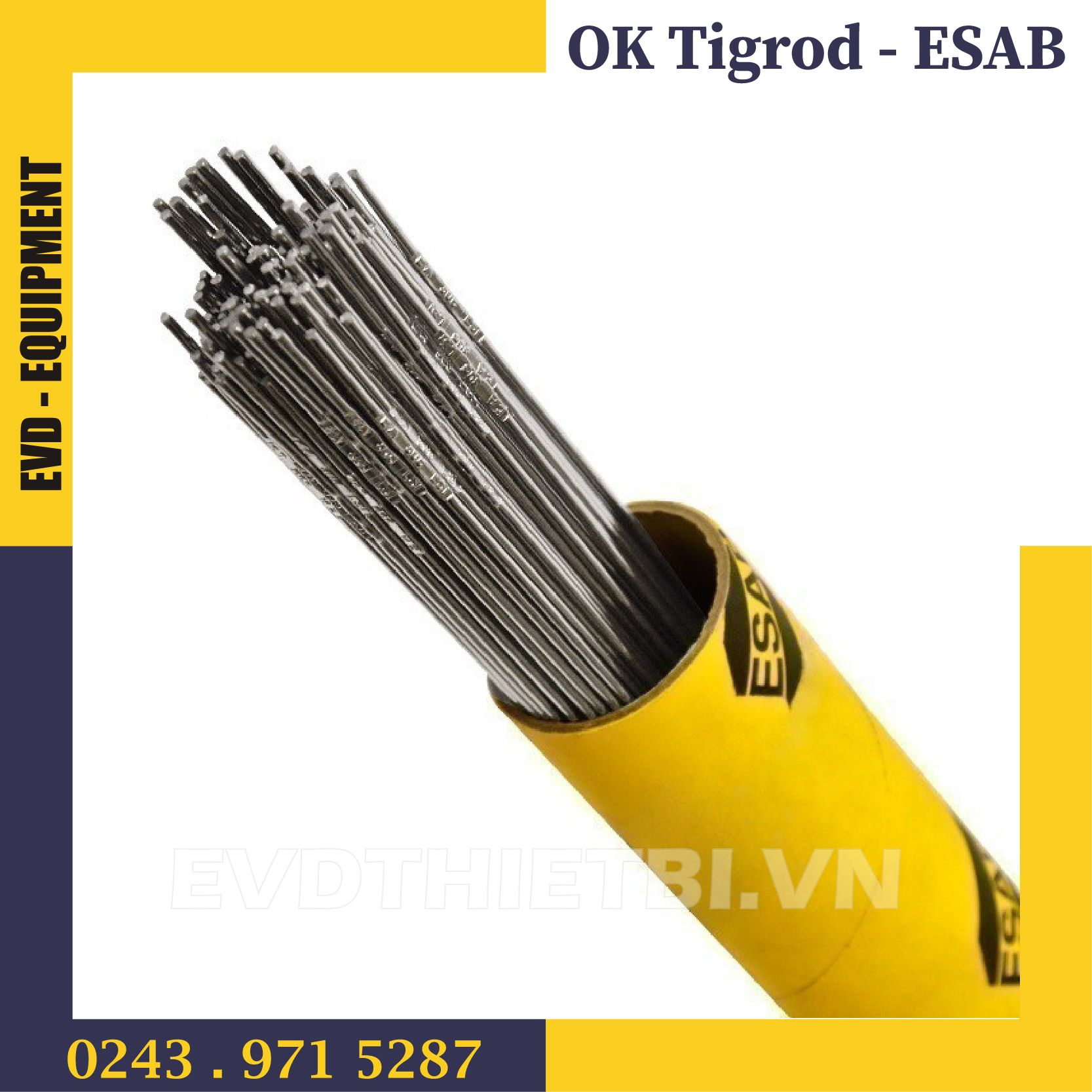

QUE HÀN ESAB OK TIGROD 309L

Mã sản phẩm: ER309L

Giá gốc 0₫

Bare corrosion resisting chromium-nickel welding rod for welding of similar steels of 24% Cr, 13% Ni types. The alloy is also used for welding of buffer layers on CMn steels and welding of dissimilar joints. When using the wire for buffer layers and dissimilar joints it is necessary to control the dilution of the weld. OK Tigrod 309L has a good general corrosion resistance. When used for joining dissimilar materials the corrosion resistance is of secondary importance.

Số lượng

Typical Tensile Properties

As welded
ElongationTensile StrengthYield Strength
40 %590 MPa430 MPa

Typical Charpy V-Notch Properties

As welded
Impact ValueTesting Temperature
160 J20 °C
130 J-60 °C
90 J-110 °C

Typical Weld Metal Analysis %

MnMoCuCSiFN WRC-92NiNCr
1.8 %0.10 %0.08 %0.02 %0.4 %9 %13.4 %0.05 %23.2 %

Approvals:CE, EN 13479, CWB, ER309L, NAKS/HAKC, 1.6MM, VdTÜV, 10021
Classifications:EN ISO 14343-A, W 23 12 L, Wire Electrode, SFA/AWS A5.9, ER309L, Wire Electrode, Werkstoffnummer, ~1.4332, Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.


Alloy Type:Austenitic (with approx. 10 % ferrite) 24 % Cr - 13 % Ni - Low C
