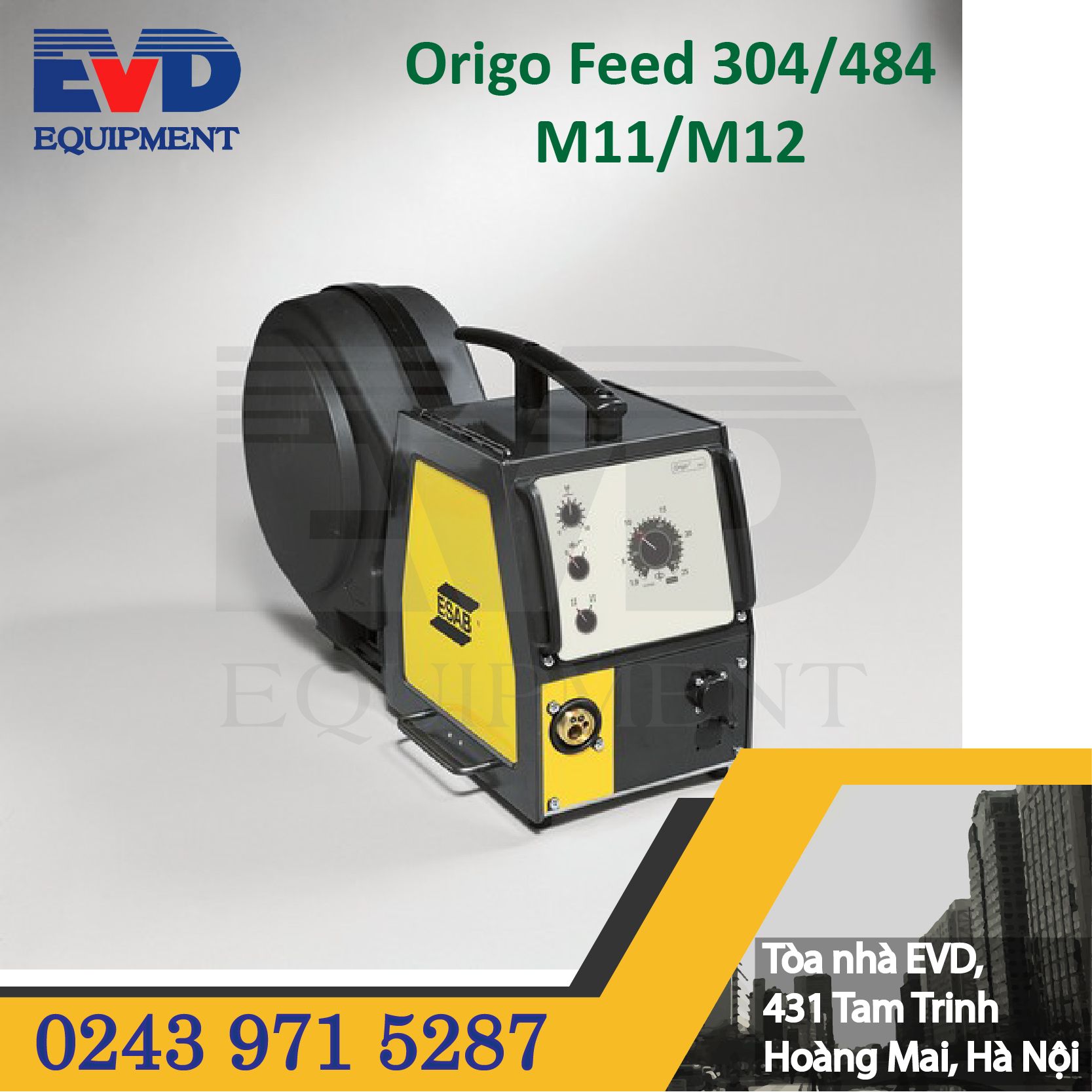

ĐẦU CẤP DÂY HÀN ESAB ORIGO FEED 304/484, M11/M12

Mã sản phẩm: Feed304M11

0₫

  • Suitable for Origo™ Mig 320, 410 and 510
  • 2/4 stroke, simplifies welding
  • Adjustable burn-back time produces correct stick-out
  • Creep start, gradual wire feed for ultimate starts
  • Quick connectors – shortest possible set-up times
  • ESAB LogicPump, ELP, automatically starts the water pump when a water-cooled welding torch is connected
  • TrueArcVoltage System™

MODEL

Số lượng

Dimensions

Height420 mm
Length690 mm
Width275 mm

Input Voltage

Frequency50/60 Hz
Voltage42 V

Weight

Origo Feed 304

Weight15 kg

Origo Feed 484

Weight19 kg

Wire Feeder Specifications

Max Spool Diameter300 mm
Wire Feed Speed1.9 - 25.0 m/min
Wire Spool Capacity18 kg
