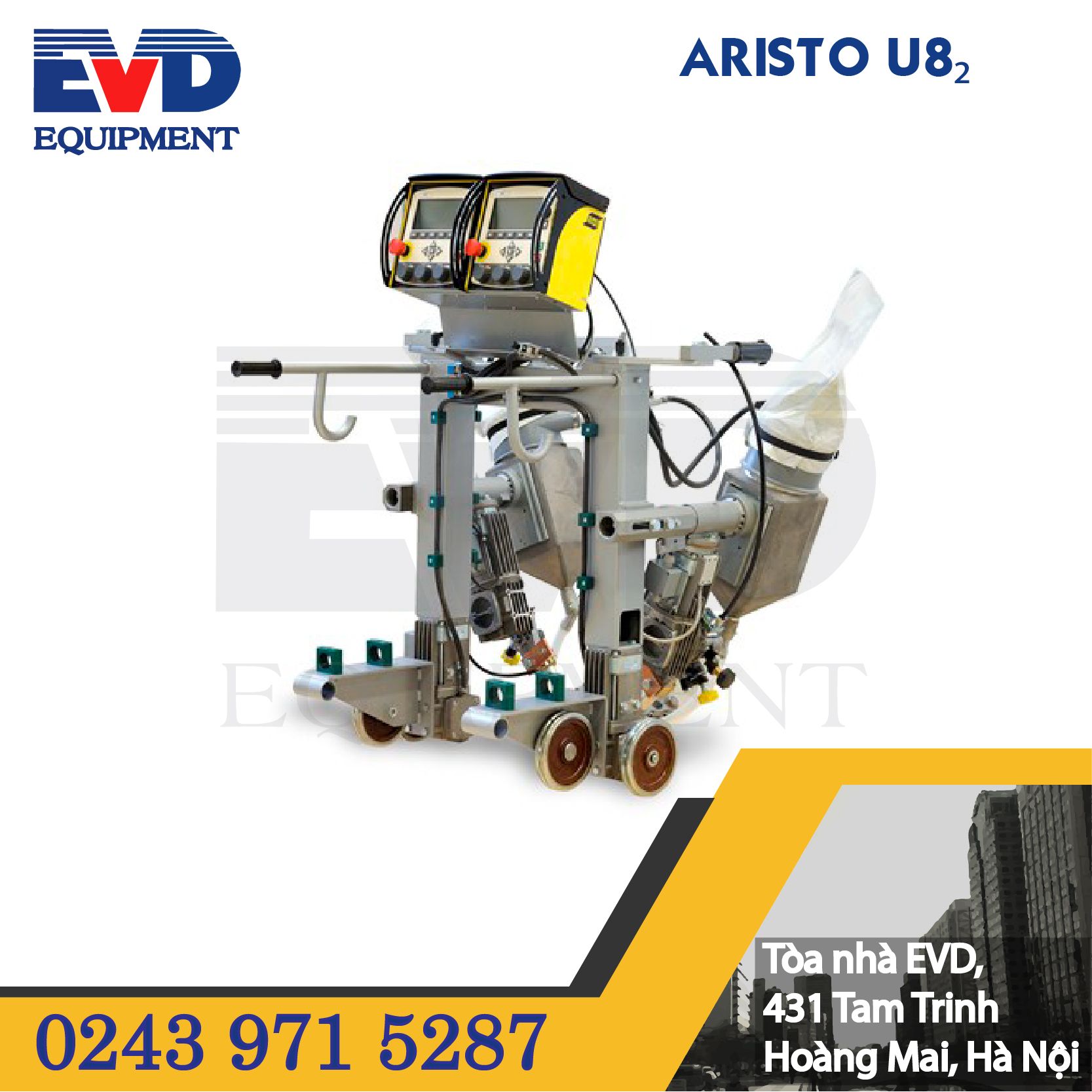

BỘ ĐIỀU KHIỂN HÀN ESAB ARISTO U8₂

Mã sản phẩm: AristoU8

Giá gốc 0₫

The Aristo® U82 control panel is used in combination with Aristo® Feed 3004 and 4804 to set and adjust welding parameters. The U82 is developed to meet the most demanding requirements yet is designed to be simple and easy to use. The system allows you to perform Pulsed or Non pulsed welding with solid or flux cored wire on mild/carbon steel as well as on Stainless. Using solid wire, you can also achieve optimal results in aluminum.
For additional information on controls and functions see separate ESAB Tech Tips, a quick guide on the Aristo U82control panel.

Số lượng

Features

  • Multilingual, menu available in 18 languages
  • Knobs for quick setting of wire-feed speed and voltage
  • USB connectivity for storing weld data
  • Qset™ for optimum short arc setting
  • Standard package synergic lines (92)

Additional U82 Plus features

  • Complete package synergic lines (>230) and user defined synergic lines
  • Limit Editor to set and measure values
  • SuperPulse™ functionality
  • File manager and auto save mode
  • Production statistics

Industries

  • Energy
  • General Cast Iron Repair and Fabrication
  • Mining
  • Mobile Equipment
  • Offshore Oil
  • Railcars
  • Ship/Barge Building
  • Steel Industry
  • Transportation
  • Windtower

Dimensions

Height48 mm
Length244 mm
Width222 mm

Power Specifications

Protection ClassIP 23

Specifications

Operating Temp-10 - +40 °C
StandardsIEC/EN60974-1,-10

Weight

Weight1.2 kg
