ĐẦU CẤP DÂY HÀN ARISTO FEED 3004/4804, U82

Mã sản phẩm: Feed3004U82

Giá gốc 0₫

Features

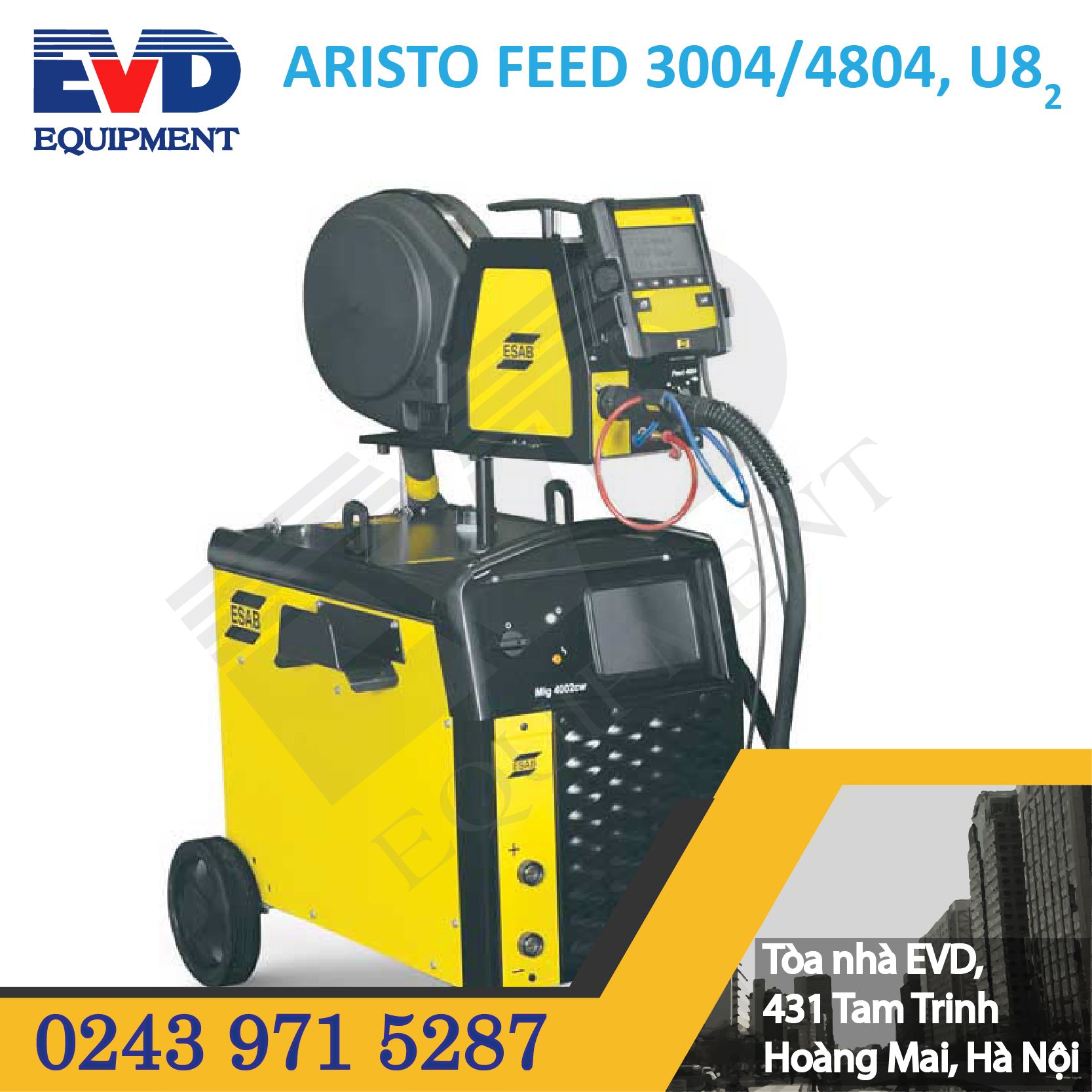

  • Suitable for Mig 3001i/4001i/U4000i/5000i/U5000i/4002c/5002c and 6502c
  • 2/4 stroke, simplifies handling of the welding torch
  • Creep start, gas pre-flow and hot start provide a soft, more direct start with less spatter
  • Crater filling, adjustable burn-back time and post gas provides a smooth finish, extend the service life of the contact tip and guarantee no cracks at the end
  • Pre-programmed synergic lines, to ensure optimal settings with a wide choice of materials, wire dimensions and gas combinations
  • Possibility to create synergic lines
  • Memory for 255 parameter sets
  • Quick connectors – shortest possible set-up times
  • ESAB LogicPump ELP, secures the automatic start of the water pump by connecting a water-cooled welding torch
  • TrueArcVoltage System™, measures the correct arc voltage value, independent of the length of the connection cable, return cable or welding torch

MODEL

Số lượng

Arc Power Specifications

ModelAristo Feed 3004Aristo Feed 4804
Conditional StatementSupply VoltageSupply Voltage
Input Frequency50/60 Hz50/60 Hz
Input VAC42 VAC42 VAC

Dimensions

Aristo Feed 3004

Height420 mm
Length690 mm
Width275 mm

Aristo Feed 4804

Height420 mm
Length690 mm
Width275 mm

Input Voltage

ModelAristo Feed 3004Aristo Feed 4804
Frequency50/60 Hz50/60 Hz
Voltage42 V42 V

Weight

Aristo Feed 3004

Weight15 kg

Aristo Feed 4804

Weight19 kg

Welding Output

Model
Aristo Feed 3004
Aristo Feed 4804

Wire Feeder Specifications

ModelAristo Feed 3004
Wire Feed Speed0.8 - 25.0 m/min
MetalWire Diameter
unall. solid0.6 - 1.6 mm
Stainless Steel0.6 - 1.6 mm
unall. solid0.6 - 2.4 mm
Stainless Steel0.6 - 2.4 mm
Cored Wire0.8 - 1.6 mm
Cored Wire0.8 - 2.4 mm
Aluminum1.0 - 1.6 mm
Aluminum1.0 - 2.4 mm
