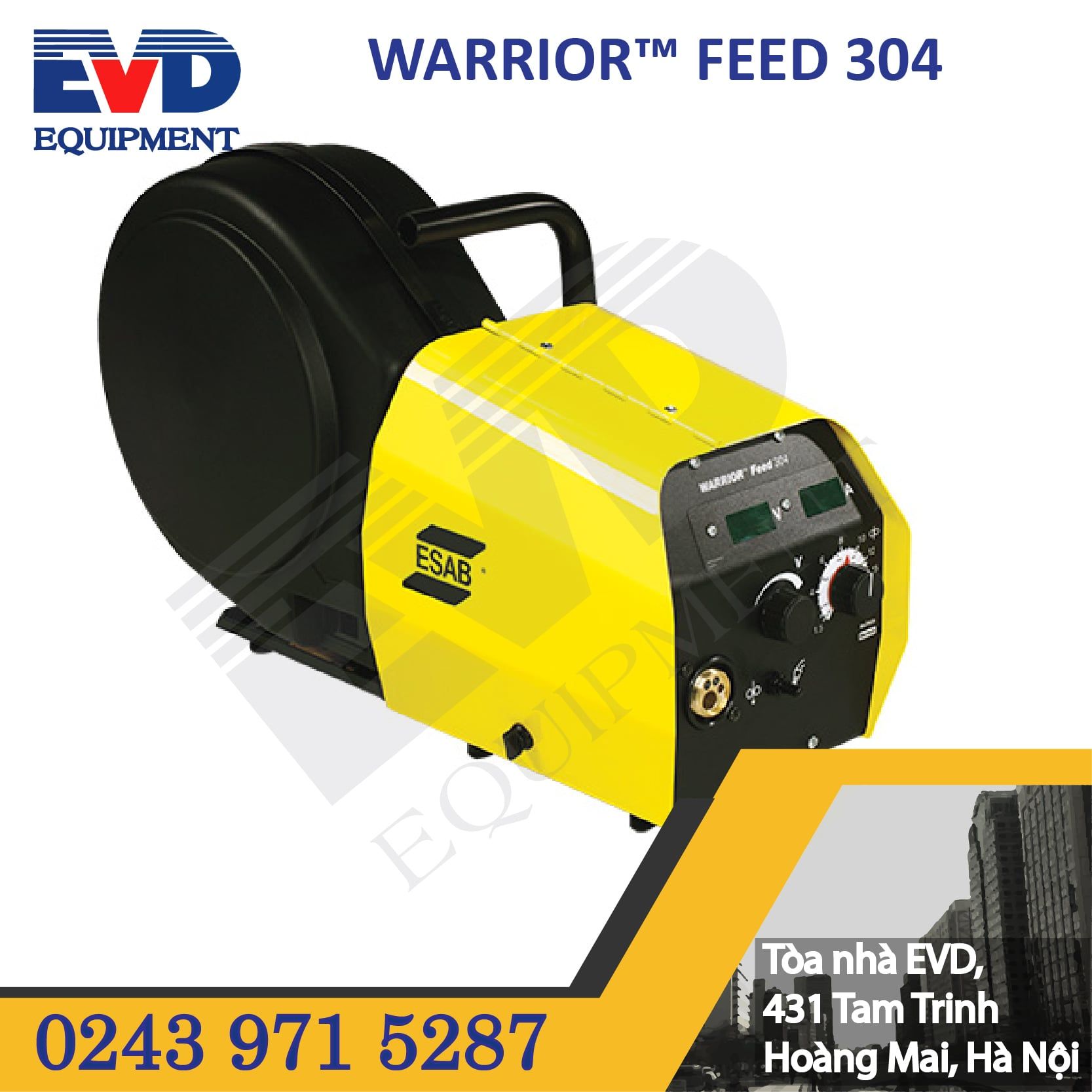

ĐẦU CẤP DÂY HÀN ESAB WARRIOR™ FEED 304

Giá gốc 0₫

The Warrior™ Feed 304 brings you the same benefits as its partner power supply; simple functionality, rugged durability and outstanding performance for 0.8 –1.6 mm wire. Also available in a water cooled version Warrior™ Feed 304w.

Features

  • Standard 4-roll drive provides good feedability.
  • Sun-friendly display and easy-to-use controls (remote voltage, gas purge, inch wire, WFS) trigger lock, and slow run-in make configuration easy.
  • Practical spool cover for use in situations when you need to protect the wire.
  • Short Circuit Technology (SCT) functionality which sharpens the wire at the termination of a weld to promote better arc starts, eliminate clipping wire.

Industries

  • Civil Construction
  • Energy
  • Industrial and General Fabrication
  • Pipeline
  • Repair and Maintenance
  • Ship/Barge Building

Dimensions

Height16.5 in. (418 mm)
Length26.6 in. (675 mm)
Width10.4 in. (265 mm)

Input Voltage

Frequency50/60 Hz
Voltage42 V

Power Specifications

Protection ClassIP23

Specifications

Amps500 A
Percent Duty Cycle60 %
Amps400 A
Percent Duty Cycle100 %

Weight

Warrior Feed 304w

Weight14.7 kg (32.4 lb)

Warrior Feed 304

Weight14.4 kg (31.7 lb)

Welding Output

Duty Cycle60 %
Output Current500 A
Duty Cycle100 %
Output Current400 A

Wire Feeder Specifications

Max Spool Diameter12 (17*) in.
300 (440*) mm
Wire Feed Speed4.9-82 ft/min
1.5-25.0 m/min
Wire Spool Capacity39.7 lb
18 kg
MetalWire Diameter
Mild Steel0.6-1.6 mm
Staniless Steel0.8-1.6 mm
Cored Wire0.9-1.6 mm
Aluminum1.0-1.6 mm

Extra Information

* When used with adapter 0459233880
