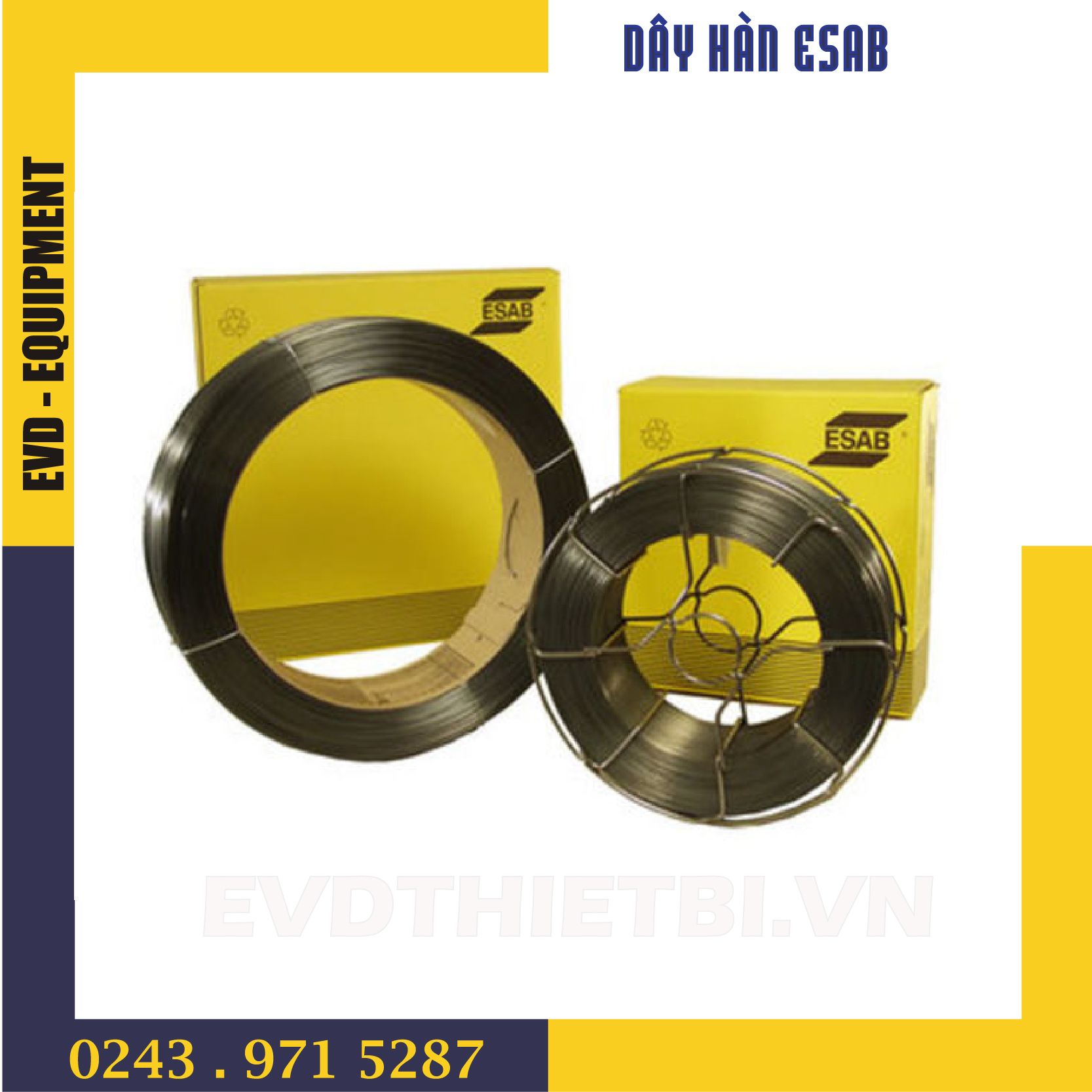

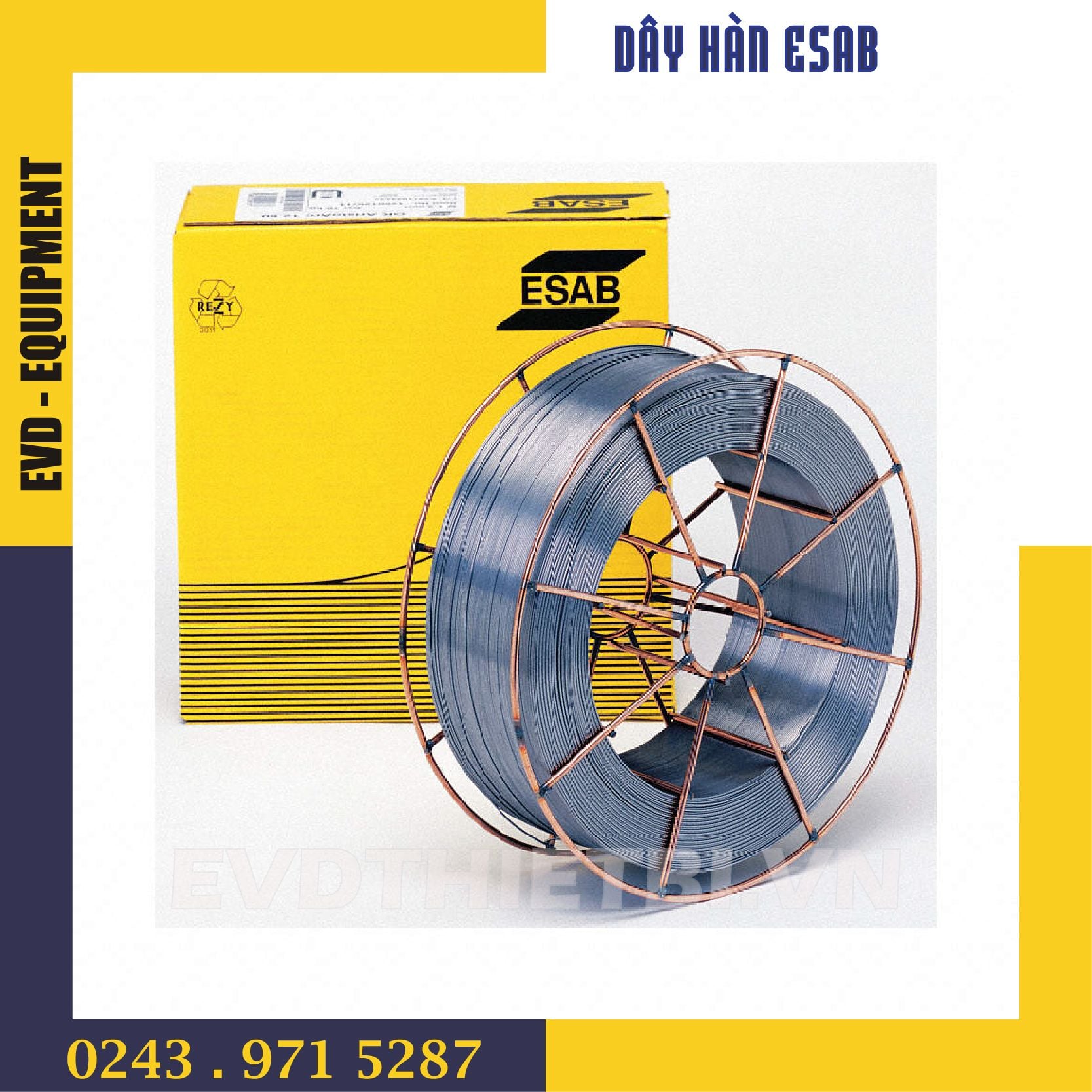

DÂY HÀN ESAB - DUAL SHIELD 7100

Mã sản phẩm: E71T-1C-1.2

Giá gốc 0₫

FCAW wire for mild steel and 490N/mm2 class high tensile strength steel. Dual Shield 7100 is a multi-purpose all position flux cored wire for use with CO2 gas.

PHI

Số lượng

Typical Tensile Properties

AWS C1 shielding gas As welded
ElongationTensile StrengthYield Strength
30 %563 MPa491 MPa

Typical Charpy V-Notch Properties

AWS C1 shielding gas As welded
Impact ValueTesting Temperature
90 J0 °C
58 J-20 °C

Typical Weld Metal Analysis %

C1 Shielding gas
MnCSi
1.270 %0.040 %0.572 %

Deposition Data

Diameter
1.2 mm
1.6 mm


Approvals:ABS, 2YSA H10 (C1), BV, SA2YM HH (C1), CCS, 2S 2YS H10 (C1), ClassNK, KSW52G H10 (C1), DNV-GL, II YMSH10, KR, RSW 51G(52G) HH (C1), LR, 2YS H15 (C1)
Classifications:SFA/AWS A5.20, E71T-1C, Weld Metal, JIS Z 3313, YFW-C50DR, Weld Metal, KS D 7104, YFW-C50DR, Weld Metal, EN ISO 17632-A, T 42 0 P C1 1 H10, Weld Metal

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:C Mn
Welding Current:DC+
