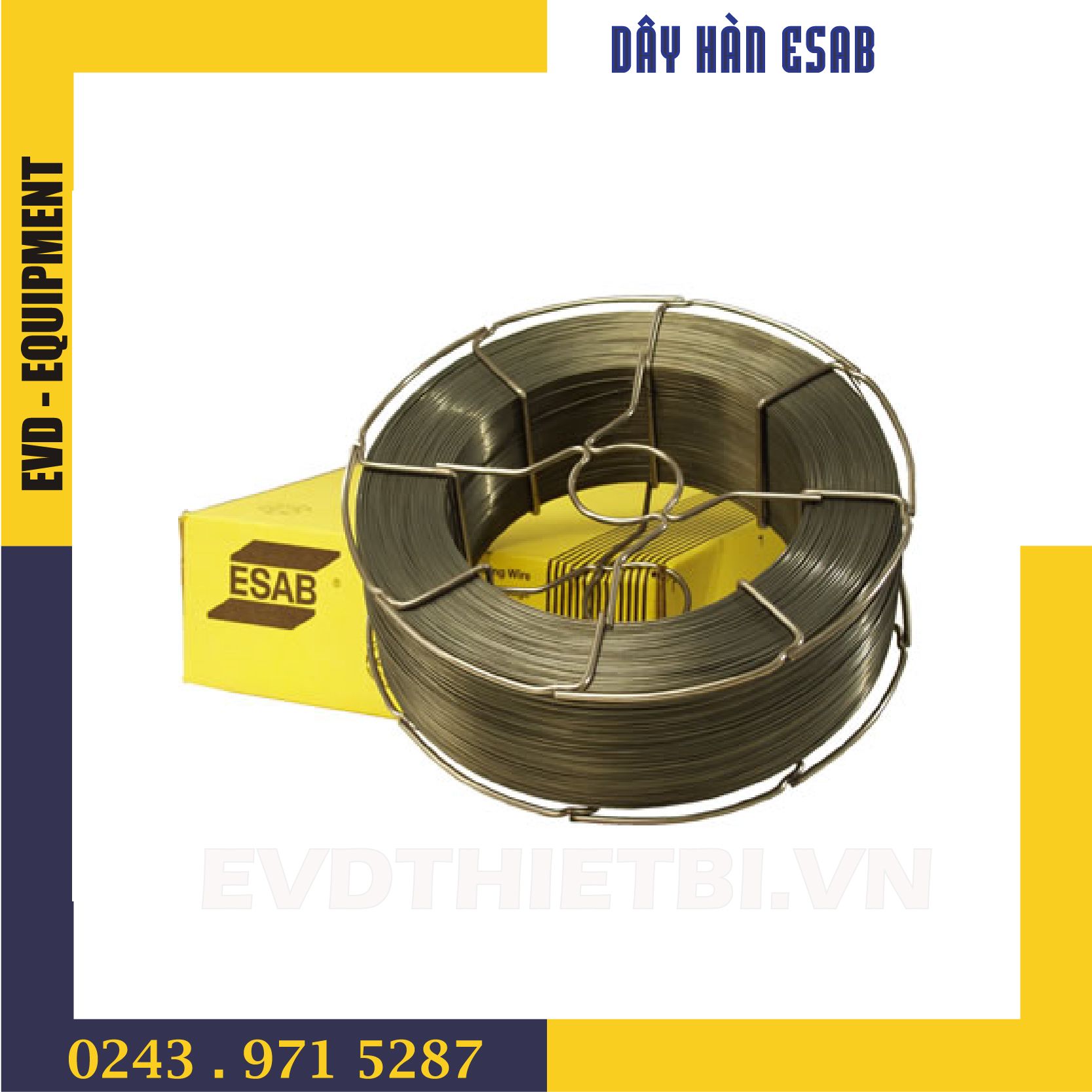

DÂY HÀN ESAB - WELD 71T-1

Mã sản phẩm: E71T1-C1A2-CS1-H8-1.2

Giá gốc 40,000₫


A multi-purpose all positional rutile cored wire for use with CO2shielding gas.
Dây hàn lõi thuốc.
Cuộn 15 Kg.

PHI

Số lượng

Typical Tensile Properties

As welded
ElongationTensile StrengthYield Strength
28 %556 MPa490 MPa

Typical Charpy V-Notch Properties

As welded
Impact ValueTesting Temperature
100 J-20 °C
--29 °C

Typical Weld Metal Analysis %

MnCSi
1.36 %0.05 %0.45 %

Deposition Data

DiameterCurrentDeposition RateVoltageWire Feed Speed
1.4 mm250-370 A3,5-5,8 kg/h27-37 V7,1-11,8 m/min
1.2 mm250-310 A4,2-5,8 kg/h27-33 V11,5-15,9 m/min
1.6 mm250-370 A3,1-5,4 kg/h27-36 V4,8-8,9 m/min

Approvals:ABS, 3YSA H10, BKI, 3YH10SM, BV, S3YM H10, CCS, 3YSH10, CE, EN 13479, CWB, CSA W48-06 E491T-1-H8, DNV, III YMS (H10), GL, 3YH10S, LR, 3YS H10, NAKS/HAKC, 1.2MM, RS, 3Y40MS H10
Classifications:SFA/AWS A5.36, E71T1-C1A2-CS1-H8, Weld Metal, JIS Z 3313, T49J0T1-1CA-U, Weld Metal, EN ISO 17632-A, T 46 2 P C1 1 H10, Weld Metal

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:C Mn
Welding Current:DC+
