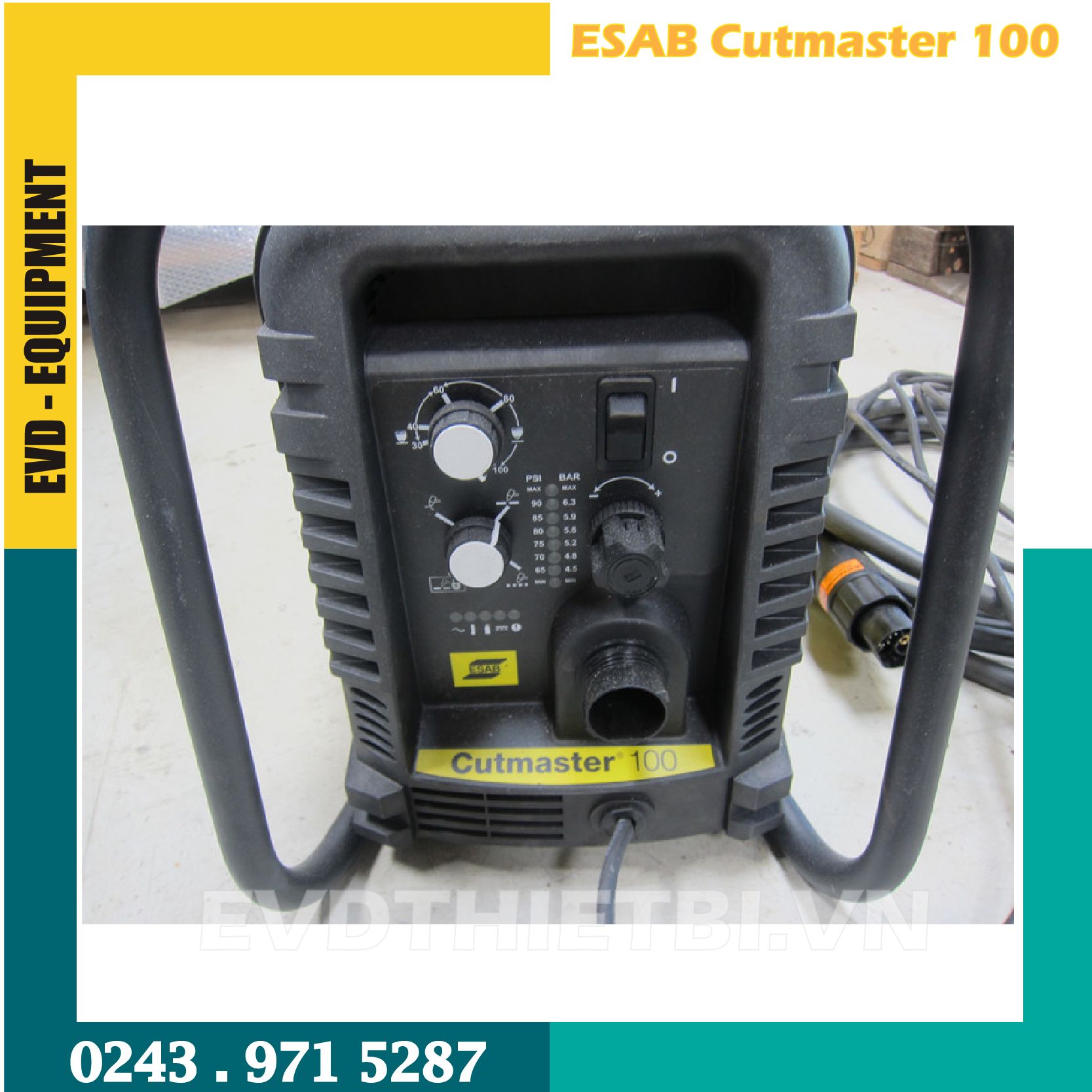

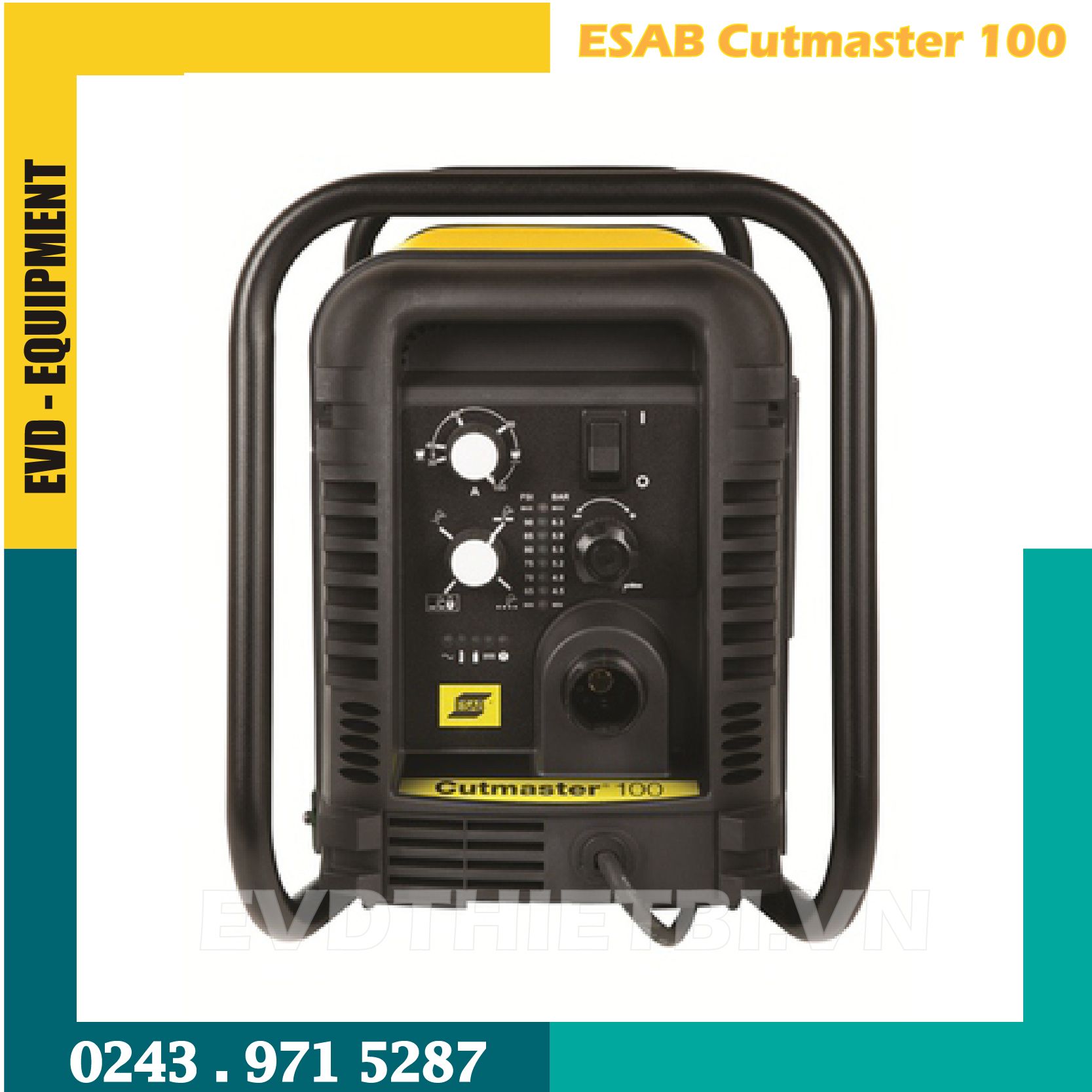

ESAB CUTMASTER 100

Mã sản phẩm: Cutmaster100

Giá gốc 0₫

The ESAB Cutmaster 100 weighs in at 28 kg and provides 100 amps of cutting power. This unit’s light weight compact design makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 45 mm (1 3/4"). More cut capacity than any other system in its class! Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

Số lượng

Features

  • True CutTM – 35mm (1-3/8”)
  • Quick Disconnect Torch for easy maintenance or machine torch conversion
  • Auto-Restrike on mesh or expanded metal for maximum productivity
  • True-GuardTM roll bar for ultimate protection
  • TD Surelok® technology for better quality cuts and longer parts life

Industries

  • Civil Construction
  • General Manufacturing
  • Heavy Fabrication
  • Mining
  • Pipeline
  • Ship/Barge Building

Cutting Specifications

Cuts Manual35 mm
Pierces20 mm
Severs Manual45 mm

Dimensions

Height381 mm
Length762 mm
Width305 mm

Input Ratings

Frequency Hz50/60 Hz
Phase3
Volts400 V

Amperage Draw

Amps27 A
Phase3
Volts400 V

Output Ratings

Amp High100 A
Duty Cycle80 %

Plasma Air Requirements

Torch

Gas Flow212 l/min
Gas Pressure5.2 bar

Plasma Gas Requirements

Torch

Gas Flow212 l/min
Gas Pressure5.2 bar

Weight

Weight28.1 kg


TẢI TÀI LIỆU ==>> ESAB CUTMASTER 100
