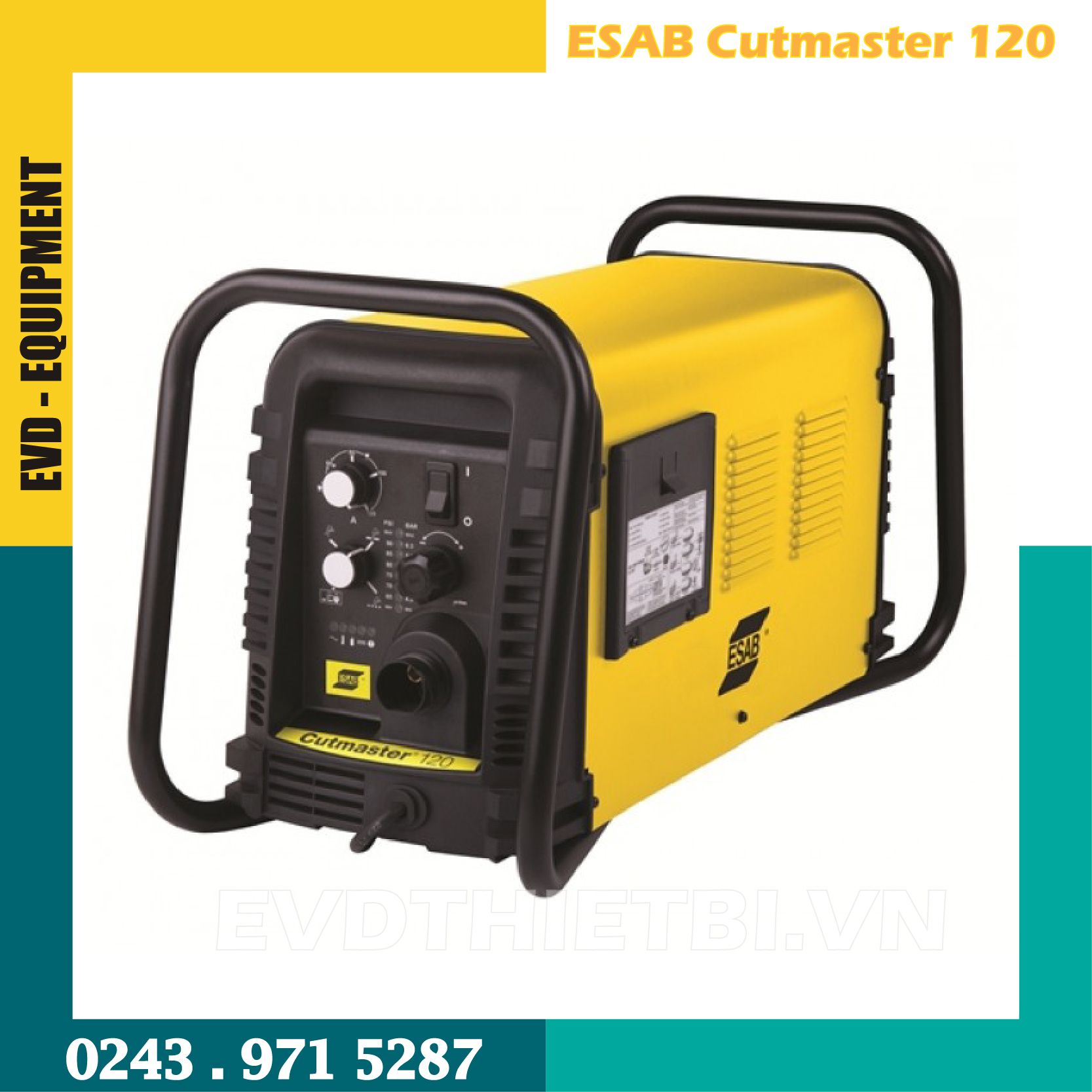

ESAB CUTMASTER 120

Mã sản phẩm: Cutmaster120

Giá gốc 0₫

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

Số lượng

Features

  • True CutTM– 40mm 1-1/2”)
  • Quick Disconnect Torch for easy maintenance or machine torch conversion
  • Auto-Restrike on mesh or expanded metal for maximum productivity
  • True-GuardTM roll bar for ultimate protection
  • TD Surelok® technology for better quality cuts and parts life

Industries

  • Civil Construction
  • General Manufacturing
  • Heavy Fabrication
  • Mining
  • Pipeline
  • Ship/Barge Building

Cutting Specifications

Cuts Manual40 mm
Pierces25 mm
Severs Manual55 mm

Dimensions

Height381 mm
Length762 mm
Width305 mm

Input Ratings

Frequency Hz50/60 Hz
Phase3
Volts400 V

Amperage Draw

Amps32 A
Phase3
Volts400 V

Output Ratings

Amp High120 A
Duty Cycle40 %
Amp High120 A

Plasma Air Requirements

Torch

Gas Flow212 l/min
Gas Pressure5.2 bar

Plasma Gas Requirements

Torch

Gas Flow212 l/min
Gas Pressure5.2 bar

Weight

Weight

28.1 kg


TẢI TÀI LIỆU =>> ESAB CUTMASTER 120
