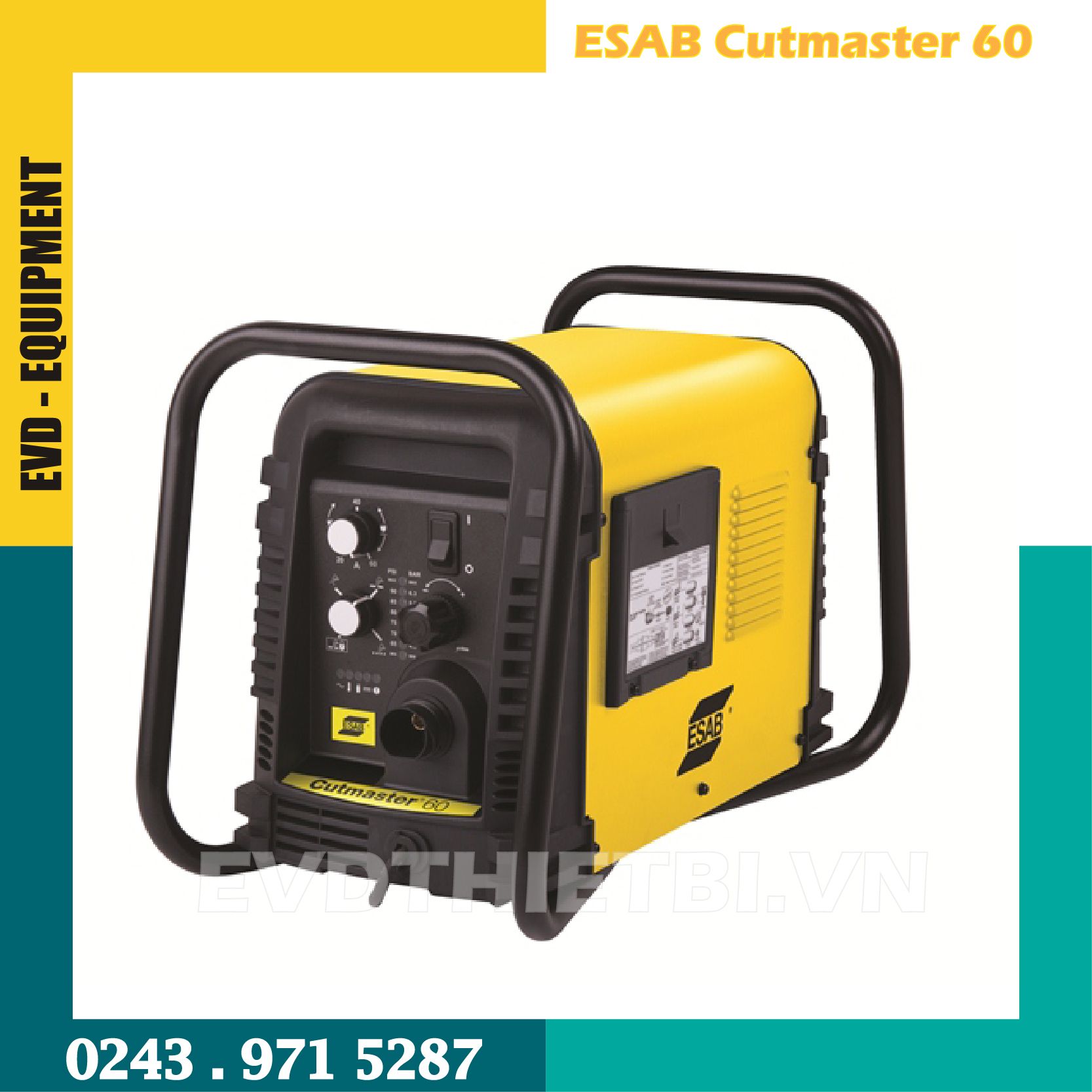

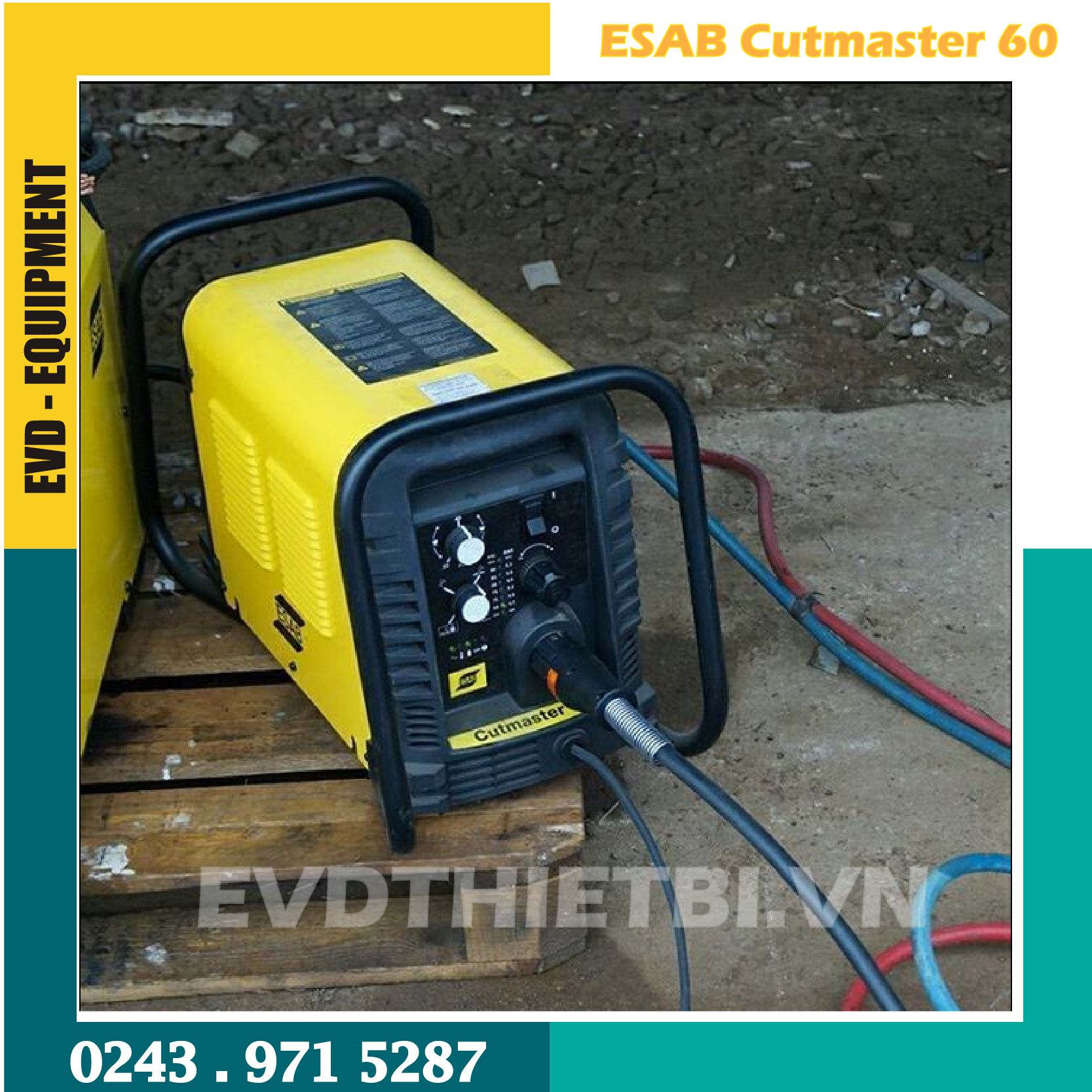

ESAB CUTMASTER 60

Mã sản phẩm: Cutmaster60

Giá gốc 0₫

The ESAB Cutmaster 60 is the most powerful 20mm (3/4”) machine on the market today. This unit cuts through mild, stainless, or aluminum up to 32mm (1 1/4") thick. The Cutmaster 60 combines power with the well known performance and features of the industry-leading 1Torch®. Packages include power source , SL60 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

Số lượng

Features

  • True CutTM – 20mm (3/4”)
  • Quick Disconnect Torch for easy maintenance or machine torch conversion
  • Auto-Restrike on mesh or expanded metal for maximum productivity
  • True-GuardTM roll bar for ultimate protection
  • TD Surelok® technology for better quality cuts and longer tip life

Industries

  • Agricultural Equipment
  • Automotive Bodies
  • Civil Construction
  • Repair and Maintenance

Cutting Specifications

Cuts Manual20 mm
Pierces12 mm
Severs Manual32 mm

Dimensions

Height381 mm
Length610 mm
Width305 mm

Input Ratings

Amperage Draw

Amps16 A
Phase3
Volts400 V
Frequency Hz50/60 Hz
Phase3
Volts400 V

Output Ratings

Amp High60 A
Amp High60 A
Duty Cycle40 %

Plasma Air Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Plasma Gas Requirements

Torch

Gas Flow190 l/min
Gas Pressure5.2 bar

Weight

Weight19.5 kg


Tải tài liệu tại đây ==> ESAB Cutmaster 60
