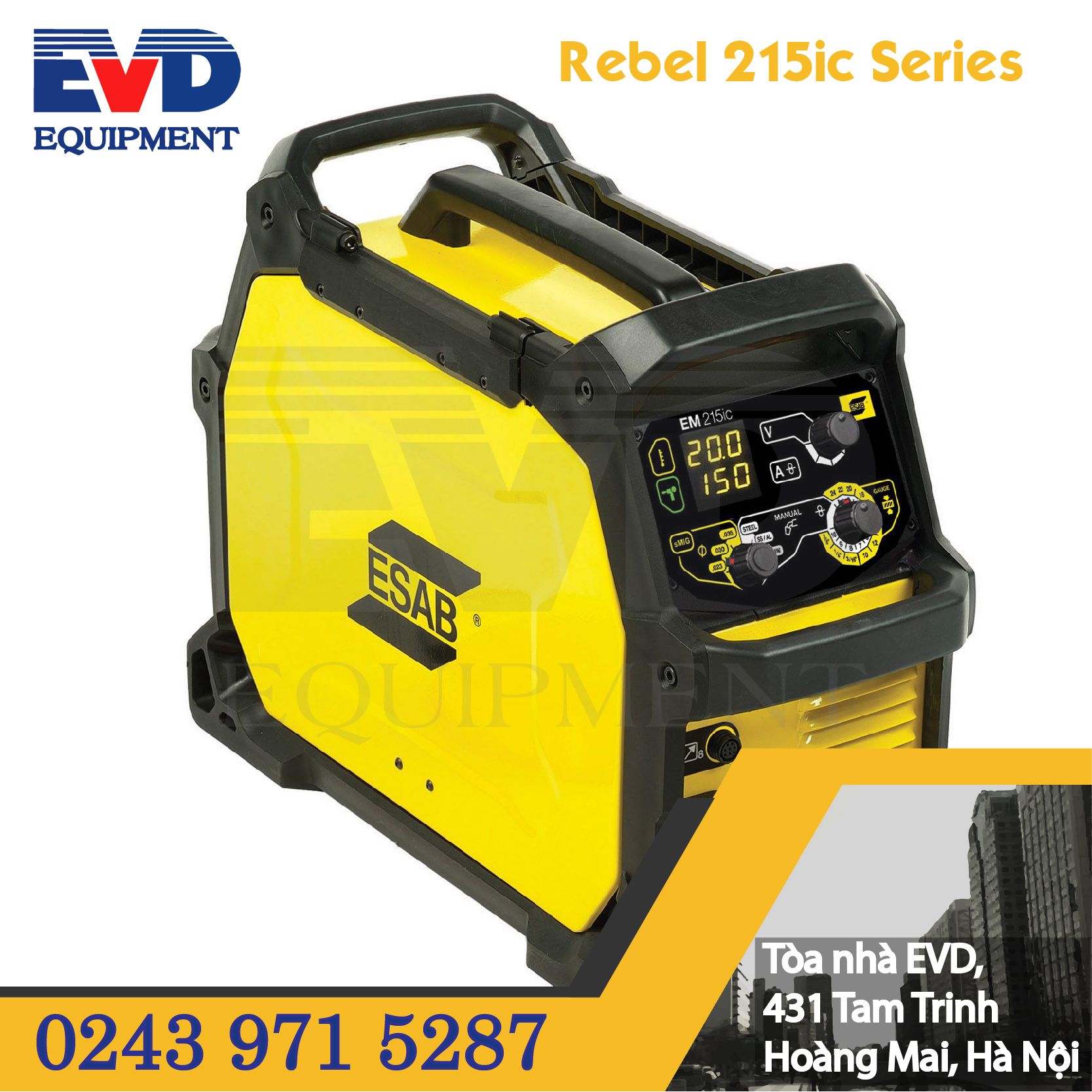

MÁY HÀN ĐA NĂNG ESAB Rebel™ 215ic Series

Mã sản phẩm: Rebel EMC 215ic

Giá gốc 0₫

THE MOST INCREDIBLE GO-ANYWHERE, WELD-ANYTHING MACHINE.

You do not know the meaning of a typical day - what it is like to work 9 to 5 at a desk. You do not know where you will wind up on your next job, but you do know that you will have to be ready for anything. When it comes to welding, that means any process, any power, any material, anywhere, and every time. Meet Rebel. The go-anywhere, weld-anything machine that has everything you need to get the job done - start to finish. It is anything but typical.

Model

Số lượng

A MACHINE THAT DOES IT ALL.

Many machines claim they are multi-process, but are little more than a MIG machine in disguise. Rebel is a true multi-process welder, which means whether you are welding MIG, Flux-Cored, MMA - even those tricky 6010 cellulosic electrodes - or Lift TIG, Rebel will perform like it was born to run that process.



CRAZY SMART TECHNOLOGY.

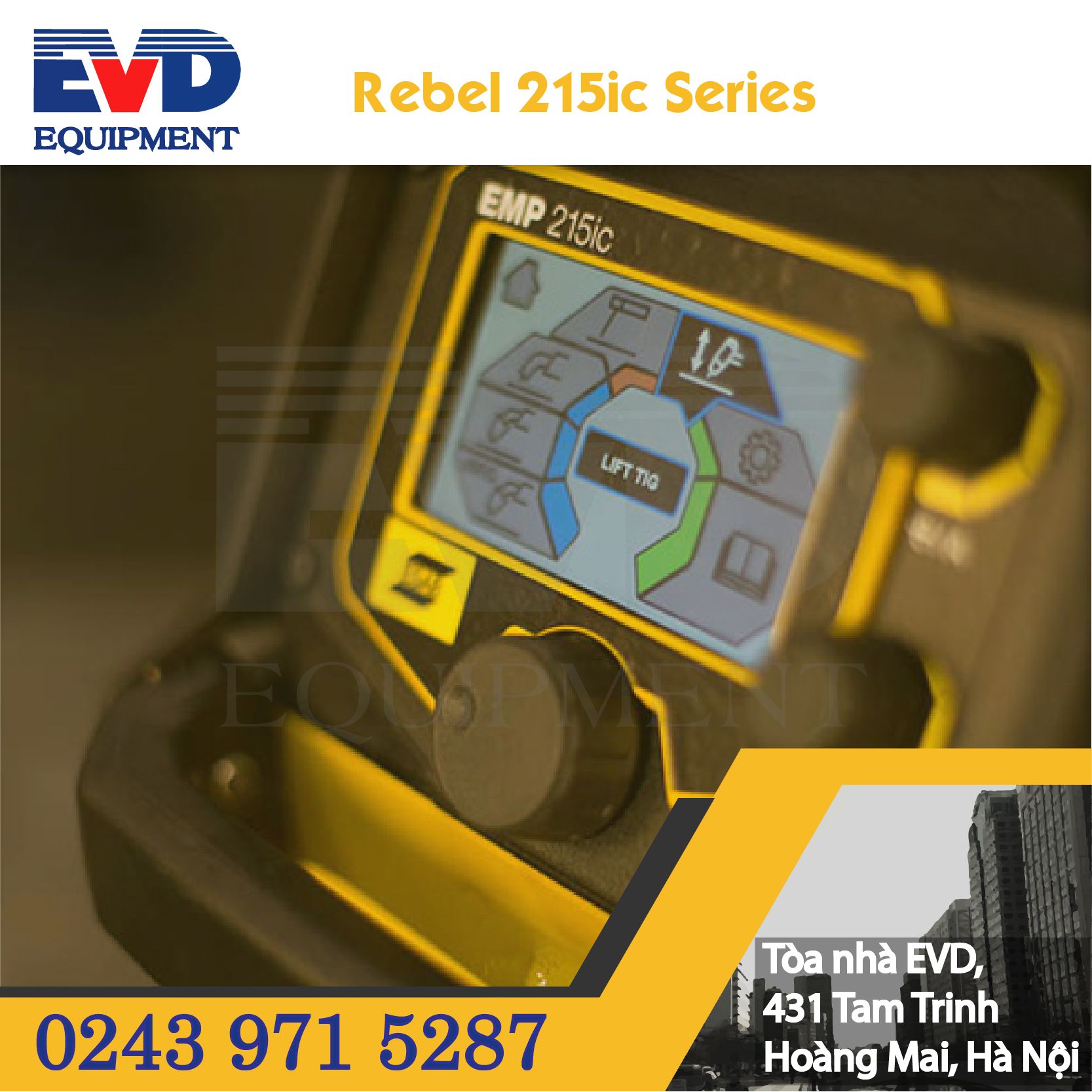

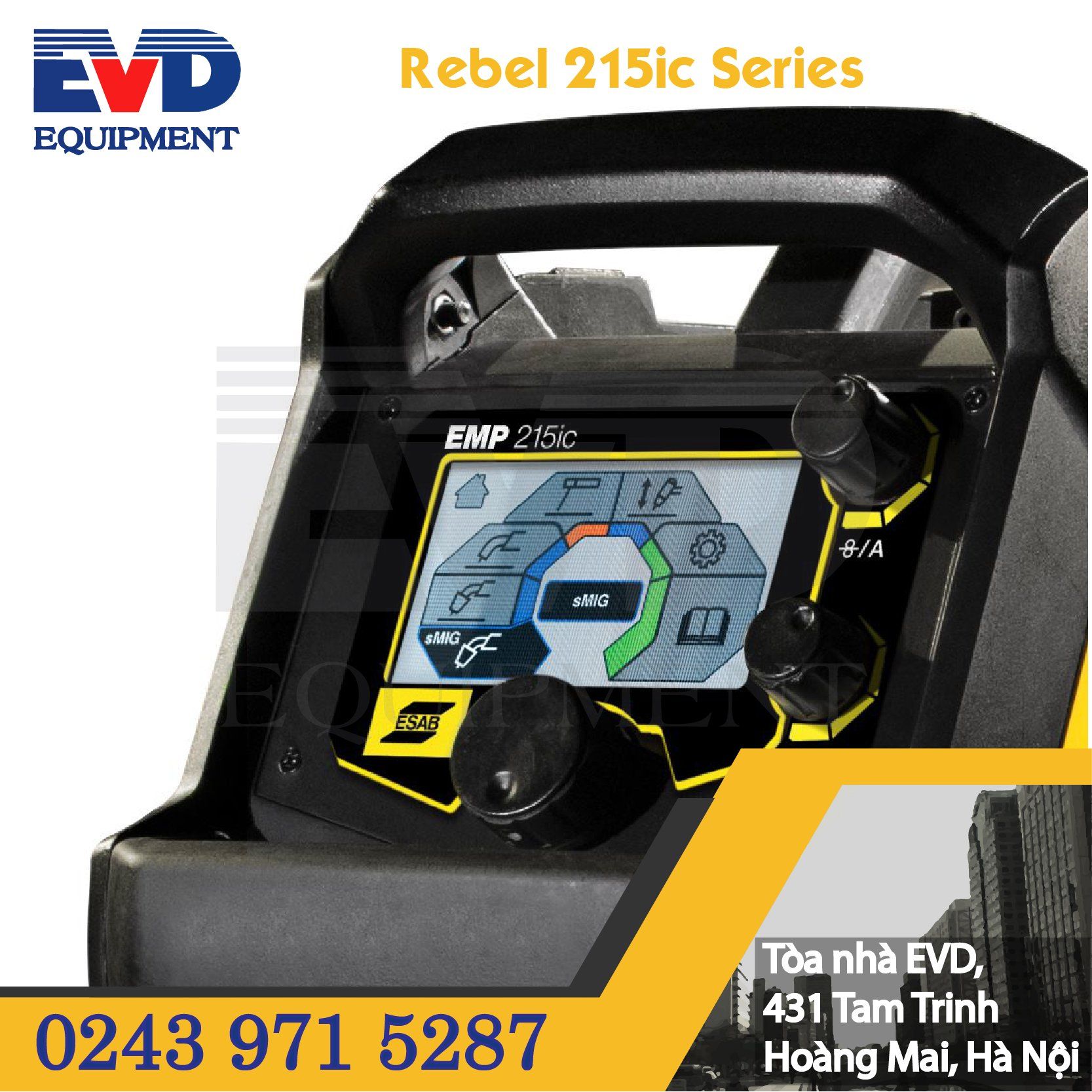

Whether you have been welding for two years or 20, Rebel can make your job easier with sMIG (smartMIG). For the novice, there is basic mode, which makes setup simple. For the experienced, the exclusive, built-in arc control that constantly monitors your weld and adapts for superior, repeatable welds will truly blow your mind. Discover sMIG.



READY FOR ANYTHING.

You never know what welding process your next job will require, or what kind of input power you will have available. That is why we have packed Rebel with the kinds of features that give you the flexibility to go anywhere and weld anything, so whether you have access to 120V or 230V power or even a generator, Rebel's got you covered.



UNMATCHED TOUGHNESS.

You are onsite, out in the field, and in the shop. So you need a machine that you can easily move around and that can withstand some serious wear and tear. Rebel can. With a sturdy, five-handle roll cage, steel unibody construction, and IP23S-level protection, it is the go-anywhere machine for a reason. Plus, it comes with a three-year, handle-to-handle warranty.

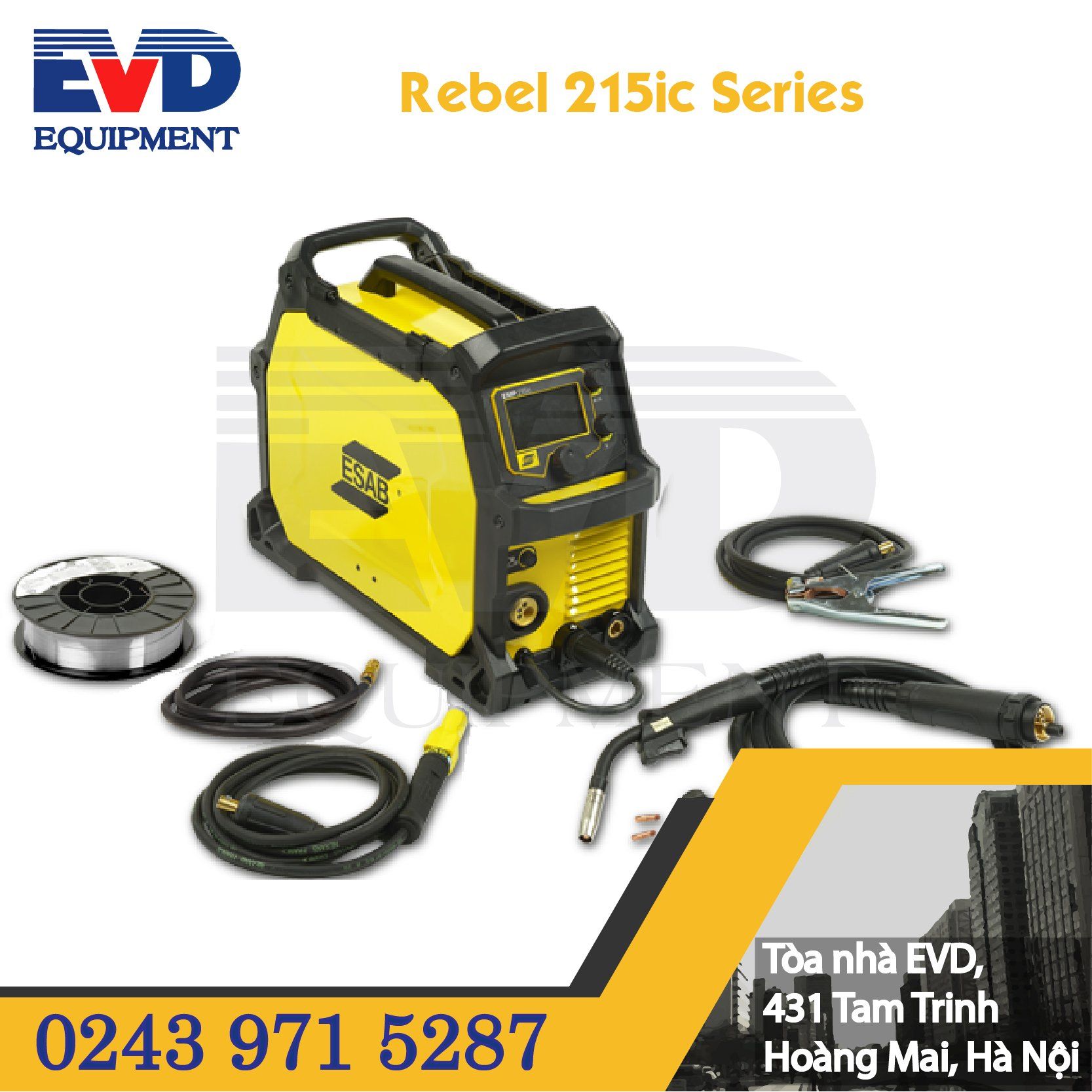

THE TOTAL PACKAGE.

It takes more than a machine to get up and welding. So when you buy a Rebel, you can expect all the equipment you need to get going - right out of the box.

  • MIG torch with 2 additional 0,8 mm contact tips
  • Return cable kit and electrode holder
  • Gas hose with quick connector
  • 12.50 with 0,8 mm wire
  • Drive rolls for 0,6 - 0,8 - 1,0mm wire

Note: All contents listed are for the EMP 215ic. Please see the Documents and Specs tab for a complete listing of package contents for the EM 215ic (MIG only) versions.

Arc Gun Consumables

Max Plate Thickness

Use With Welding Material9.5 mm (3/8 in.)

Arc Holders Clamps & Misc

Cable2m (6.5ft)

Dimensions

Height16 in. (406 mm)
Length23 in. (584 mm)
Width9 in. (229 mm)

Input Voltage

Frequency50/60 Hz
Phase1
Voltage120, 208/230 V

Power Specifications

Max Output (A)240 A
Open Circuit Voltage90 VDC
Protection ClassIP23S
Voltage Tolerance95-270 VAC

Weight

Weight18.2 kg (40 lb)

Welding Output

ModelDuty CycleOutput VoltageWelding Process
EMP 215ic20 %
25 %
30 %
17.2 V
20.5 V
24.3 V
MIG (GMAW/FCAW)
MIG (GMAW/FCAW)
TIG (GTAW)
EMP 215ic20 %
25 %
40 %
15.2 V
20.5 V
24.3 V
MIG (GMAW/FCAW)
MIG (GMAW/FCAW)
TIG (GTAW)
EMP 215ic & EMS 215ic20 %
25 %
25 %
20.5 V
24.3 V
27.2 V
MIG (GMAW/FCAW)
MIG (GMAW/FCAW)
STICK (SMAW)
EMP 215ic & EMS 215ic20 %
25 %
40 %
20.5 V
23.6 V
24.3 V
MIG (GMAW/FCAW)
MIG (GMAW/FCAW)
STICK (SMAW)

Wire Feeder Specifications

Max Spool Diameter4 & 8 in.
100 & 200 mm
Wire Feed Speed59-476 in./min
1.5-12.1 m/min
MetalWire Diameter
Mild Steel.023-.035 in.
0.6-0.9 mm
Stainless Steel.030-.035 in.
0.8-0.9 mm
Aluminum.030-.045 in.
0.8-1.2 mm
Flux Cored.030-.045 in.
0.8-1.2 mm
