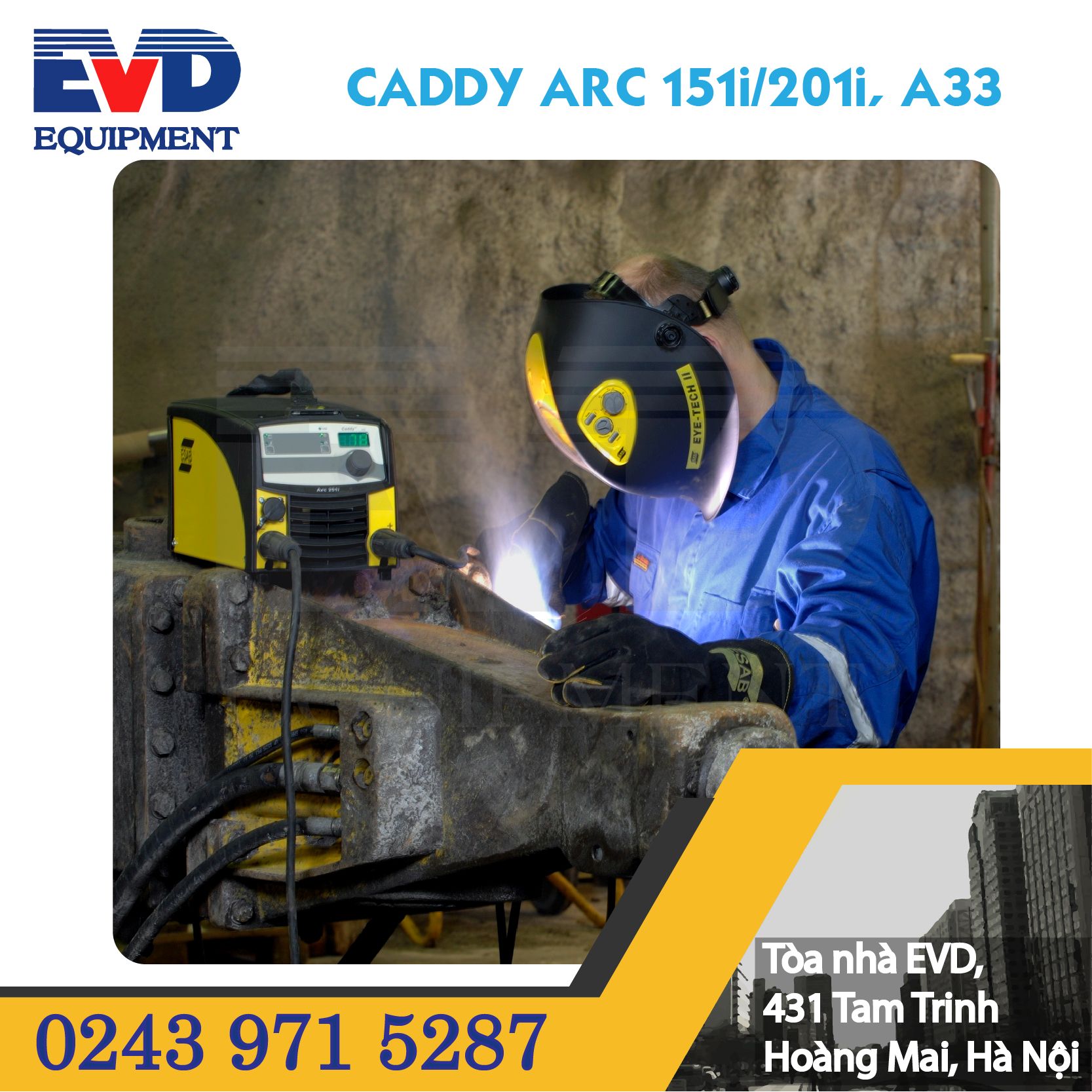

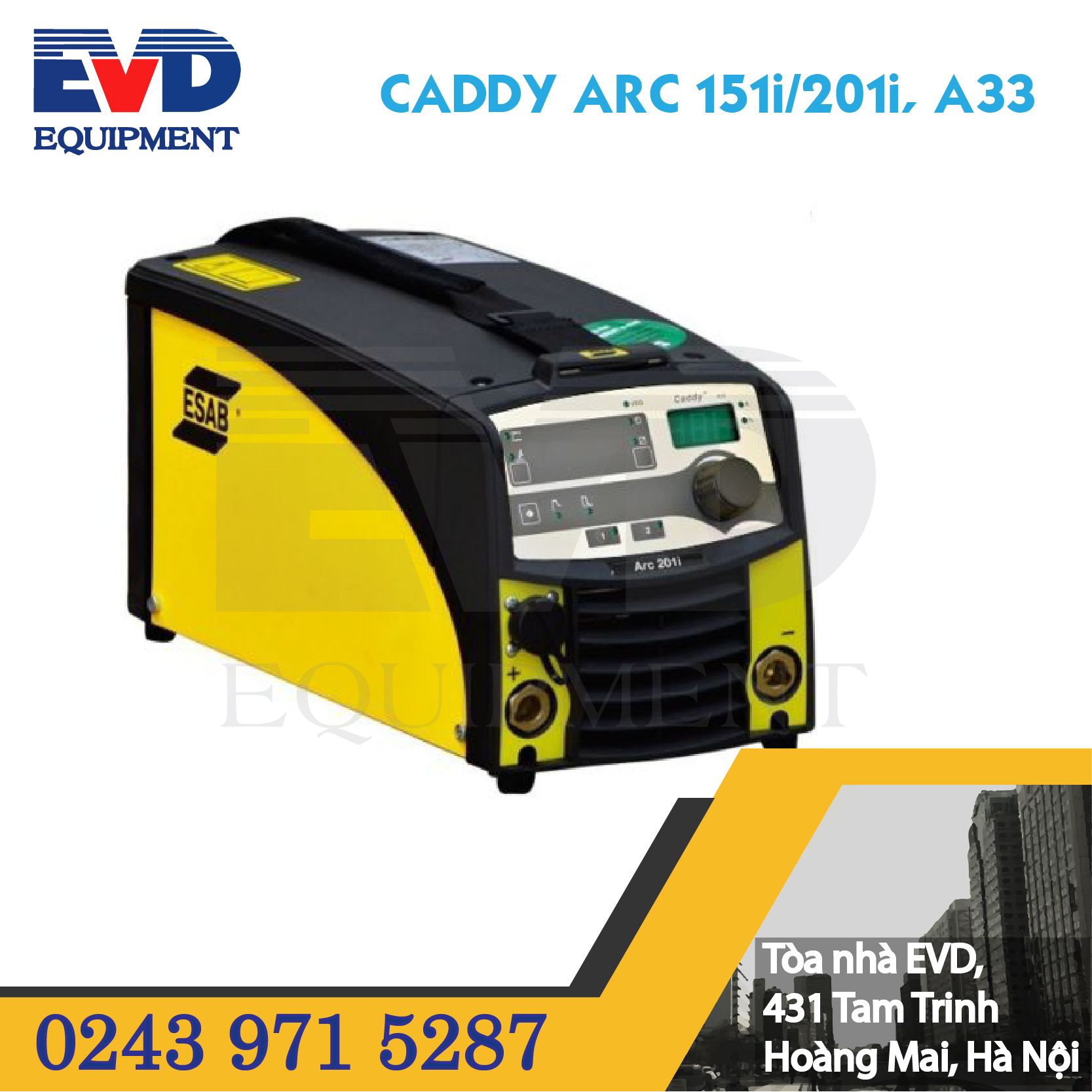

MÁY HÀN ESAB CADDY ARC 151i/201i, A33

Mã sản phẩm: CaddyArc-1

Giá gốc 0₫

Features

  • Compact and portable inverter for MMA and TIG welding with electronically controlled LiveTig™ start.
  • Durable and impact resistant design with OKC 50 cable connectors.
  • Easy to operate. Digital display for settings.
  • Adjustable hot-start and arc force for accurate weld setting.
  • ArcPlus™ II regulator for better welding characteristics. Higher weld quality with less after treatment.
  • Two memories for storing of settings.
  • Remote control possibility.
  • Can operate with extra long mains cables, over 100 m.
  • Caddy® Arc 151i welds most electrodes from Ř 1,6 - 3,2 mm and some 4 mm electrodes.
  • Caddy® Arc 201i welds most electrodes from Ř 1,6 - 4 mm.
  • IP 23 - designed for outdoor use making it safe on all work sites.

Model

Số lượng

Dimensions

Caddy Arc 151i / 201i

Height208 mm
Length418 mm
Width188 mm

Input Voltage

ModelCaddy Arc 151iCaddy Arc 201i
Frequency50/60 Hz50/60 Hz
Phase11
Voltage230 V230 V

Power Specifications

ModelCaddy Arc 151iCaddy Arc 201i
Open Circuit Voltage72 VAC72 VAC
Power Factor at Maximum Current0.990.99
Protection ClassIP 23IP 23

Specifications

MCableX3x2.5

Weight

Caddy Arc 151i

Weight7.9 kg

Caddy Arc 201i

Weight8.3 kg

Welding Output

ModelCaddy Arc 151iCaddy Arc 201i
Duty Cycle100 %
100 %
25 %
25 %
60 %
60 %
100 %
100 %
25 %
25 %
60 %
60 %
Output Current100 A
110 A
120 A
150 A
150 A
90 A
100 A
110 A
120 A
150 A
150 A
90 A
Output Voltage14.4 VDC
14.8 VDC
16 VDC
23.6 VDC
24 VDC
26 VDC
14.4 VDC
14.8 VDC
16 VDC
23.6 VDC
24 VDC
26 VDC
Welding ProcessStick (MMA)
Stick (MMA)
Stick (MMA)
TIG (GTAW)
TIG (GTAW)
TIG (GTAW)
Stick (MMA)
Stick (MMA)
Stick (MMA)
TIG (GTAW)
TIG (GTAW)
TIG (GTAW)
