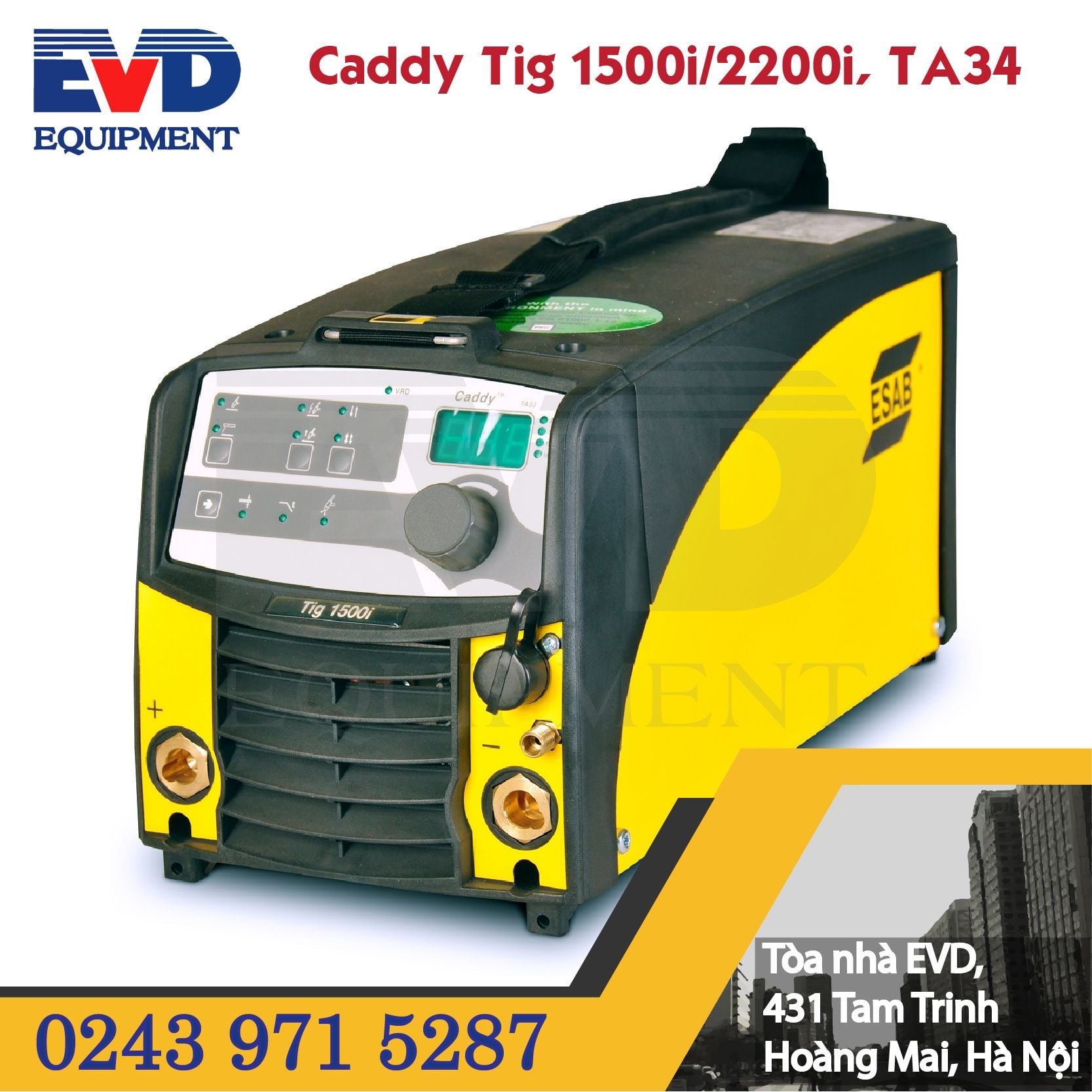

MÁY HÀN ESAB CADDY TIG 1500i/2200i, TA34

Mã sản phẩm: CaddyTIG-1500iTA34

Giá gốc 0₫

Compact and portable inverter for advanced TIG welding, with HF or LiftArc start, and MMA.

Features

  • Compact and portable inverter for advanced TIG welding, with HF or LiftArc™ start, and MMA
  • Durable and impact resistant design with OKC 50 cable connectors
  • Easy to operate. Graphical parameter setting for advanced TIG welding
  • Digital display for settings
  • Remote control possibility
  • Pulsed TIG giving increased control of heat input and weld pool
  • Two memories for storing of settings
  • Micro Pulse minimising heat affected zone especially on thin material
  • Adjustable slope up/down and gas post-flow
  • ArcPlus™ II regulator for better MMA welding characteristics. Higher weld quality with less after treatment
  • Caddy® Tig 1500i welds most electrodes from Ø 1,6 - 3,2 mm and some 4 mm electrodes
  • Caddy® Tig 2200i welds most electrodes from Ø 1,6 - 4 mm
  • Can operate with extra long mains cables, over 100m
  • IP 23 - designed for outdoor use making it safe on all work sites

Model

Số lượng

Dimensions

Height208 mm
Length418 mm
Width188 mm

Efficiency Rating

Efficiency Max Current77 %
Process(1500i) TIG
Efficiency Max Current80 %
Process(1500i) MMA
Efficiency Max Current75 %
Process(2200i) TIG
Efficiency Max Current81 %
Process(2200i) MMA

Fuse Specifications

Fuse Slow - Amps16 A

Input Voltage

Frequency50/60 Hz
Phase1
Voltage230 V

Power Specifications

ModelCaddy Tig 1500iCaddy Tig 2200i
Open Circuit Voltage72 V72 V
Power Factor at Maximum Current0.980.99
Protection ClassIP 23IP 23

Specifications

ModelCaddy Tig 1500i
Application ClassificationS
MCableX3x2.5
Operating Temp-10 to +40 °C
StandardsIEC/EN 60974-1, IEC/EN 60974-3, IEC/EN 60974-10

Weight

Caddy Tig 1500i

Weight9.2 kg

Caddy Tig 2200i

Weight9.4 kg

Welding Output

ModelDuty CycleOutput CurrentOutput VoltageTemperatureWelding Process
Caddy Tig 1500i25 %150 A26 VDC40 °CMMA (SMAW)
Caddy Tig 1500i60 %120 A24 VDC40 °CMMA (SMAW)
Caddy Tig 1500i25 %150 A16.0 VDC40 °CTIG (GTAW)
Caddy Tig 1500i60 %120 A14.8 VDC40 °CTIG (GTAW)
Caddy Tig 2200i25 %170 A26.8 VDC40 °CMMA (SMAW)
Caddy Tig 2200i60 %130 A25.2 VDC40 °CMMA (SMAW)
Caddy Tig 2200i25 %220 A18.8 VDC40 °CTIG (GTAW)
Caddy Tig 2200i60 %150 A16.0 VDC40 °CTIG (GTAW)

Extra Information

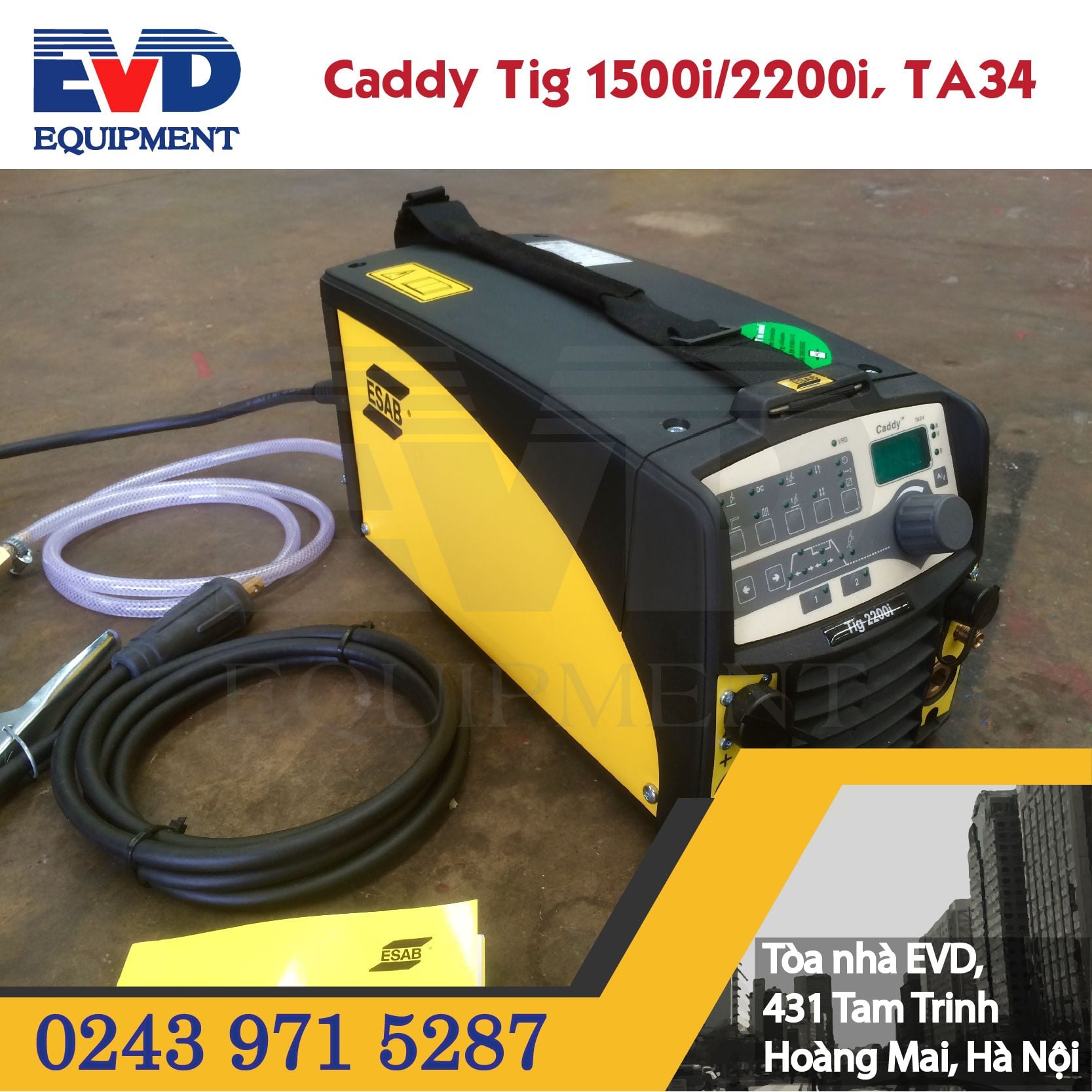

3 m mains cable with plug, 2 m gas hose and two hose clamps.
