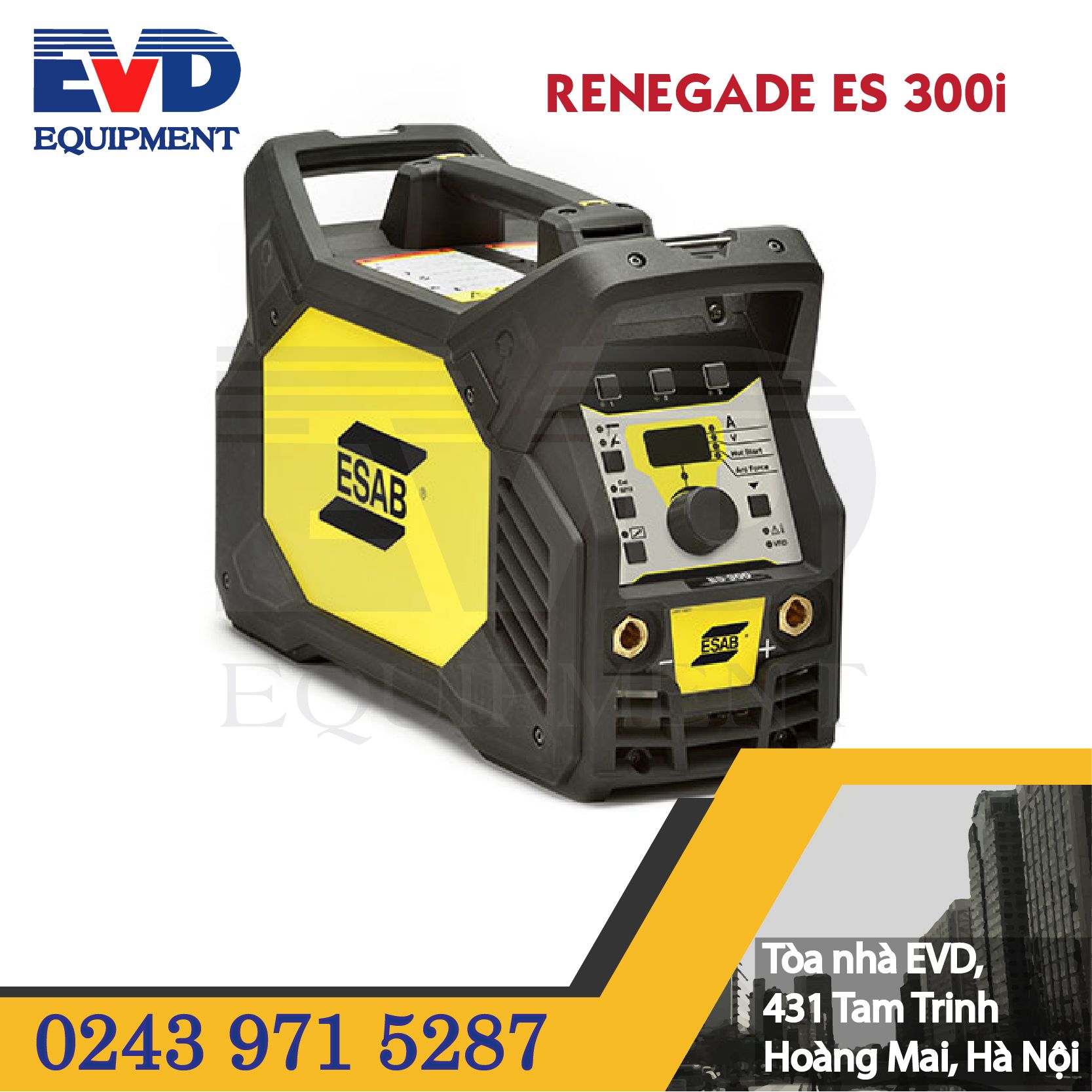

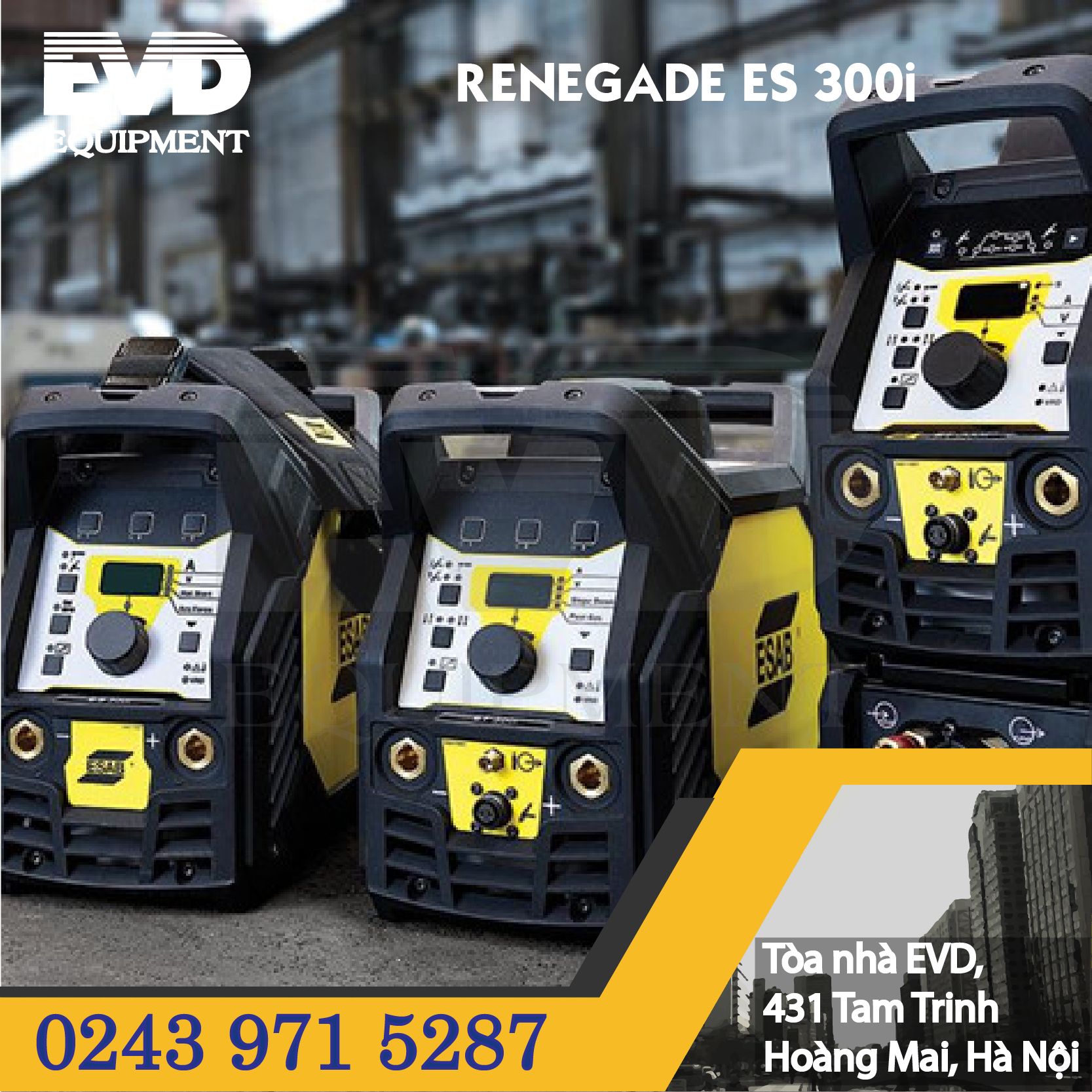

MÁY HÀN ESAB RENEGADE ES 300i

Mã sản phẩm: RENEGADE ES 300i

Giá gốc 0₫

Renegade ES 300i is an inverter based MMA/Stick and LiveTIG machine with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off site applications.

The machine has an automatic input voltage sensor and can operate with any input voltage between 230 V and 480 V 3-phase.

Features

  • Extreme power to weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments
  • For professional MMA welding with electrodes up to 6 mm with a high duty cycle of 300 A at 40%. Ideal for operation in high ambient temperatures
  • The machine automatically provides operators with the optimal start and stop parameters based on the set welding current
  • A booster circuit provides additional voltage for superior cellulosic arc starts and welding performance
  • 3 memory settings for easy and quick access to welding parameters

Industries

  • Civil Construction
  • Heavy Fabrication
  • Industrial and General Fabrication
  • Mining
  • Pipe Construction
  • Repair and Maintenance
  • Ship and Offshore Yards
  • Steel Erectors

Số lượng

Dimensions

Height12.6 in. (320 mm)
Length18.1 in. (460 mm)
Width7.9 in. (200 mm)

Fuse Specifications

Fuse Slow - Amps10 A
Fuse Slow - Amps20 A
Fuse Slow - Volts230 V

Input Voltage

Frequency50/60 Hz
Phase3
Voltage230-480 V

Power Specifications

MMA

Efficiency at Maximum Current89 %

LiveTIG

Efficiency at Maximum Current85 %
Current Range(A)5-300 A
Energy Save Mode91 W
Max Output (A)300 A
Open Circuit Voltage48 V
Power Factor at Maximum Current0.96
Protection ClassIP23

VRD

Open Circuit Voltage32 V

Specifications

Application ClassificationS
StandardsCE

Weight

Weight15 kg (33 lb)

Welding Output

Duty Cycle40 %
Output Current300 A
Output Voltage32.0 V
Welding ProcessStick (MMA)
Duty Cycle60 %
Output Current250 A
Output Voltage30.0 V
Welding ProcessStick (MMA)
Duty Cycle100 %
Output Current200 A
Output Voltage28.0 V
Welding ProcessStick (MMA)
Duty Cycle40 %
Output Current300 A
Output Voltage22.0 V
Welding ProcessLiveTIG
Duty Cycle60 %
Output Current250 A
Output Voltage20.0 V
Welding ProcessLiveTIG
Duty Cycle100 %
Output Current200 A
Output Voltage18.0 V
Welding ProcessLiveTIG
