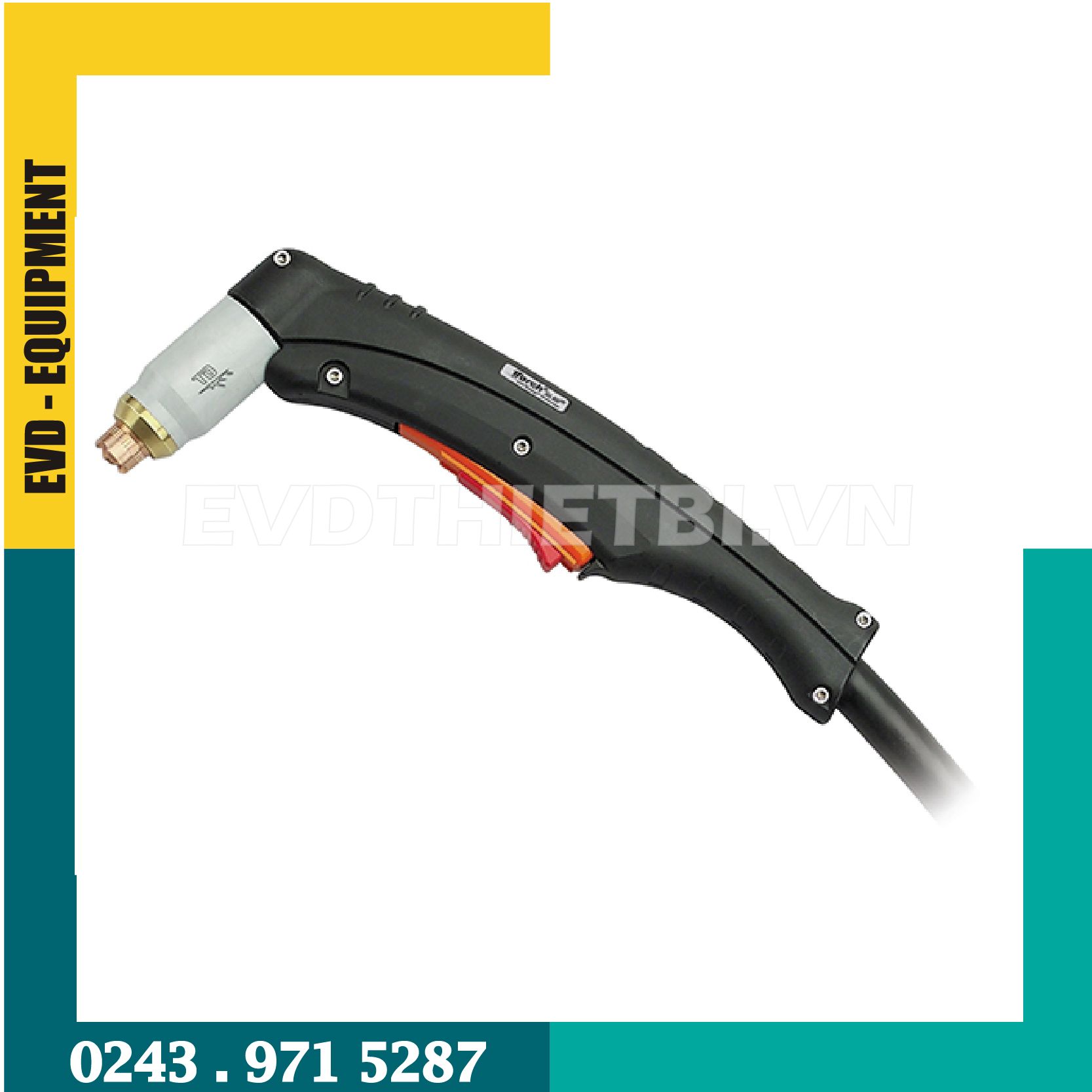

Mỏ cắt ESAB PT-26 Plasmarc Manual Cutting Torch

Giá gốc 0₫

This versatile, easy-to-use 300 Amp torch provides superior performance for a full range of manual and mechanized cutting applications.

Features

  • Excellent cutting capability–cuts up to 3 1/2 in. (88.9 m) and severs 4 in. (101.6 m) using air, nitrogen or argon-hydrogen at 300 Amps
  • Produces clean, high quality cuts
  • Patent pending safety circuit for enhanced
  • operator safety
  • Operates with shop or cylinder air, nitrogen or argon-hydrogen at 300 Amps
  • Compact, lightweight design for ease of handling
  • Long life electrodes lower operating costs
  • Pilot arc starting–even starts on paint
  • Gouging nozzle available
  • Intermittent cutting capacity for grate or expanded metal applications
  • Gouging guard and stand-off guide available for operator convenience
  • Consoles|The PT-26 can be used with the following consoles:
  • ESP-150
  • ESP-200
  • Deuce Pack 150

Số lượng

Output Ratings

Current Capacity (DCSP)@ 100% Duty Cycle

Output Current AC200 A

Current Capacity (DCSP)@ 60% Duty Cycle

Output Current AC300 A

Maximum Rated Current (DCSP)

Output Current AC300 A

Plasma Gas Requirements

Min. Gas Flow Requirements (plasma)

Gas Flow240 cfh (112 l/min)
Gas Pressure5.6 bar (80 psig)

Min. Gas Flow Requirements (shield)

Gas Flow200 cfh (94 l/min)
Gas Pressure6 bar (85 psig)

Min. Allowable Inlet Gas Pressure

Gas Pressure100 psig (6.9 bar)

Start Gas Pressure

Gas Pressure2.8 bar (30 psig)

Weight

Service Leads (25ft)

Weight14 lb

Service Leads (50ft)

Weight28 lb
