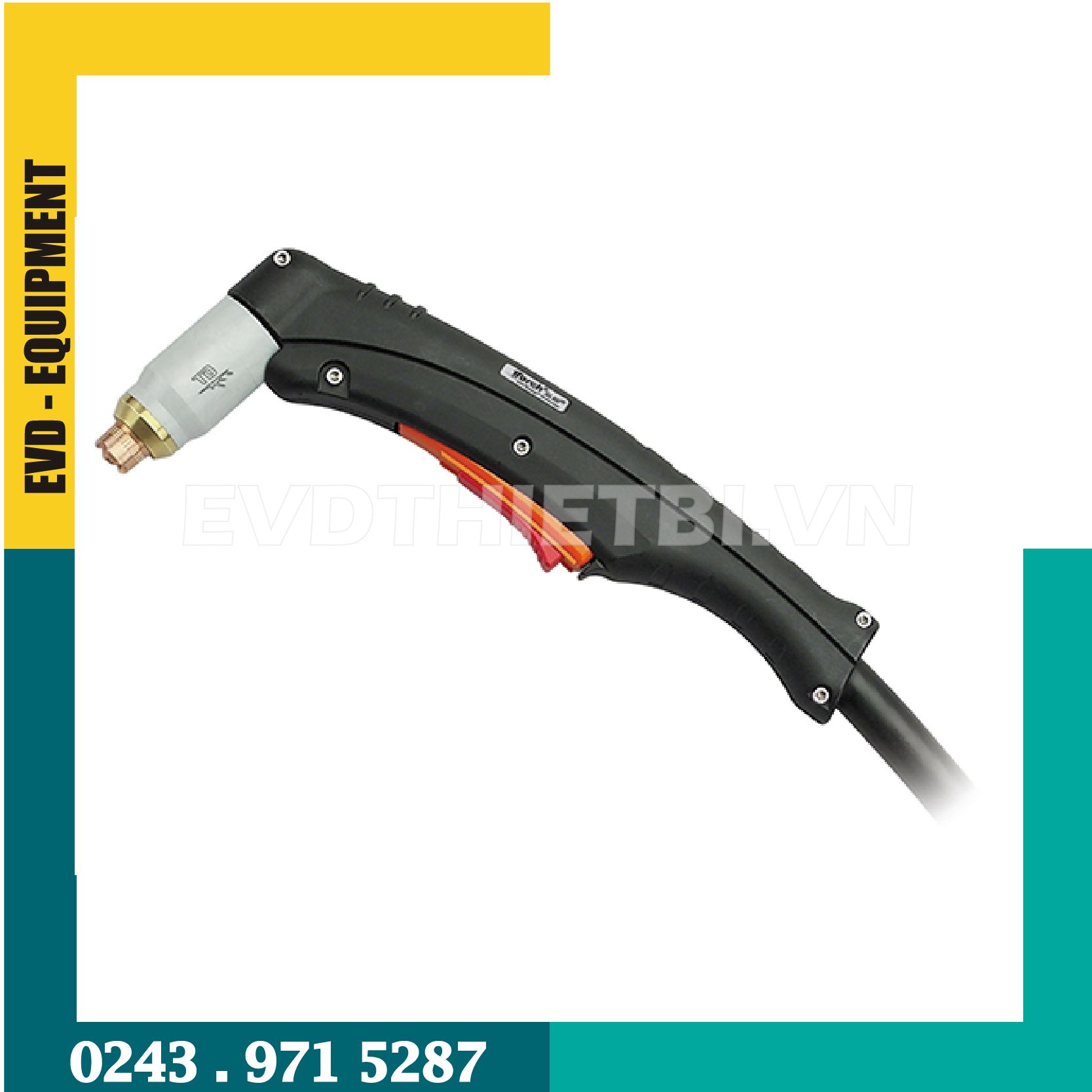

Mỏ cắt ESAB PT-27 Plasmarc Manual Cutting Torch

Giá gốc 0₫

Designed for superior cutting performance and ease of handling, the PT-27 produces clean, exceptionally high quality cuts.


  • Most compact 80 Amp torch on the market
  • Excellent cutting capacity–cuts up to 1 in.
  • (25.4 mm); severs up to 1 1/4 in. (31.75 mm)
  • Uses shop air, cylinder air or nitrogen for superior versatility
  • Pilot arc starting–even starts through paint
  • Choice of 25 ft. (7.6 m) or 50 ft. (15.2 m) lead length
  • Perfect electrode centering
  • Intermittent cutting capability for grate or expanded metal applications
  • Use with three cutting nozzle sizes for exceptional versatility
  • Improved spring-loaded seat eliminates head burn-out
  • Consoles|The PT-27 can be used with the following consoles:
    PowerCut 875
    PowerCut 1125

Số lượng

Cutting Specifications

Cuts Manual1 in.
Severs Manual1-1/4 in.

Output Ratings

Current Capacity @ 100% Duty Cycle

Output Current AC80 A

Plasma Gas Requirements

Air Supply

Gas Flow320 cfh (150 l/min)
Gas Pressure65-75 psig
