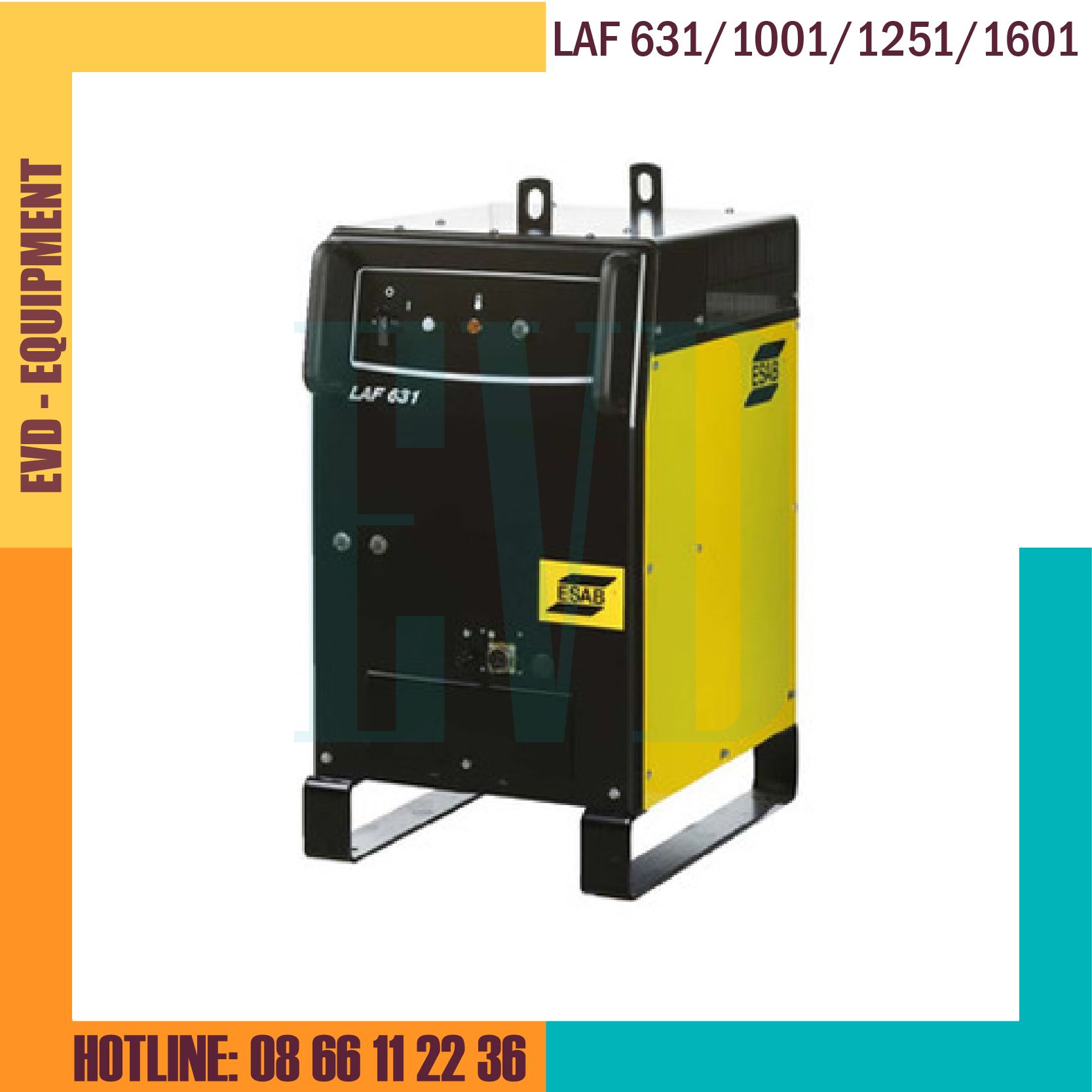

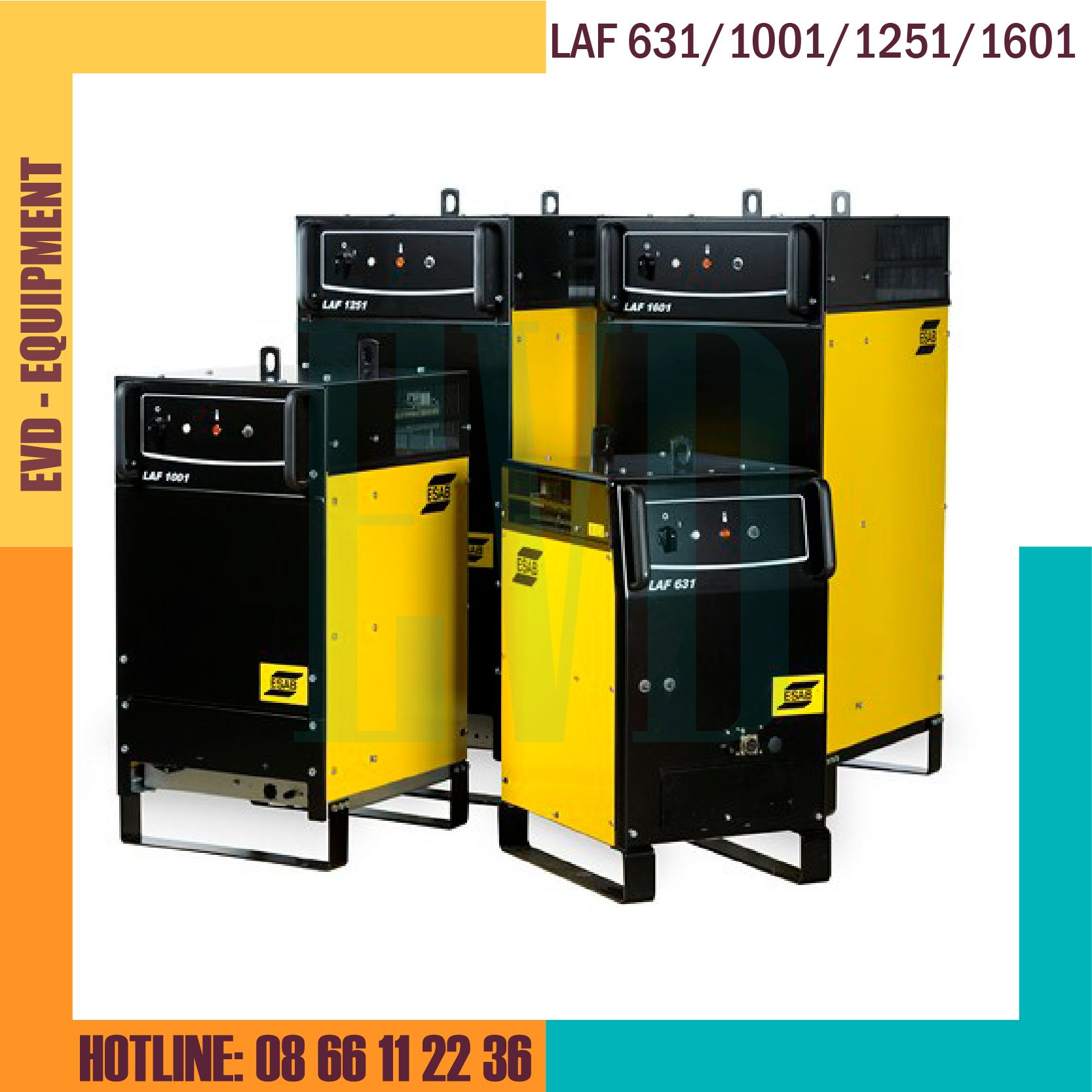

NGUỒN HÀN ESAB - LAF 631/1001/1251/1601

Mã sản phẩm: 0460513882

Giá gốc 0₫

Three-phase, fan-cooled DC welding power sources designed for high productivity automated submerged-arc welding (SAW) or high productivity gas metal arc welding (GMAW).

Features

  • Used in combination with ESABs A2-A6 equipment range and the A2-A6 PEK or A2 PEI process controllers
  • Good arc stability at both high and low arc voltages
  • Adjust and monitor the welding parameters on the power source from the front panel of the process controller (PEK or PEI)
  • Welding current range can be extended by connecting two power sources in parallel for the most demanding applications
  • Ideal for SAW applications such as wind tower components, nuclear power vessels, boilers and ship building applications
  • Ideal for GMAW applications such as welding the root pass in heavy pipe production

Welding Process

  • Air Carbon Gouging
  • Cladding
  • SAW - Submerged Arc Welding
  • GMAW (MIG/MAG - Metal Inert Gas / Metal Active Gas)

Tiêu đề

Số lượng

Power Specifications

ModelConditional StatementDuty CycleSetting Range
LAF 1001GMAW100 %50/17-1000/45
LAF 1001SAW40/22-1000/45
LAF 1251GMAW100 %60/17-1250/44
LAF 1601SAW100 %40/22-1600/46
LAF 631GMAW100 %50/17-630/44
LAF 631SAW60 %30/21-800/44


CLICK ĐỂ TẢI TÀI LIỆU
