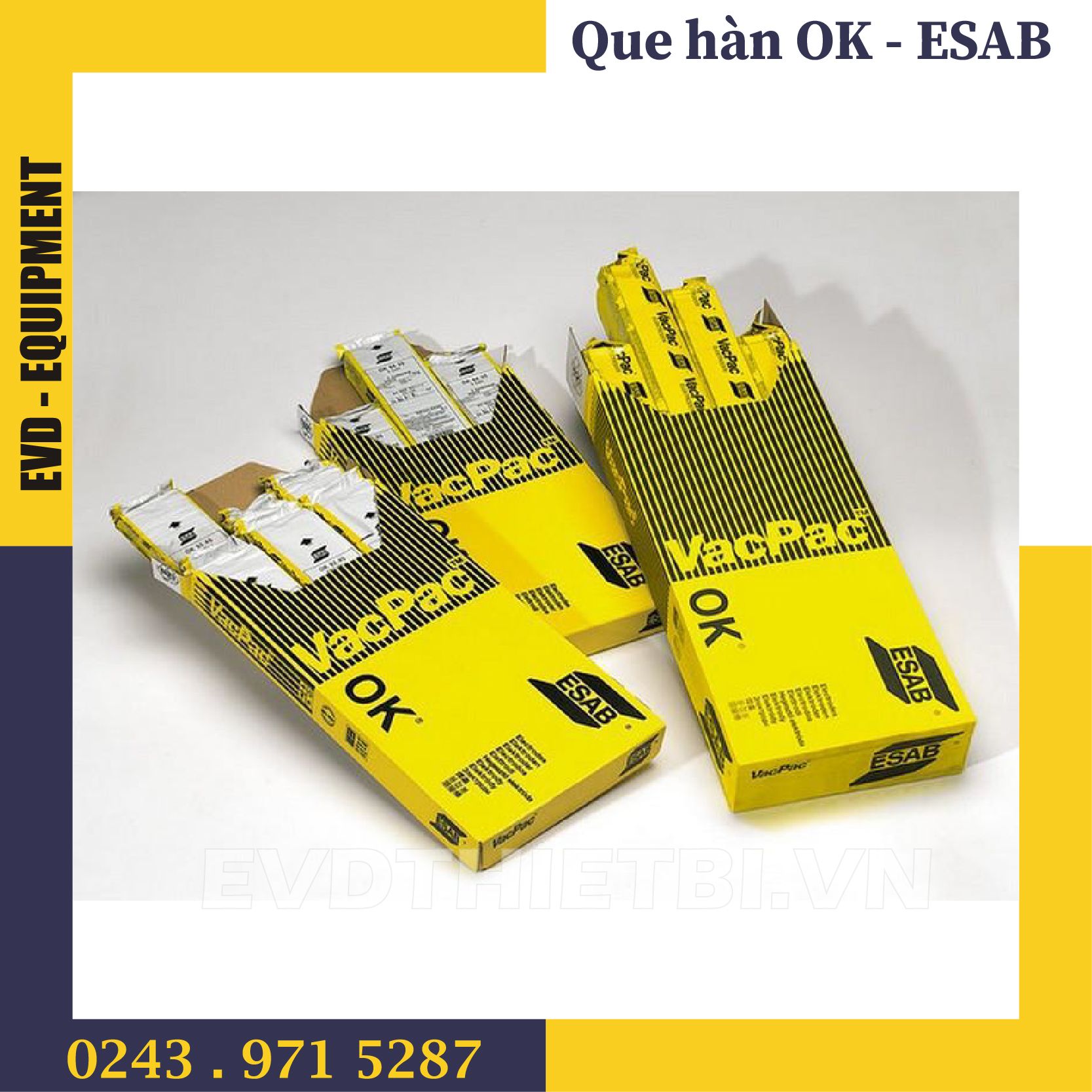

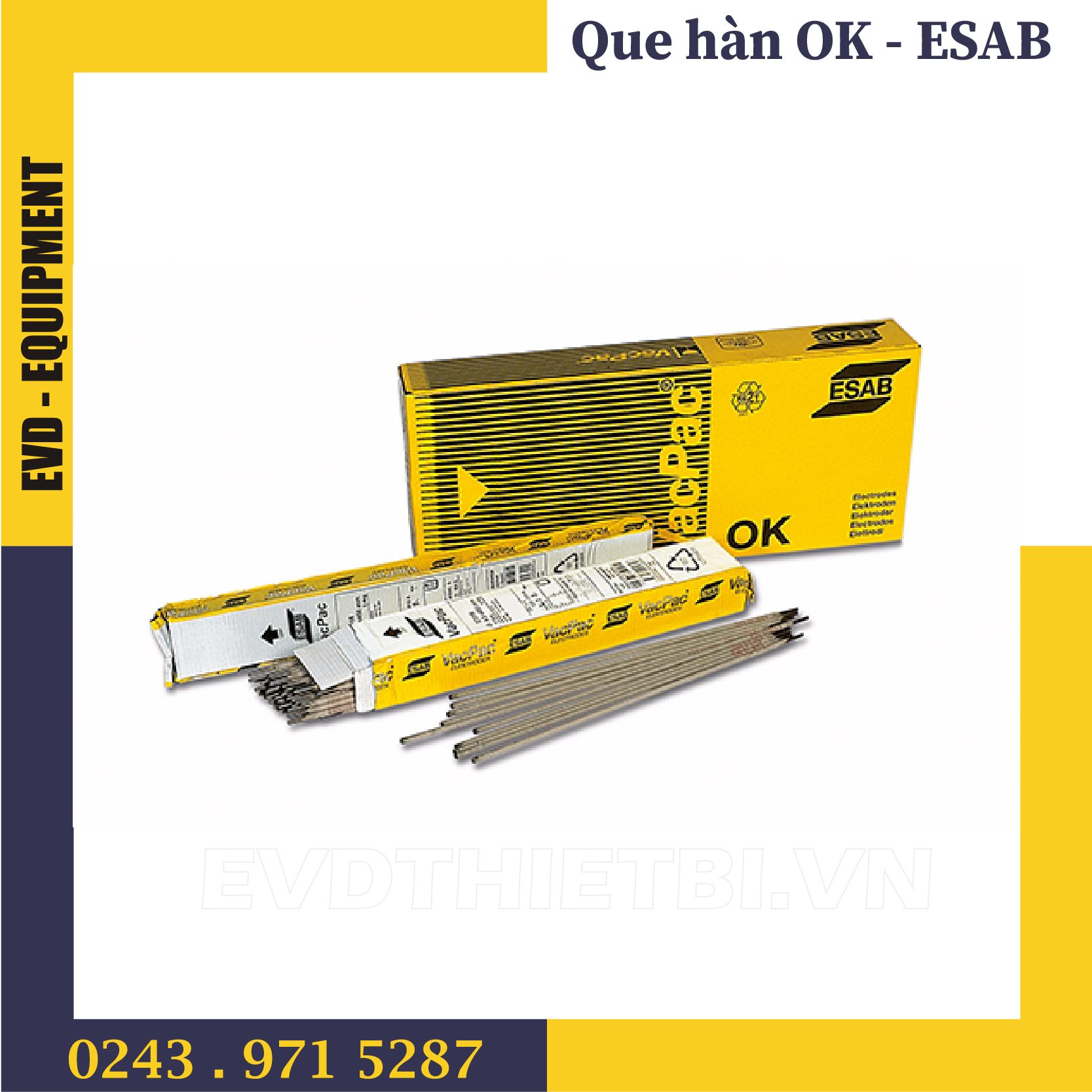

QUE HÀN ESAB 4301

Mã sản phẩm: E6019-2.5

Giá gốc 0₫

An easy to use AC and DC electrode. Suitable for welding mild steels and pressure vessel steels having a nominal tensile strength not exceeding 440 N/mm2. The electrode can be used for welding of structural steels of heavy section about 25 mm in thickness.

PHI

Số lượng

Typical Tensile Properties

ISO As welded
ElongationTensile StrengthYield Strength
30 %450 MPa420 MPa

Typical Charpy V-Notch Properties

ISO As welded
Impact ValueTesting Temperature
110 J0 °C
100 J-20 °C

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
2.5 x 350 mm50-85 A0.7 kg/h55 sec0.54 kg9830 V
5.0 x 400 mm170-250 A2.4 kg/h74 sec0.57 kg2133 V
4.0 x 400 mm120-180 A1.5 kg/h73 sec0.55 kg3330 V
3.2 x 350 mm80-130 A1.1 kg/h58 sec0.53 kg5930 V

Approvals:ABS, 3, BV, 3, DNV, 3, GL, 3, LR, 3, BKI, 3, ClassNK, KMW3
Classifications:SFA/AWS A5.1, E6019, EN ISO 2560-A, E 35 2 RA 11, JIS, D4301, KS, E4301

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Carbon Manganese
Coating Type:IMPERIAL_Rutile-acid covering
Welding Current:AC, DC+(-)
