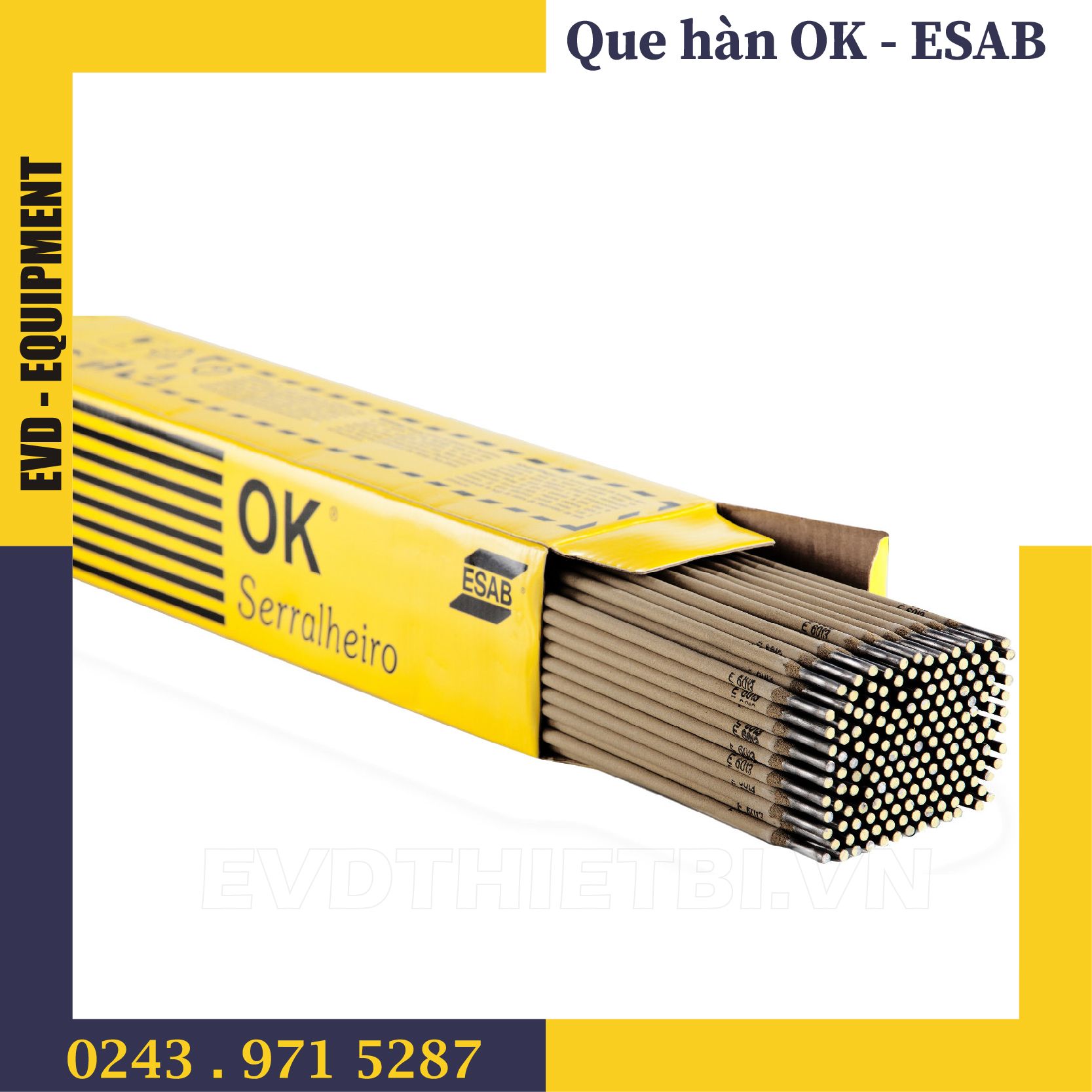

QUE HÀN ESAB OK 73.68

Mã sản phẩm: E8018-C1-2.5

Giá gốc 0₫

OK 73.68 is a 2.5% nickel-alloyed LMA electrode suitable for the welding of low-alloy steels with impact requirements down to -60°C. The composition of the weld metal is such that good, low-temperature impact properties are obtained, even when welding vertically up. The weld metal of OK 73.68 is also noted for its good corrosion resistance to sea-water and sulphuric acid fumes.

PHI

Số lượng

Typical Tensile Properties

ISO As welded
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
28 %615 MPa540 MPa--
AWS Stress relieved
ElongationTensile StrengthYield StrengthStress Relieved TemperatureStress Relieved Testing Time
28 %600 MPa500 MPa620 °C1 hr

Typical Charpy V-Notch Properties

ISO As welded
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
105 J-60 °C--
65 J-80 °C--
AWS Stress relieved
Impact ValueTesting TemperatureStress Relieved Testing TempStress Relieved Testing Time
85 J-60 °C620 °C1 hr

Typical Weld Metal Analysis %

MnMoCSiNiCr
1 %0.01 %0.05 %0.35 %2.4 %0.02 %

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
2.5 x 350 mm70-110 A0.90 kg/h55 sec0.62 kg70.023 V
3.2 x 450 mm105-150 A1.40 kg/h81 sec0.62 kg32.023 V
5.0 x 450 mm190-270 A2.50 kg/h104 sec0.65 kg13.527 V
4.0 x 450 mm140-190 A2.00 kg/h88 sec0.65 kg21.023 V

Approvals:ABS, 3Y400 H5*, ABS, E 8018-C1, BV, 5Y40M H5*, CE, EN 13479, DNV-GL, 5 Y46H5, LR, 5Y42m H5*, NAKS/HAKC, 2.5-5.0 mm, PRS, 5Y 42 H5, RS, 5Y46M H5*, Seproz, UNA 272580, VdTÜV, 01529
Classifications:SFA/AWS A5.5, E8018-C1, EN ISO 2560-A, E 46 6 2Ni B 32 H5

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Low alloyed (2.5 % Ni)
Coating Type:IMPERIAL_Basic covering
Diffusible Hydrogen:< 5.0 ml/100g
Welding Current:AC, DC+
