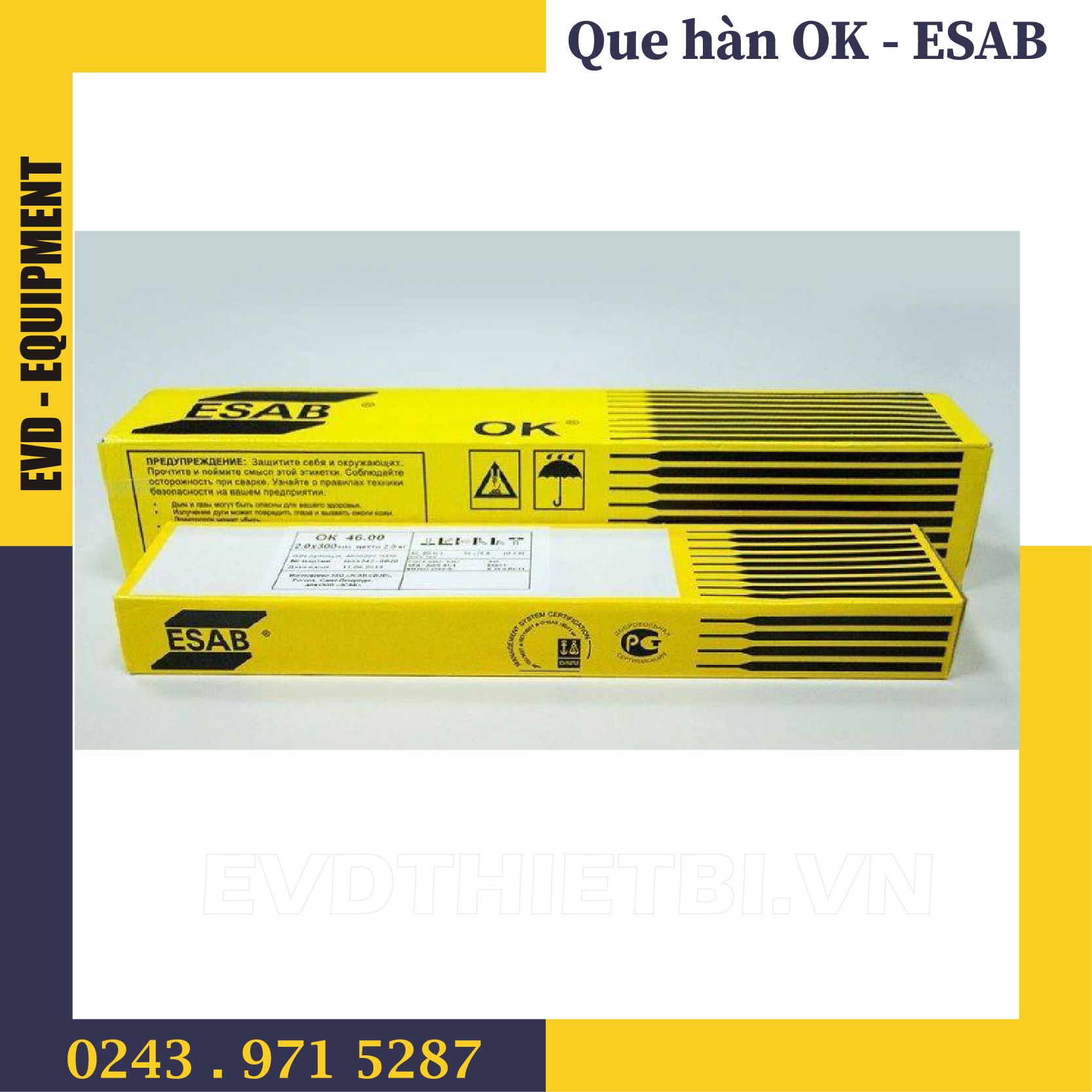

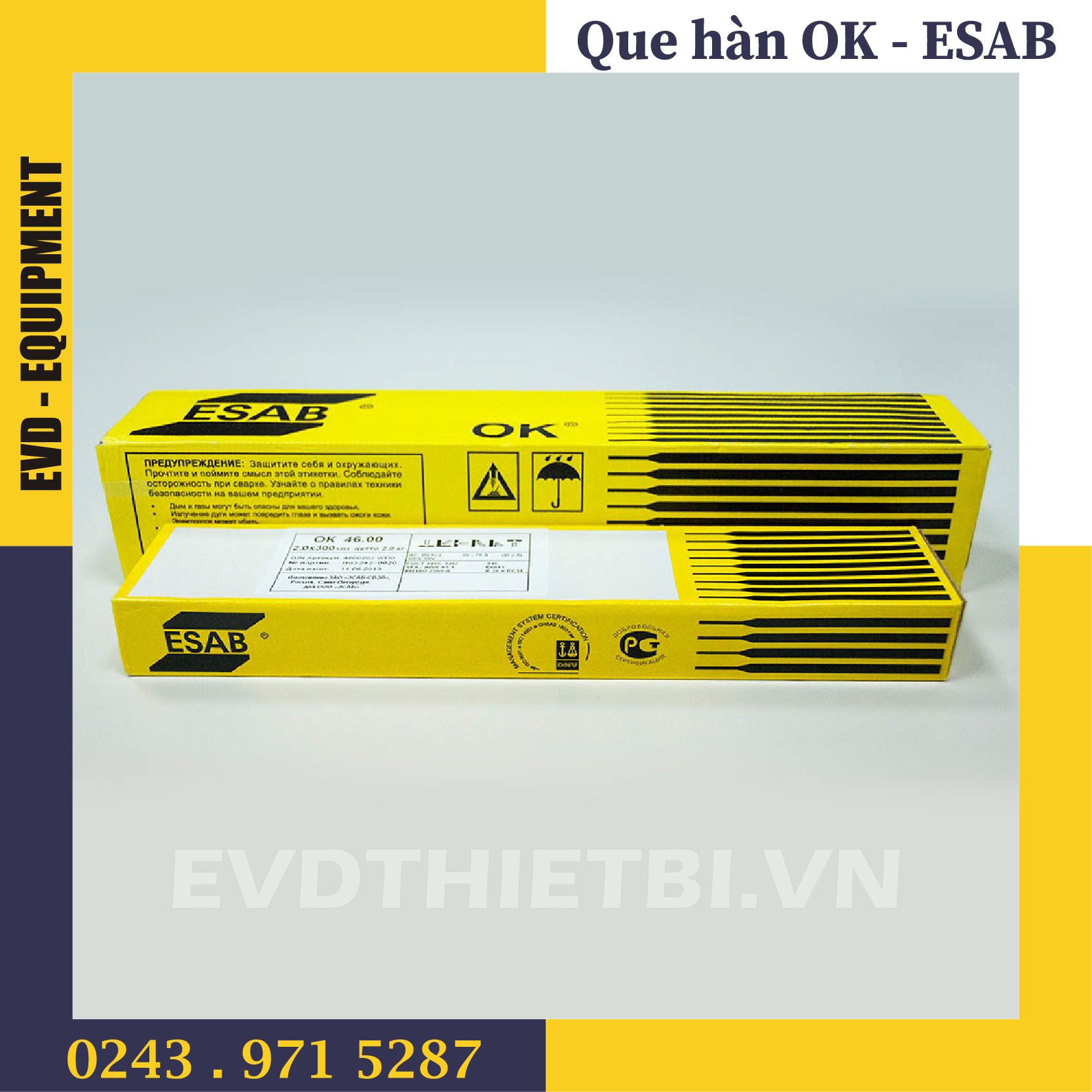

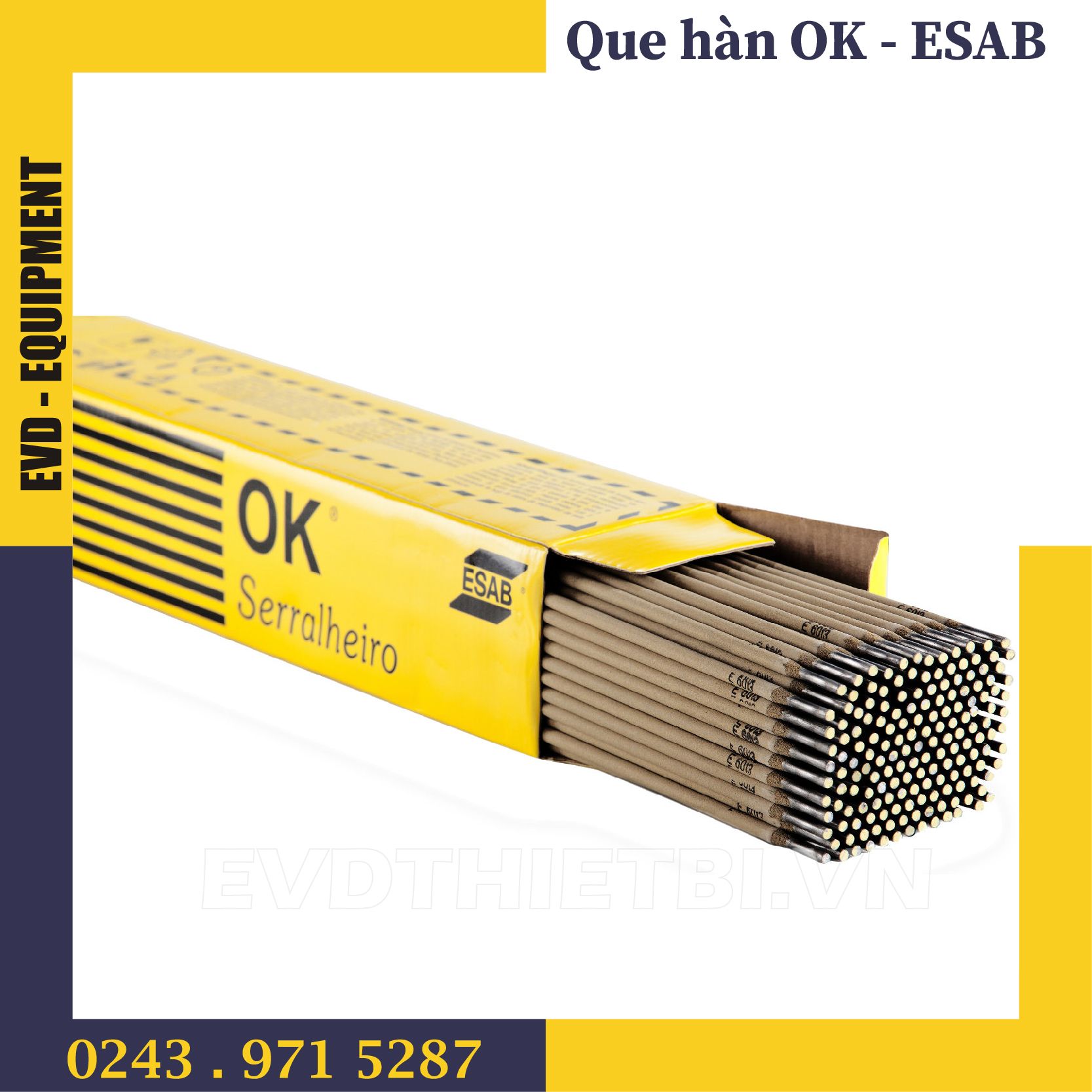

QUE HÀN ESAB OK 75.75

Mã sản phẩm: E11018-G-2.5

Giá gốc 0₫

OK 75.75 is an LMA electrode dried to a very low moisture content and suitable for the welding of high-strength, low-alloyed steels, at room temperature or with moderate preheating.

PHI

Số lượng

Typical Tensile Properties

ISO As welded
ElongationTensile StrengthYield Strength
20 %830 MPa780 MPa
AWS As welded
ElongationTensile StrengthYield Strength
---

Typical Charpy V-Notch Properties

ISO As welded
Impact ValueTesting Temperature
60 J-40 °C

Typical Weld Metal Analysis %

MnMoCSiNiCr
1.61 %0.4 %0.05 %0.36 %2.4 %0.4 %

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
2.5 x 350 mm70-110 A1.00 kg/h54 sec0.67 kg66.022 V
3.2 x 450 mm100-150 A1.40 kg/h80 sec0.67 kg31.523 V
5.0 x 450 mm180-260 A2.50 kg/h105 sec0.63 kg12.025 V
4.0 x 450 mm135-200 A1.90 kg/h92 sec0.65 kg21.024 V

Approvals:ABS, E11018-G, CE, EN 13479, DB, 10.039.19, VdTÜV, 01028, Seproz, UNA 272580
Classifications:SFA/AWS A5.5, E11018-G, EN ISO 18275-A, E 69 4 Mn2NiCrMo B 42 H5

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Low alloyed (2.4 % Ni, 0.4 % Cr, 0.4 % Mo)
Coating Type:IMPERIAL_Basic covering
Diffusible Hydrogen:< 5.0 ml/100g
Welding Current:DC+
