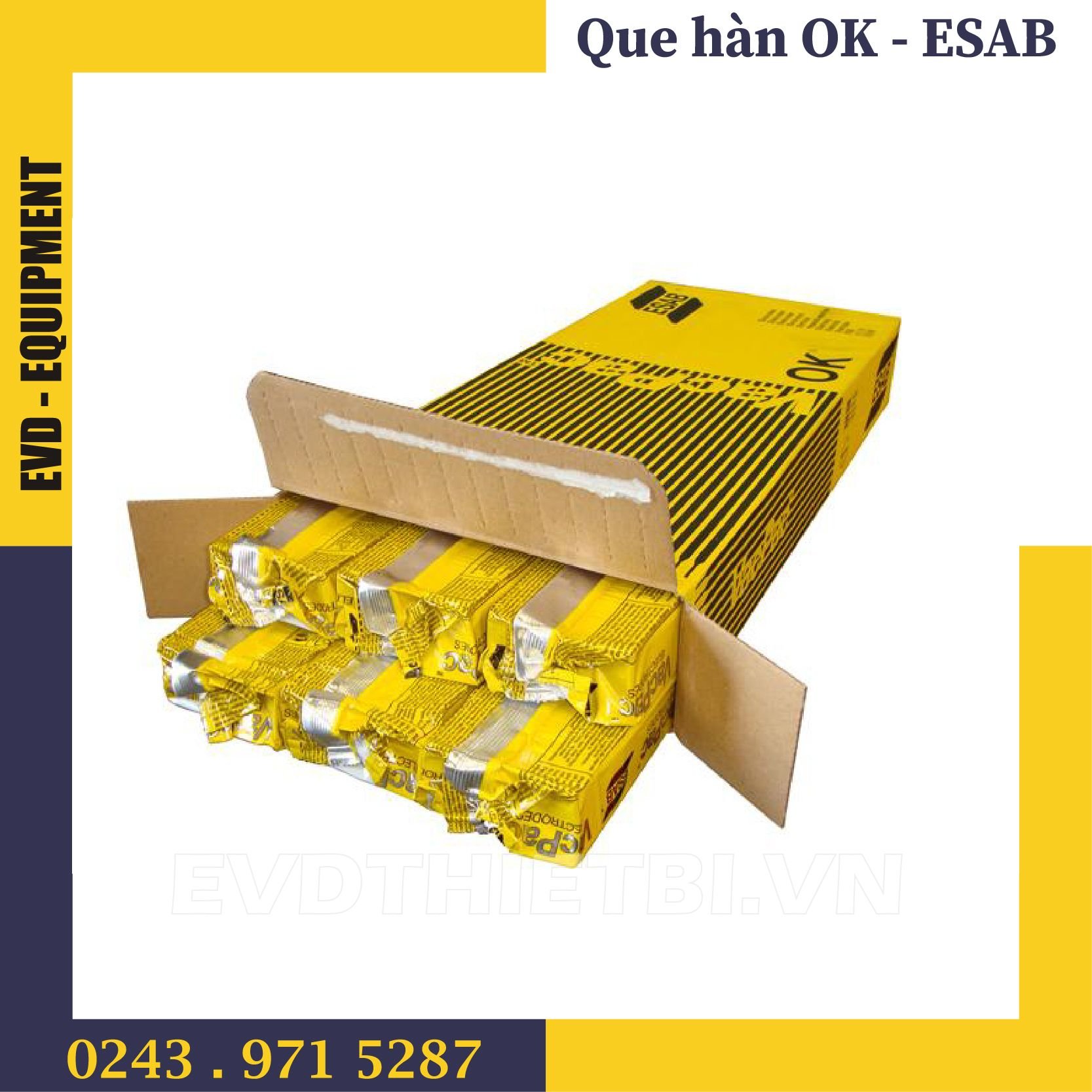

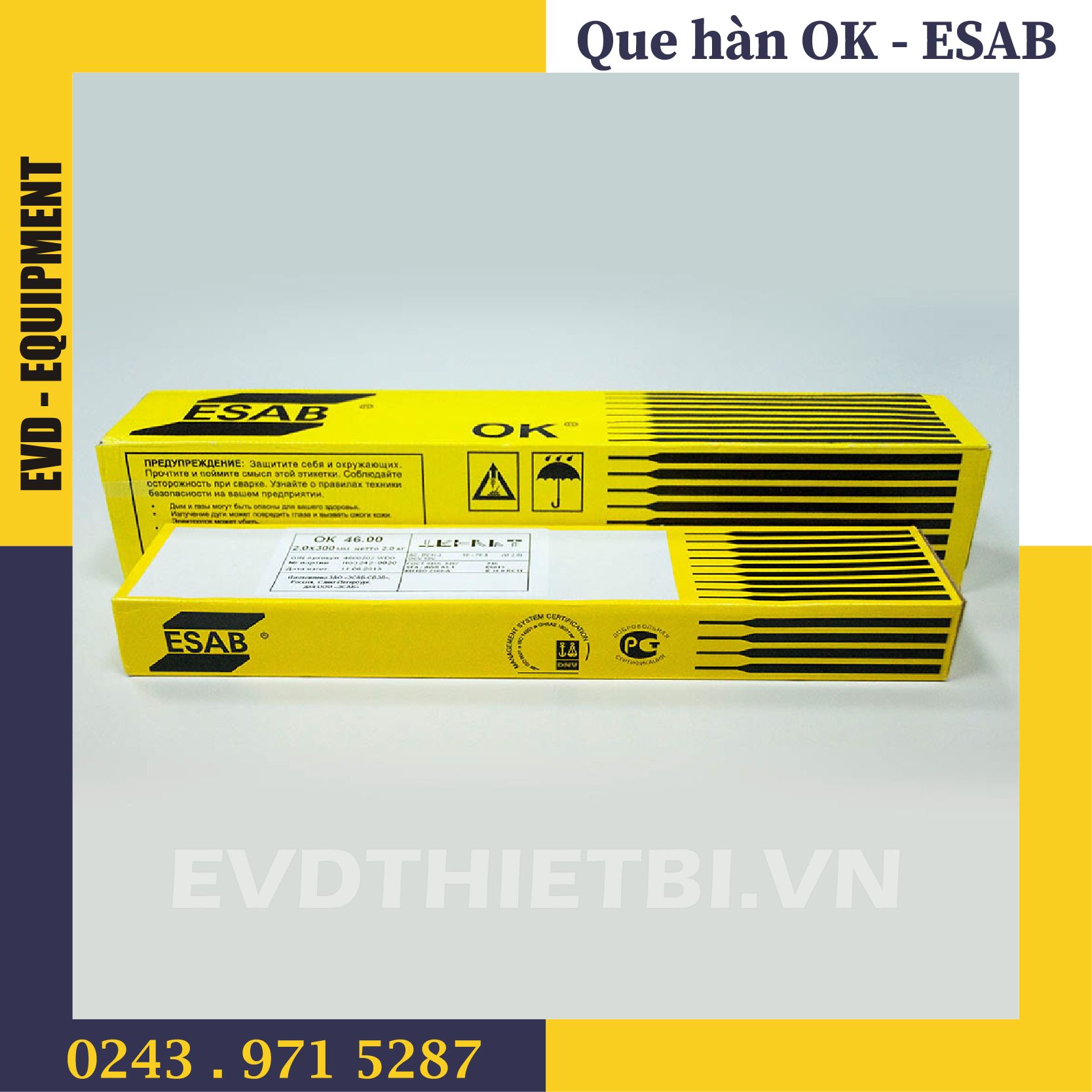

QUE HÀN ESAB OK 83.30

Mã sản phẩm: E Z Fe1-3.2

Giá gốc 0₫

OK 83.30 is a rutile electrode for hardfacing and cladding tracks, shafts, rolls, rails, rail frogs etc when hardness of 30-35 HRC is required from the weld metal.

PHI

Số lượng

Typical Weld Metal Analysis %

MnCSiCr
1.1 %0.1 %0.7 %3.3 %

Deposition Data

DiameterCurrentDeposition RateFusion time per electrode at 90% I maxkg weld metal/kg electrodesNumber of electrodes/kg weld metalVoltage
3.2 x 350 mm90-180 A1.5 kg/h50 sec0.53 kg5526 V
5.0 x 450 mm160-310 A2.7 kg/h85 sec0.57 kg1727 V
4.0 x 450 mm140-240 A2.2 kg/h65 sec0.57 kg2626 V

Classifications:EN 14700, E Z Fe1

Alloy Type:Martensitic steel
Coating Type:Acid Rutile
Welding Current:AC, DC+
