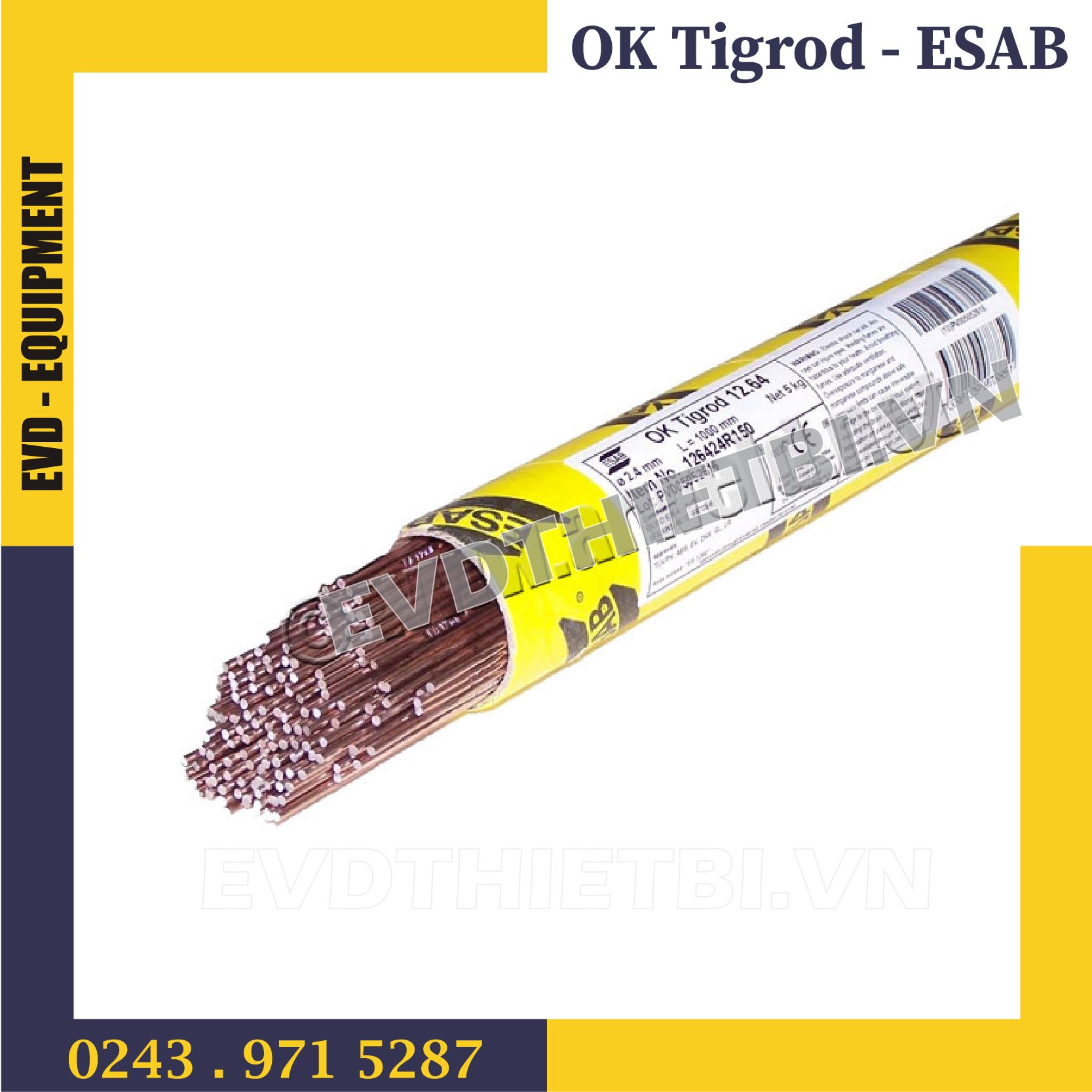

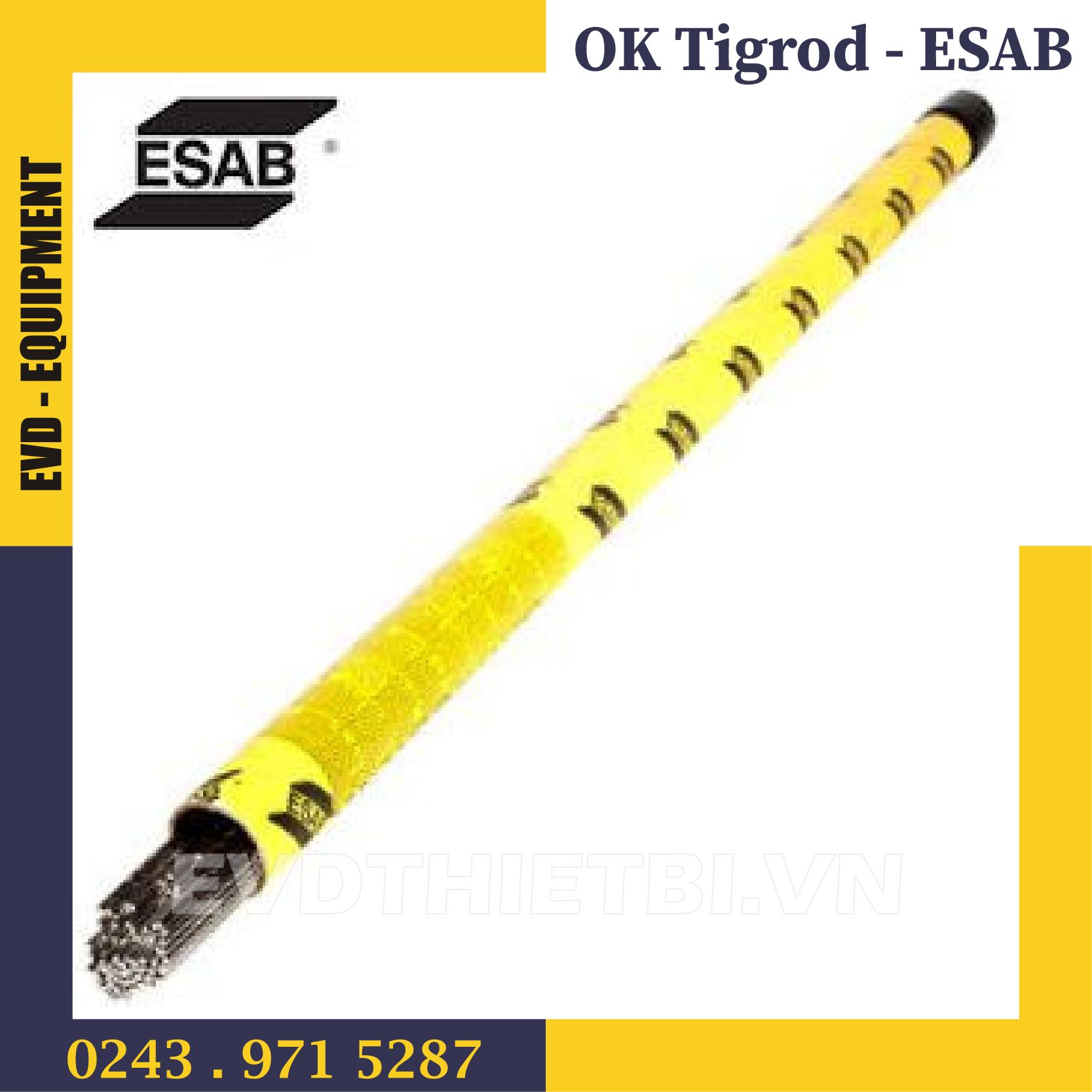

QUE HÀN ESAB OK TIGROD 12.60

Mã sản phẩm: ER70S-3

Giá gốc 0₫

OK Tigrod 12.60 is a copper-coated Mn-Si-alloyed W2Si/ER70S-3 solid rod for the GTAW of non-alloyed steels, as used in general construction, pressure vessel fabrication and shipbuilding.

Số lượng

Typical Tensile Properties

Ar (I1) EN As welded
ElongationTensile StrengthYield Strength
26 %515 MPa420 MPa
Ar (I1) AWS As welded
ElongationTensile StrengthYield Strength
---

Typical Charpy V-Notch Properties

Ar (I1) EN As welded
Impact ValueTesting Temperature
90 J-30 °C
Ar (I1) AWS As welded
Impact ValueTesting Temperature
--18 °C

Typical Weld Metal Analysis %

MnCSi
1.11 %0.10 %0.72 %

Approvals:ABS, 3YSA, ABS, ER70S-s, BV, 3YM, CE, EN 13479, DNV-GL, III YM (I1), NAKS/HAKC, 2.0-2.4 mm, VdTÜV, 11141
Classifications:EN ISO 636-A, W 38 3 W2Si, Weld Metal, EN ISO 636-A, W2Si, Wire Electrode, SFA/AWS A5.18, ER70S-3, Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.


Alloy Type:Carbon-manganese steel
