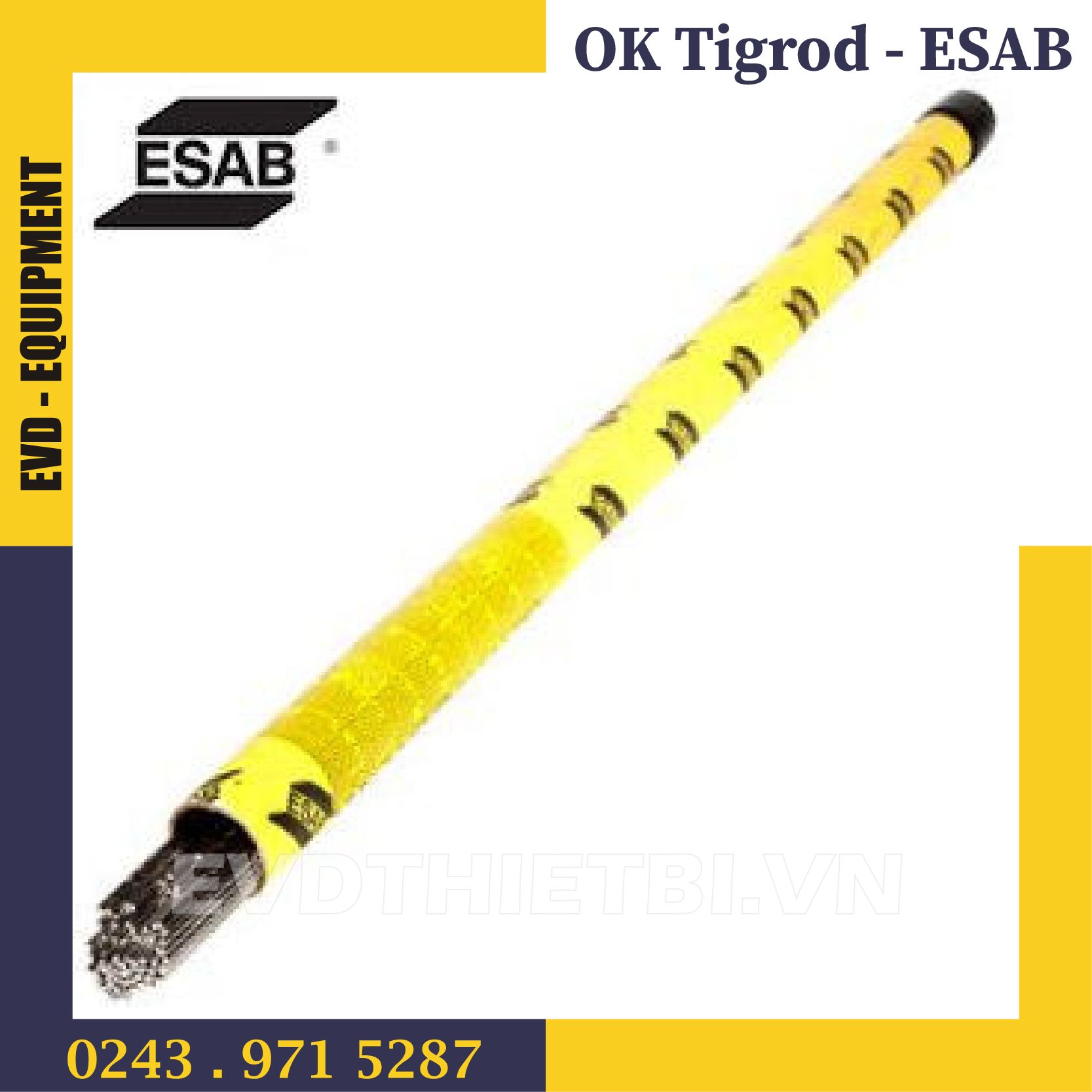

QUE HÀN ESAB OK TIGROD 13.16

Mã sản phẩm: ER80S-B2

Giá gốc 0₫

OK Tigrod 13.16 is a 1.3Cr-0.5Mo-alloyed (ER80S-B2), copper-coated rod for the GTAW of creep-resistant steels like SA-387 Grade 11, A 335 Grade P11 or similar materials. The rod has a high purity chemistry with a guaranteed Bruscato factor X < 15.

Số lượng

Typical Tensile Properties

Ar (I1) AWS Stress relieved
ElongationStress Relieved TemperatureStress Relieved Testing TimeTensile StrengthYield Strength
24 %620 °C1 hr730 MPa640 MPa

Typical Charpy V-Notch Properties

Ar (I1) AWS Stress relieved
Impact ValueStress Relieved Testing TempStress Relieved Testing TimeTesting Temperature
>47 J620 °C1 hr-40 °C

Typical Weld Metal Analysis %

MnMoCSiNiCr
0.5 %0.5 %0.08 %0.5 %0.08 %1.3 %

Approvals:CE, EN 13479, NAKS/HAKC, 2.0MM-2.4MM
Classifications:EN ISO 21952-A, Z CrMo1Si, Wire Electrode, EN ISO 21952-B, W 55 1CM, Wire Electrode, SFA/AWS A5.28, ER80S-B2, Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type:Low alloyed steel (1,3%Cr, 0.5 % Mo)
