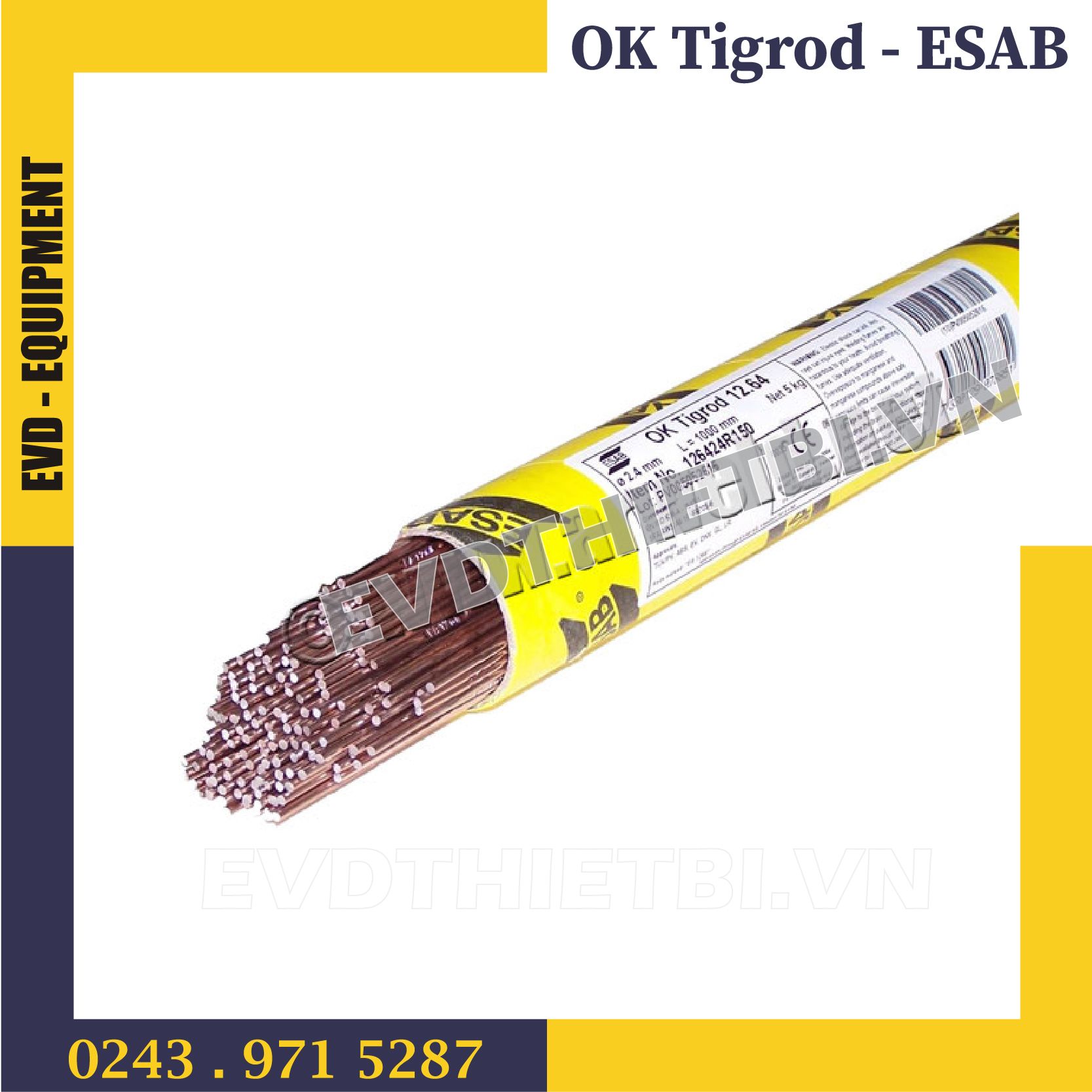

QUE HÀN ESAB OK TIGROD 347

Mã sản phẩm: ER347

Giá gốc 0₫

Bare, corrosion-resistant, chromium-nickel rods for welding stabilised austenitic chromium-nickel alloys of the 18% Cr-8% Ni type. The rods are stabilised with niobium, which provides good resistance to the intergranular corrosion of the weld metal. Due to the niobium content, this alloy is recommended for use at higher temperatures.

Số lượng

Typical Tensile Properties

As welded
ElongationTensile StrengthYield Strength
35 %655 MPa510 MPa


Typical Charpy V-Notch Properties

As welded
Impact ValueTesting Temperature
130 J20 °C


Typical Weld Metal Analysis %

MnMoCuCNbSiFerrite FNNiCr
1.4 %0.10 %0.05 %0.04 %0.50 %0.4 %7 %9.5 %19.3 %


Approvals:NAKS/HAKC, 2.4mm
Classifications:EN ISO 14343-A, W 19 9 Nb, Wire Electrode, SFA/AWS A5.9, ER347, Wire Electrode, Werkstoffnummer, ~1.4551, Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.


Alloy Type:Austenitic (with approx. 8 % ferrite) 19% Cr - 9% Ni - Nb
