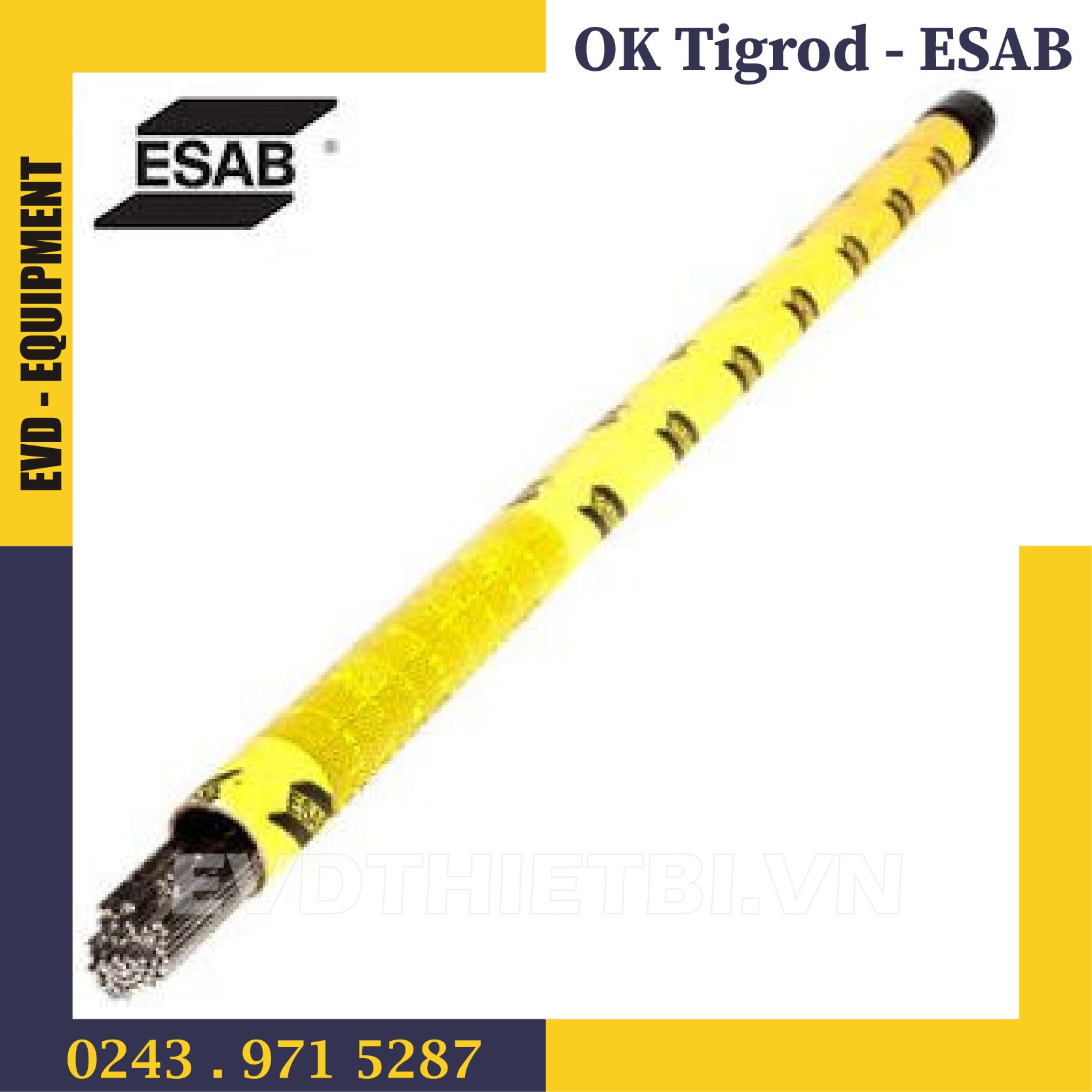

QUE HÀN ESAB - OK TIGROD NiCrMo-3

Mã sản phẩm: ERNiCrMo-3

Giá gốc 0₫

Bare corrosion and heat-resisting Ni-Cr-Mo rods for welding of high alloyed heat-resisting and corrosion resisting materials, 9%Ni-steels and similar steels with high notch toughness at low temperatures. Also for joining of dissimilar metals of the types mentioned. The weld metal has very good mechanical properties at high and low temperatures. Good resistance to pitting and stress corrosion.

Số lượng

Typical Tensile Properties

As welded
ElongationTensile StrengthYield Strength
40 %780 MPa550 MPa


Typical Charpy V-Notch Properties

As welded
Impact ValueTesting Temperature
100 J-196 °C


Typical Weld Metal Analysis %

MnMoCSiNiNb+TaCrFe
0.04 %8.6 %0.02 %0.06 %64.8 %3.5 %22.7 %0.3 %


Approvals:DNV, For NV1.5Ni up to NV9Ni, VdTÜV, 12460
Classifications:SFA/AWS A5.14, ERNiCrMo-3, Wire Electrode, EN ISO 18274, S Ni 6625, Wire Electrode

Approvals are based on factory location. Please contact ESAB for more information.


Alloy Type:Alloyed nickel (Ni + 22 % Cr + 9 % Mo - 3.5 % Nb)
