RAILTRAC BV/BVR 1000

Giá gốc 0₫

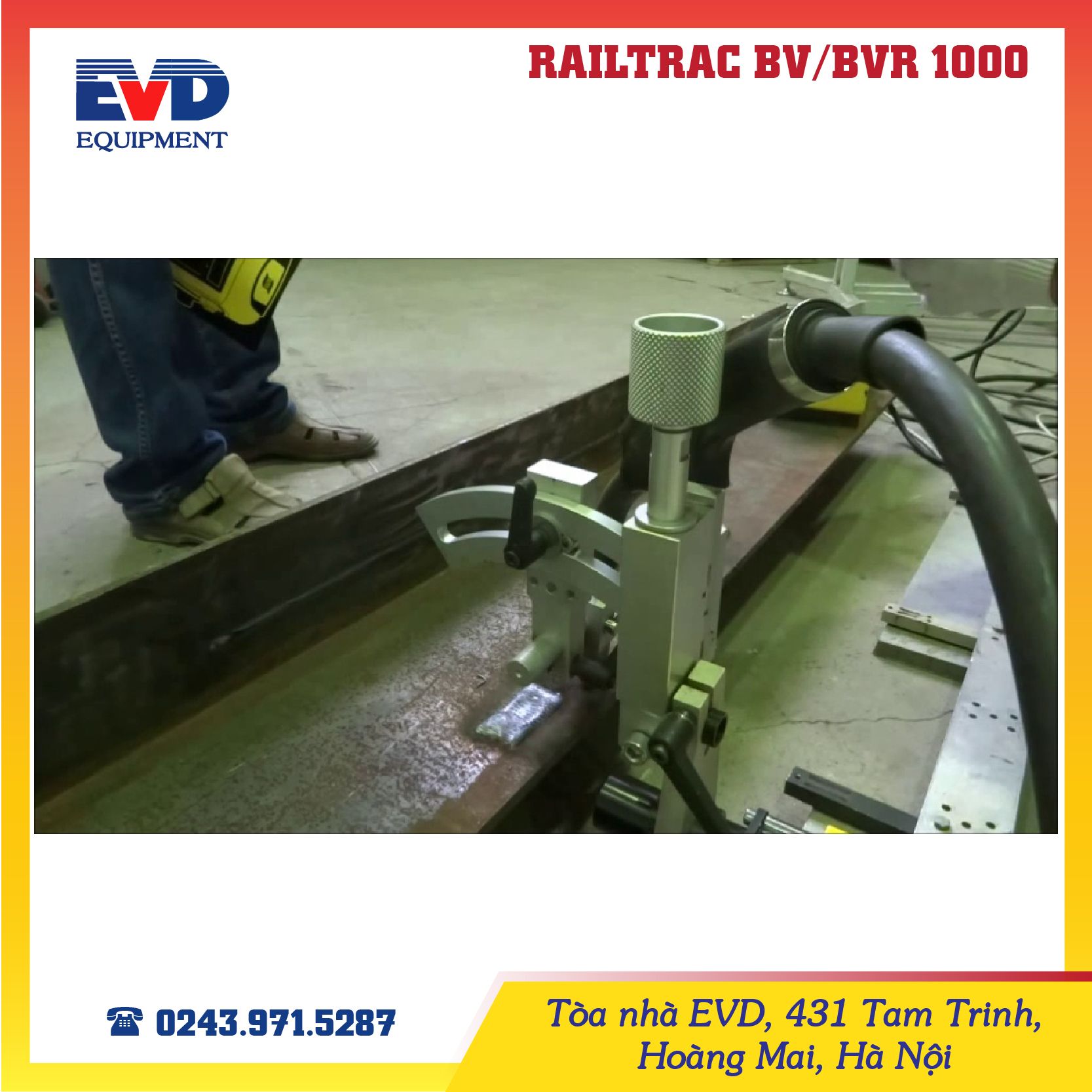

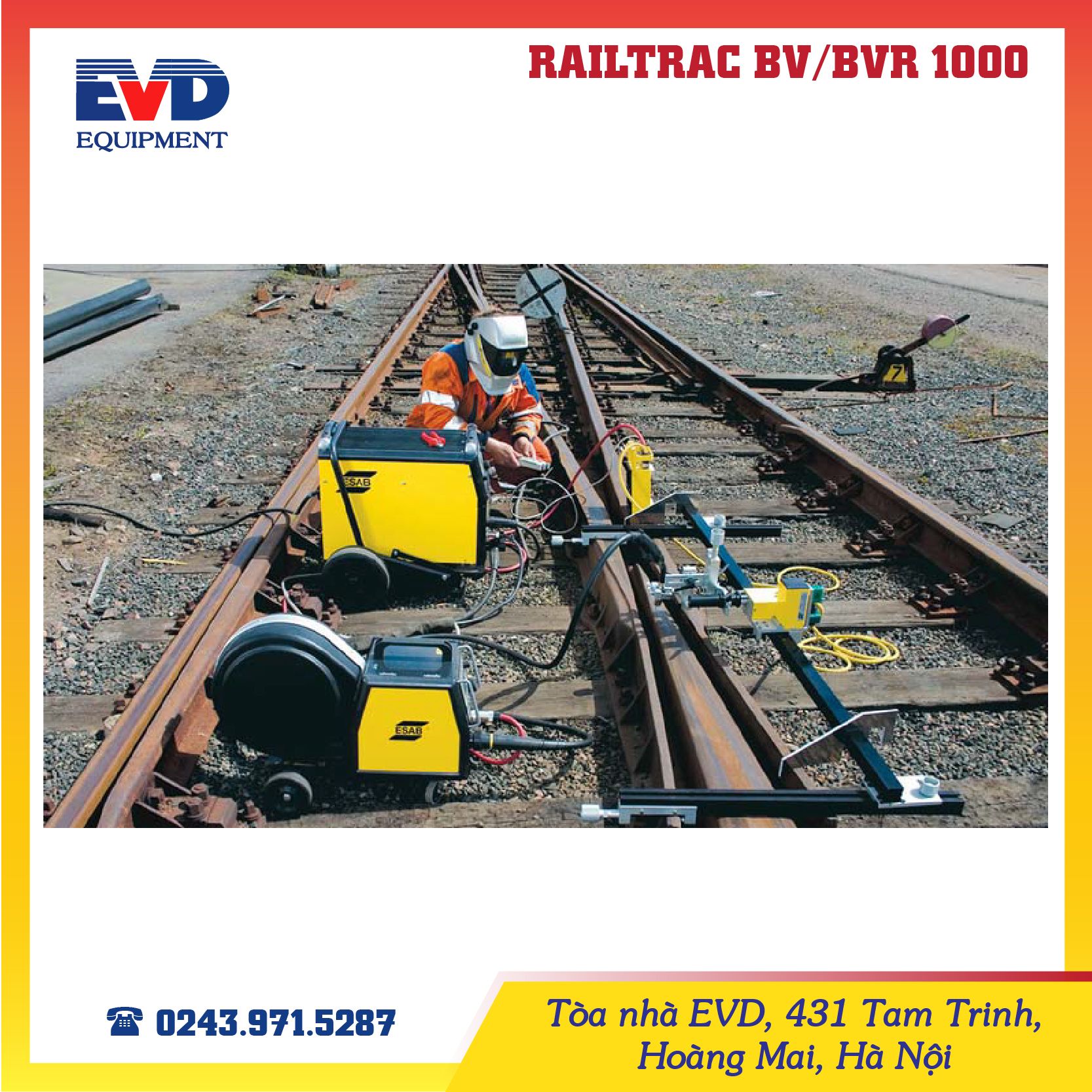

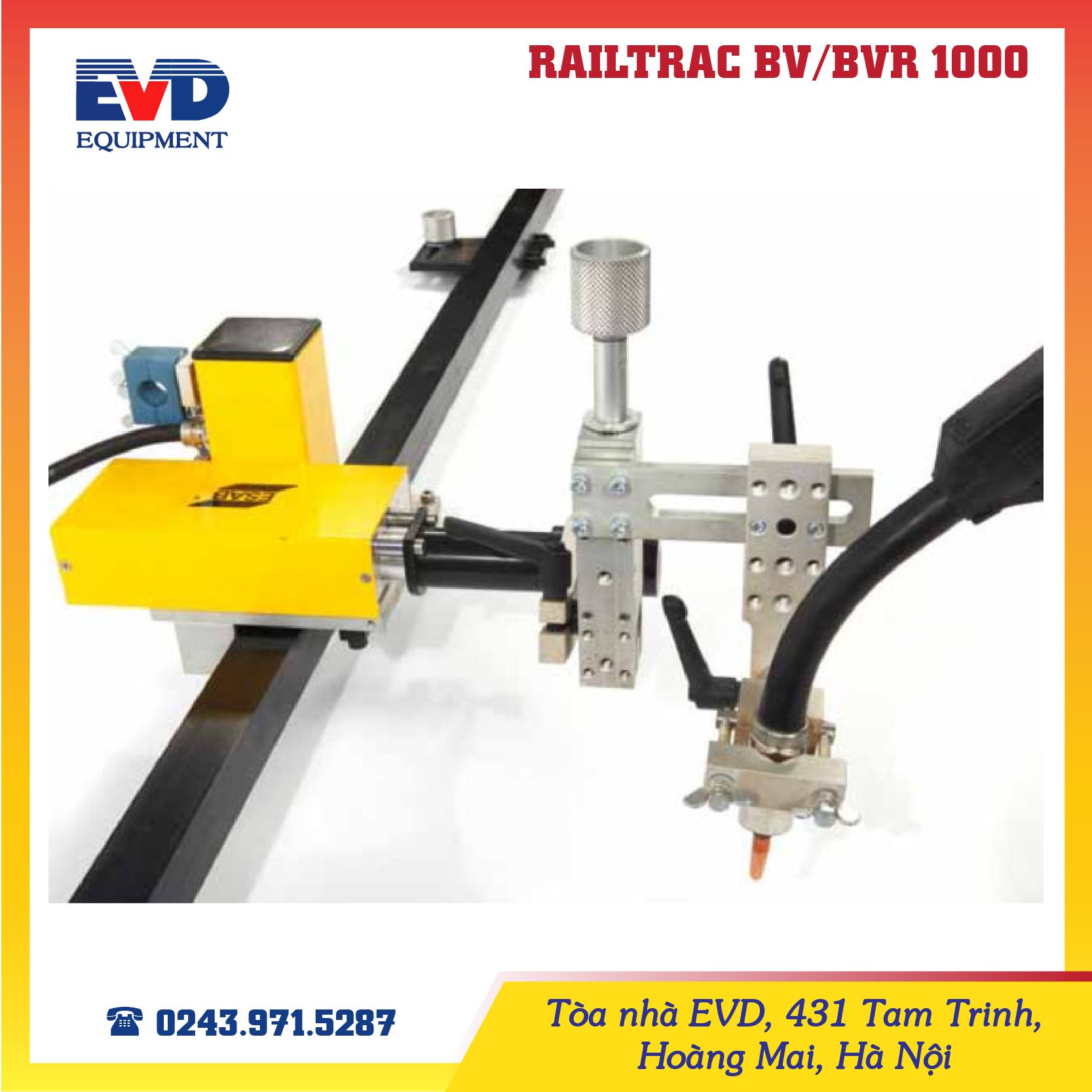

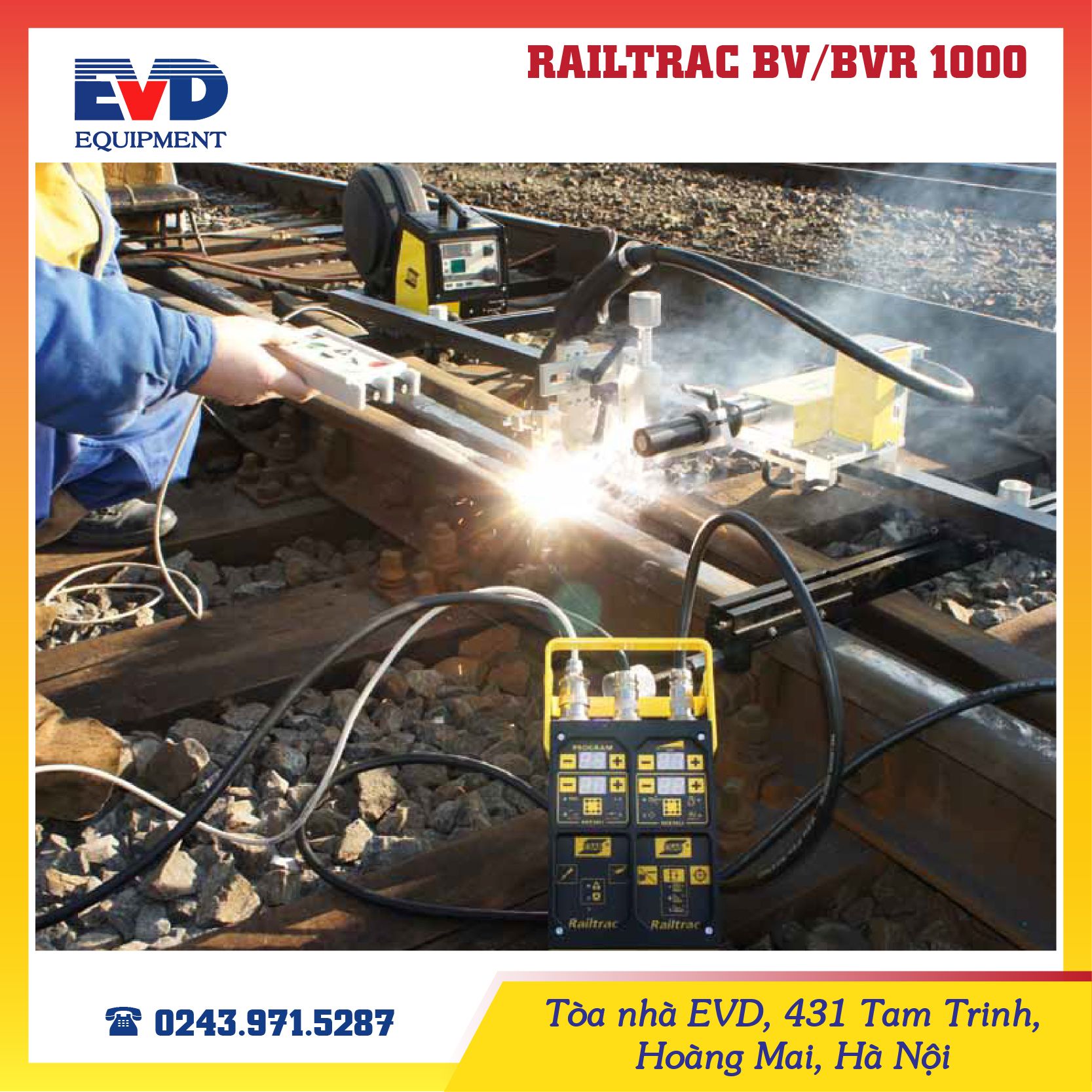

Programmable equipment for hardfacing and repair of rail profiles

  • Lightweight makes it quick and easy to remove the aluminum travel beam from rail or crossing and simple to restore to its original position on the workpiece.
  • It can be used with a number of different power sources and wire feeder combinations.

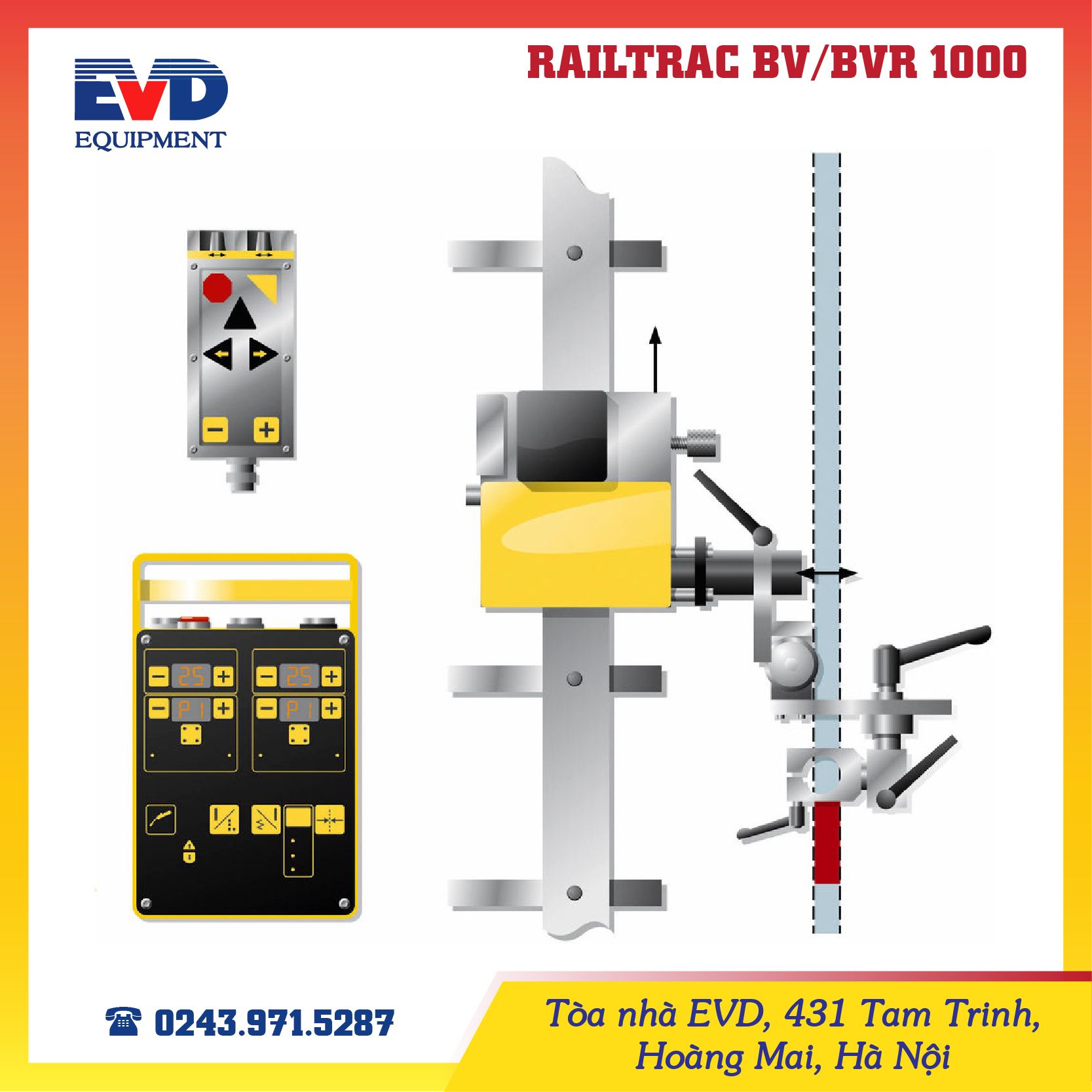

  • Precise adjustments of the weaving pattern, travel speed and zero line can all be achieved during welding.

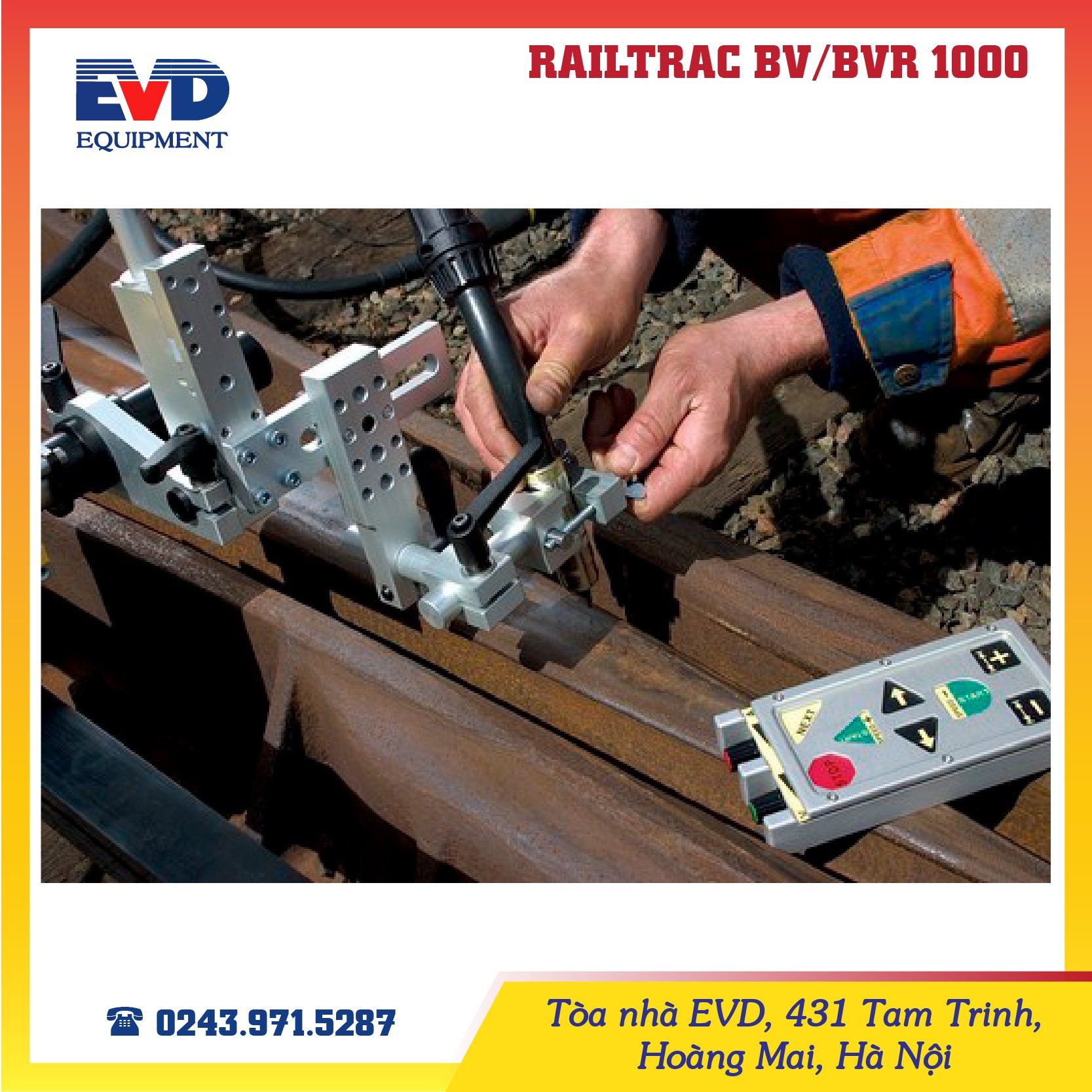

  • Welding parameters are adjustable from the remote control.
  • IP 23 enclosure class makes it suitable for use outdoors.
  • Control voltage level of 42V AC is safe for use anywhere.

Số lượng

Power Specifications

Control Voltage36-46 / 40-60 V
Enclosure ClassIP23
Maximum output consumption80 W

Specifications

Fast transport speed59 in./min (150 cm/min)
Number of programsBV: 4, BVR: 6
Weaving speed0.3-2.0 (7-50)
Welding speed0.2-59 in./min (10-150 cm/min)
Maximum effective weld length59 in. (1500 mm)
Mechanical lateral adjustment7.9 in. (200 mm)
Torch attachment universal0.5-1.4 in. (12-36 mm)
Programmable edge length6-99 (2.4-39 in.)
Slide for adjusting height of torch0.9 in. (22 mm)
Weaving width0.04-3.1 in. (1-80 mm)
Zero line shift1.0 / +/-0.5 in. (25 / +/-12.5 mm)
Dimensional Qualificationexcl rail
Dimensional QualificationWeight of rail 2 m (6.5 ft.)

Weight

excl rail

Weight15.4 lb


Weight of rail 2 m (6.5 ft.)

Weight8.8 lb
