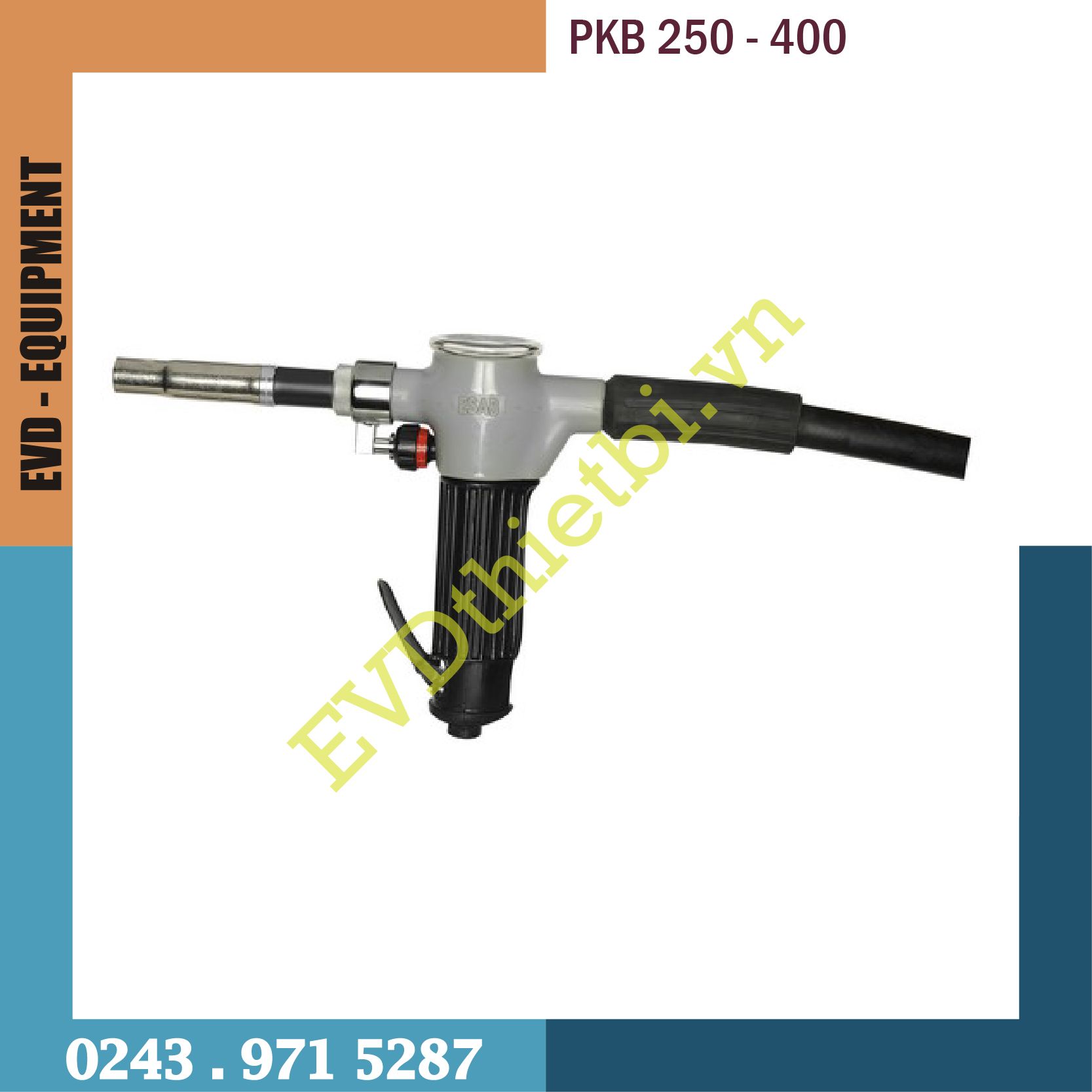

SÚNG HÀN MIG ESAB PKB 250/400

Giá gốc 0₫

The pheumatic A9A is a push-pull system consisting of PKB™ 250 and 400, Origo™ FeedAirmatic wire feeder and welding hoses of different lengths and dimensions. The torch is powered by air and the feed speed is set steplessly by a knob on the torch. The trigger permits creep starts and speed reductions during welding. The hose connection supplies current, wire, shielding gas and air in the same connection.

Số lượng

Arc Power Specifications

ModelPKB 250PKB 400
Conditional StatementPrimary Current
Primary Current
Primary Current
Primary Current
Duty Cycle60 %
60 %
60 %
60 %
Output Current250 A
400 A
250 A
400 A

Power Specifications

Power Specifications

ModelConditional Statement
PKB 250Primary Current
PKB 400Primary Current

Specifications

Maximum Pressure5 bar

Weight

PKB 250

Weight1.2 kg

PKB 400

Weight1.4 kg

Welding Output

ModelPKB 250PKB 400
Duty Cycle60 %
60 %
60 %
60 %
Output Current250 A
400 A
250 A
400 A

Wire Feeder Specifications

Conditional QualificationPKB 400
PKB 250
PKB 400
Wire Feed Speed0 - 18 m/min
0 - 18 m/min
MetalWire Diameter
unall. solid0.6 - 1.2 mm
Stainless Steel0.6 - 1.2 mm
unall. solid0.6 - 1.6 mm
Stainless Steel0.6 - 1.6 mm
Aluminum0.8 - 1.2 mm
Aluminum0.8 - 1.6 mm
Cored Wire1.0 - 1.2 mm
Cored Wire1.0 - 1.6 mm
