SÚNG HÀN MIG ESAB - PSF SELF-COOLED

Mã sản phẩm: 0458401885

Giá gốc 0₫

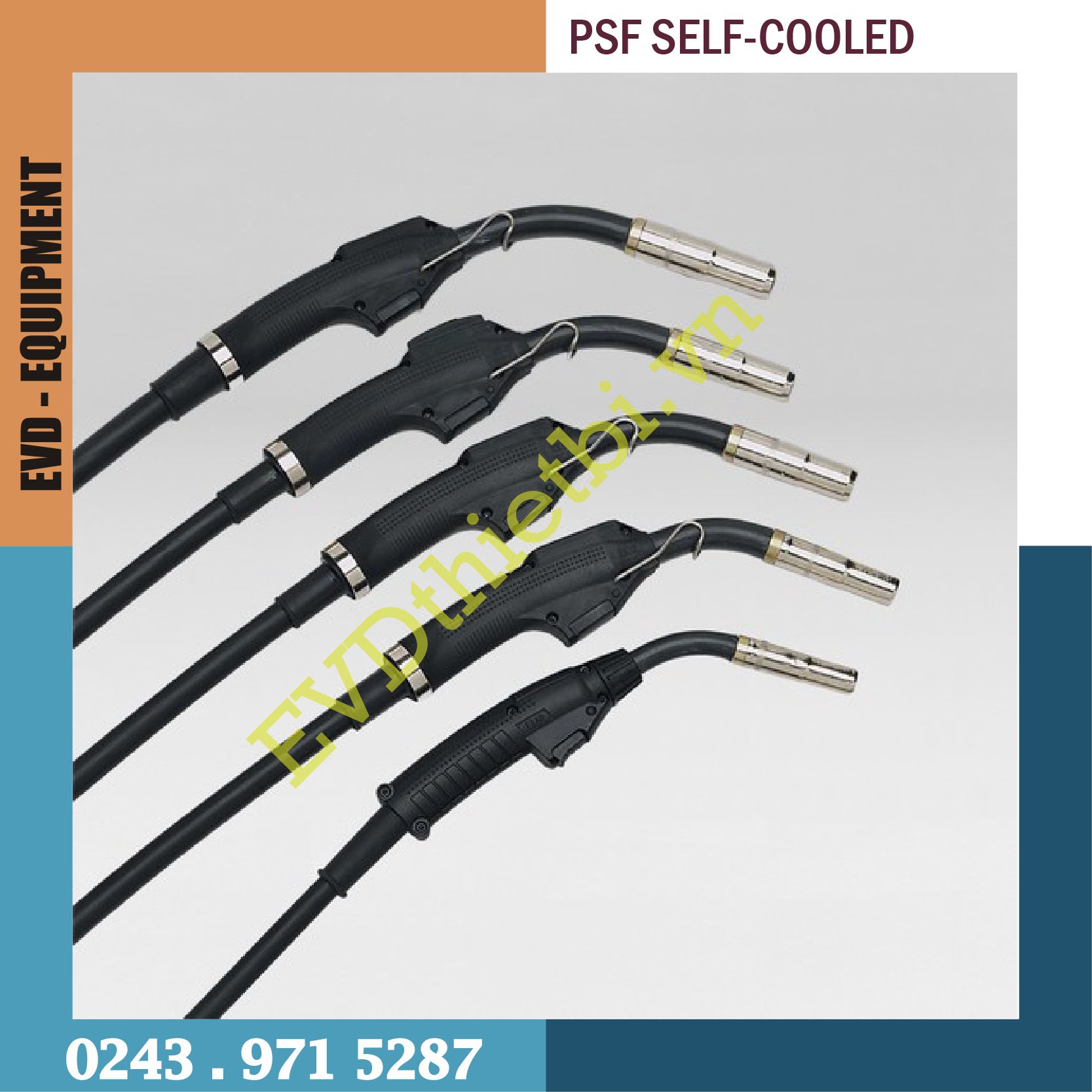

There are four different types of self-cooled PSF™ welding torches and they can be ordered with two different hose lengths. The handles are ergonomically curved. A range of different angled swan necks provides easy access to all the different welding positions and a comfortable working position. PSF™ 405 is available with a built-in, three-step, remote-control switch (RS3).

Tiêu đề

Số lượng

Specifications

Amps250 A
Percent Duty Cycle60 %
Amps315 A
Percent Duty Cycle60 %
Amps380 A
Percent Duty Cycle60 %
Amps475 A
Percent Duty Cycle60 %

Weight

PSF 250

Weight1.8/2.5 kg

PSF 305

Weight2.5/3.3 kg

PSF 405/405 RS3

Weight3.1/4.2 kg

PSF 505

Weight3.9/5.3 kg

Wire Feeder Specifications

Conditional QualificationPSF 405/405 RS3
MetalWire Diameter
unall. solid0.6 - 1.0 mm
Stainless Steel0.6 - 1.0 mm
unall. solid0.8 - 1.2 mm
Stainless Steel0.8 - 1.2 mm
Stainless Steel0.8 - 1.2 mm
unall. solid0.8 - 1.6 mm
Aluminum1 mm
Cored Wire1 mm
Aluminum1.0 - 1.2 mm
Cored Wire1.0 - 1.2 mm
Cored Wire1.0 - 1.6 mm
Stainless Steel1.0 - 1.6 mm
Aluminum1.0 - 1.6 mm
unall. solid1.0 - 2.4 mm
Aluminum1.0 - 2.4 mm
Cored Wire1.2 - 2.4 mm


Part Numbers: PSF self-cooled
PSF™ 505 Torch, 4.5m0458401885
PSF™ 505 Torch, 3m0458401884
PSF 250, 3 m0368100882
PSF 250, 4.5 m0368100883
PSF 405 RS3, 4.5 m0458401893
PSF 305, 3 m0458401880
PSF 305, 4.5 m0458401881

RS3 = remote control 3-steps
